Description

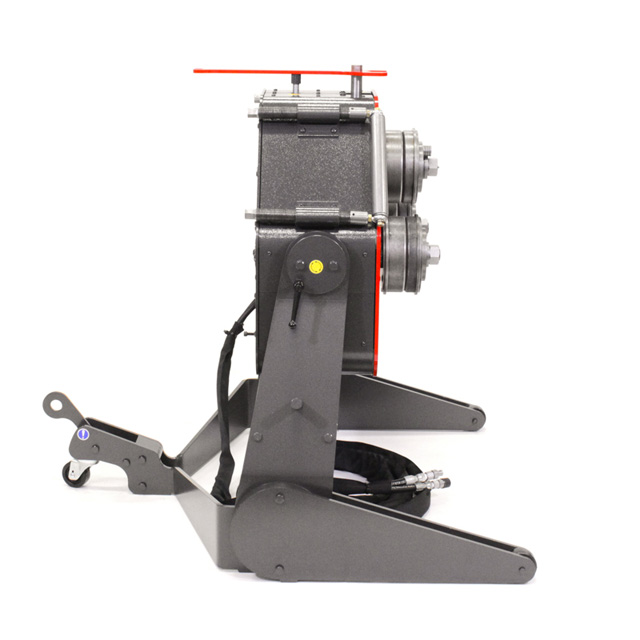

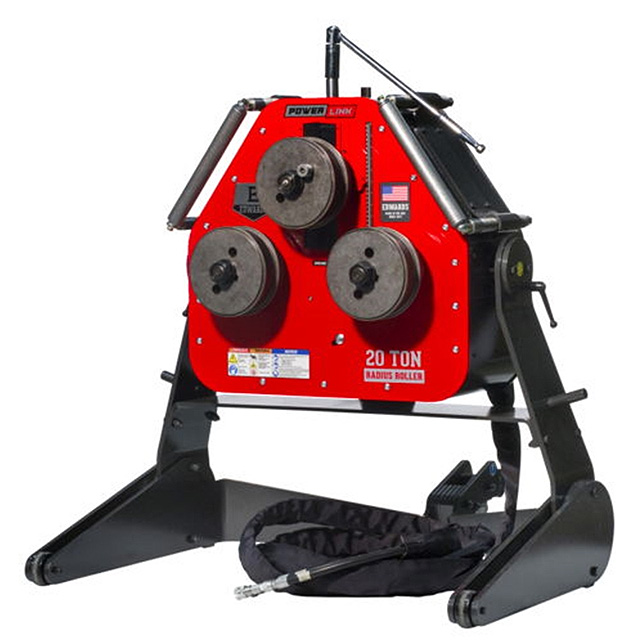

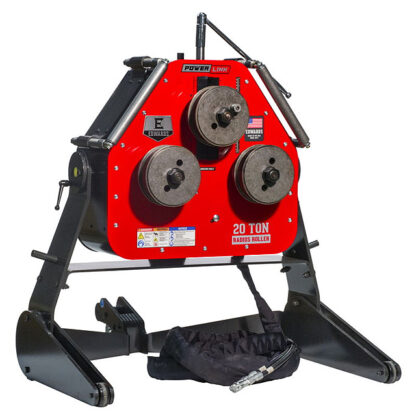

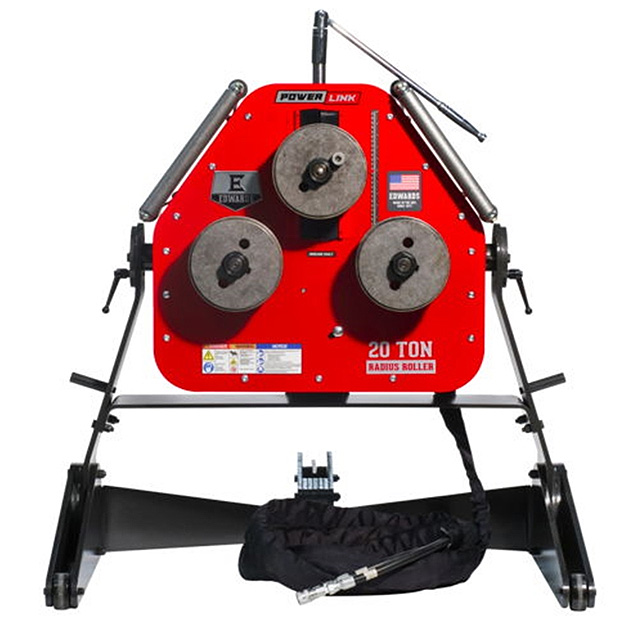

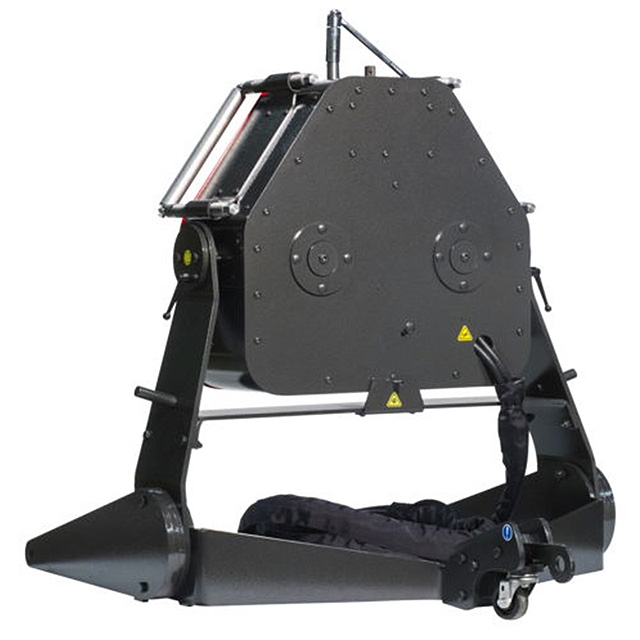

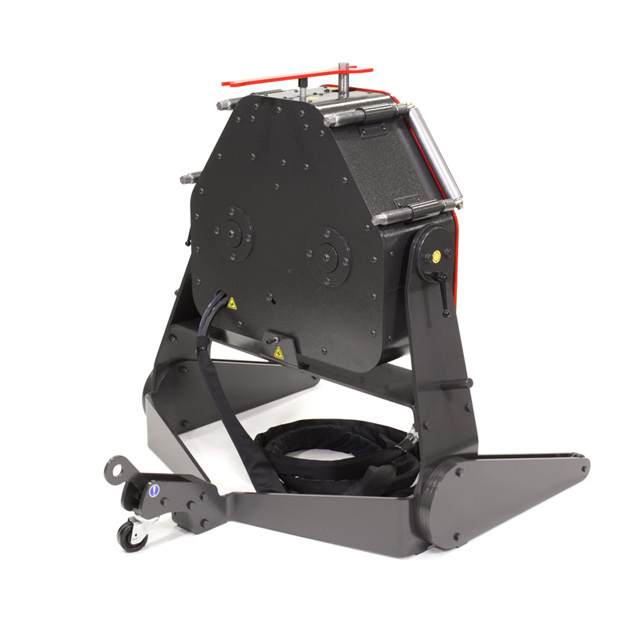

- Radius Roller is another essential quick-connect hydraulic tool. Plug it into your Edwards Ironworker with the Hydraulic Accessory Pack or power it separately with an Edwards Porta-Power to greatly expand your fabrication capabilities. Designed for medium to heavy material, the Edwards Radius Roller powers through your job quickly and accurately. The variable speed hydraulic drive allows you to dial in the appropriate speed for various materials. Quickly change the orientation from vertical for smaller projects to horizontal for those larger, heavier jobs.
- MADE IN THE USA
OPTIONAL MODELS:
ED9-HAT5000: Radius Roller 3 Phase, 230 Volt: $8,575.20
ED9-HAT5010: Radius Roller and Portable Power Unit 1 Phase, 230 Volt: $12,719.20
ED9-HAT5020: Radius Roller and Portable Power Unit 3 Phase, 230 Volt: $11,975.20
ED9-HAT5030: Radius Roller and Portable Power Unit 3 Phase, 460 Volt: $12,719.20
SPECIFICATIONS:
|
MATERIAL CAPACITIES
|
Round Pipe
|
2″ Schedule 40
|
|
|
Round Tube
|
2-1/2″ (.095″)
|
||
|
Square Tube
|
2″ (.120″)
|
||
|
Solid Round
|
1.375″
|
||
|
Flat Bar – Easy Way
|
3″ (3.50″)
|
||
|
Flat Bar – Hard Way
|
2.25″ (3.75″)
|
||
|
Angle Iron
|
2″ (.250″)
|
||
|
GENERAL SPECIFICATIONS
|
Shaft Diameter
|
2.0″
|
|
|
Shaft Center Distance
|
14.12″
|
||
|
GENERAL SPECIFICATIONS EDWARDS IRONWORKER/
PORTA-POWER |
Motor
|
Standard
|
5 HP 3~ 208 V or 230 V
1725 RPM 14 A |
|
Optional
|
5 HP 3~ 460 V, 1725 RPM 7 A
5 HP 3~ 575 V, 1725 RPM 6 A 5 HP 1~ 230 V, 1725 RPM 23 A |
||
|
Hydraulic Pump
|
3-1/2 GPM – 1 Stage
|
||
|
Valve Pressure
|
2750 PSI
|
||
|
Reservoir
|
7 Gallons
|
||
|
GENERAL
|
Dimensions
|
Height
|
43″
|
|
Width
|
45″
|
||
|
Depth
|
49″
|
||
|
Shipping Weight
|
950 lbs.
|
||
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
OPTIONAL ITEMS – CALL FOR PRICE:
Bend-Tech Software
