Description
- Save time and money forming TDF flanges the easy way.

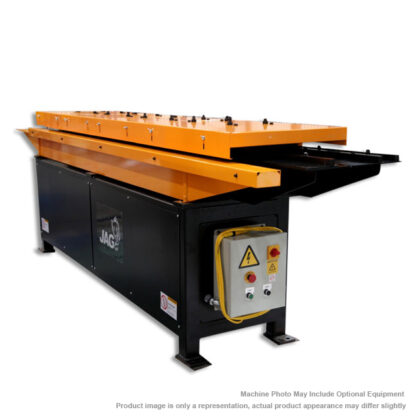

- The 16-Station TDF Rollformer unitizes steel construction, high yield and tensile strength shafts, and “off the shelf” ball bearings.
- Other key features and benefits include:
- Heavy-duty Mod4 (6 pitch) gears.
- Extended roll shafts for mounting auxiliary rolls (one side outboard only).
- Optional tooling sets available for outboard mounting.
- All steel forming head, hardened steel infeed guide, and hardened steel forming rolls mounted on turned and ground spindles.
- No adjustments necessary when going from 26 gauge to 18 gauge material.
- Includes Snap Flange Feature.
- Comes standard with short parts feeder for 6 inch (152 mm) minimum lengths (requires no manual adjustment or removal of machine guards when running short parts).
- Optional rolls available for TDF clip production (20 gauge).
SPECIFICATIONS:
Capacity: 16 – 26 gauge (0.55 – 1.31 mm)
Depth of Pocket: 1-11/16” (42.9 mm)
Speed: 50 fpm (15.2 m/min)
Motor: 7-1/2 HP (5.5 kw) – 230 volts,
60 cycle, 3 phase, AC, 1800 RPM
Dimensions: 141”L x 33W” x 46”H (3570 x 830 x 1150 mm)
Weight: 2,420 lbs. (1,100 kg)
OPTIONAL ITEMS:
Optional TDF Clip Roll Set: $CALL
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
