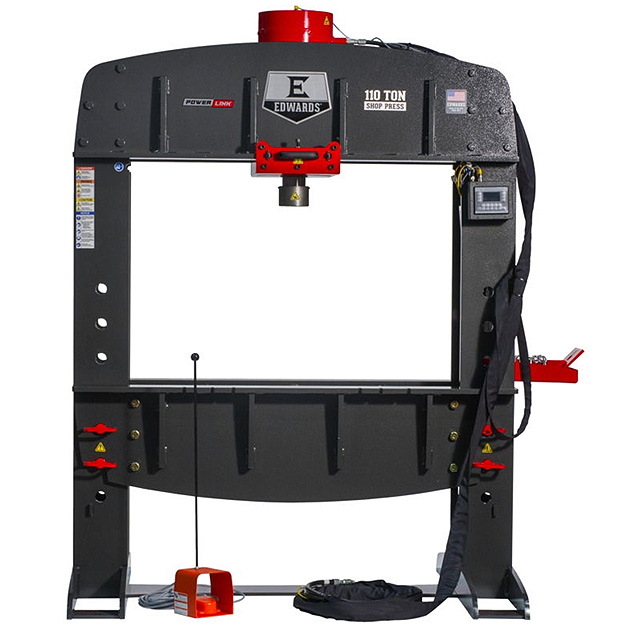

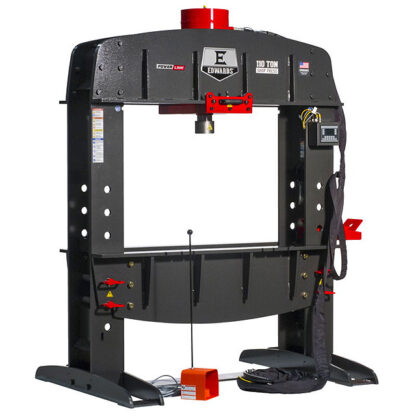

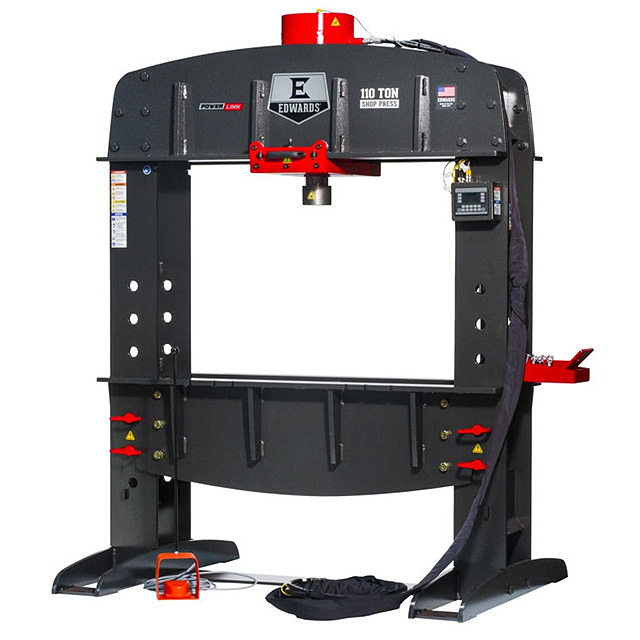

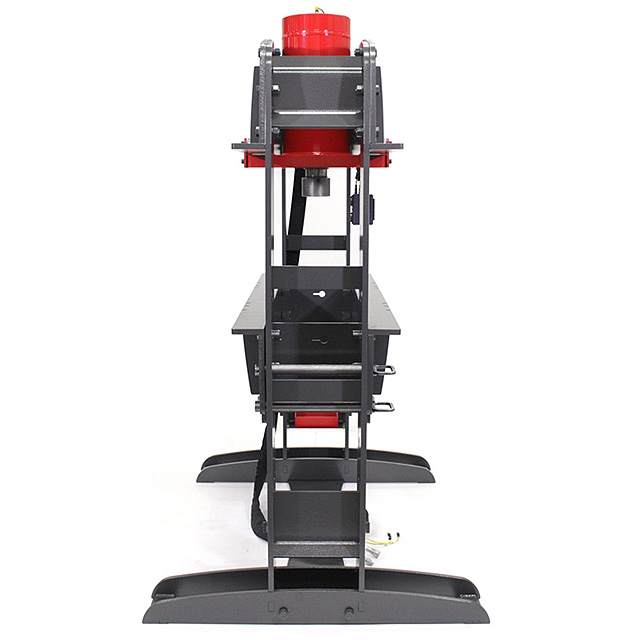

EDWARDS ED9-HAT9050 110 Ton Shop Press w/Programmable Logic Control

$21,859.00

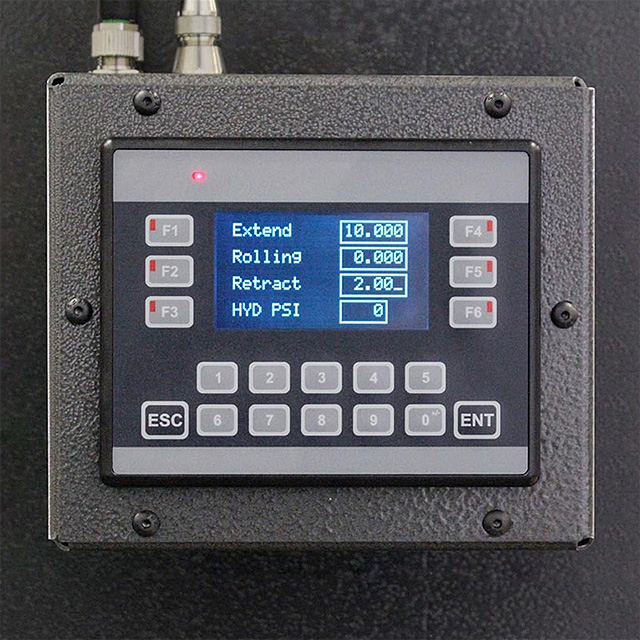

Improved Productivity with PLC (Programmable Logic Control): Product Logic Control improves press accuracy with precision pressure and increased efficiency with automatic returns creating shorter cycle times. Up to 50% time savings. Set your pressure with adjustable PSI. The magnetic base allows for easy mounting of the PLC anywhere on the machine. A perfect fit for shops that produce repeatable pieces that cannot justify a fully automatic press brake.

SKU: ED9-HAT9050 Categories: , Tags: , , ,
Edwards Ironworkers

Description

  • Improved Productivity with PLC (Programmable Logic Control): Product Logic Control improves press accuracy with precision pressure and increased efficiency with automatic returns creating shorter cycle times. Up to 50% time savings. Set your pressure with adjustable PSI. The magnetic base allows for easy mounting of the PLC anywhere on the machine. A perfect fit for shops that produce repeatable pieces that cannot justify a fully automatic press brake

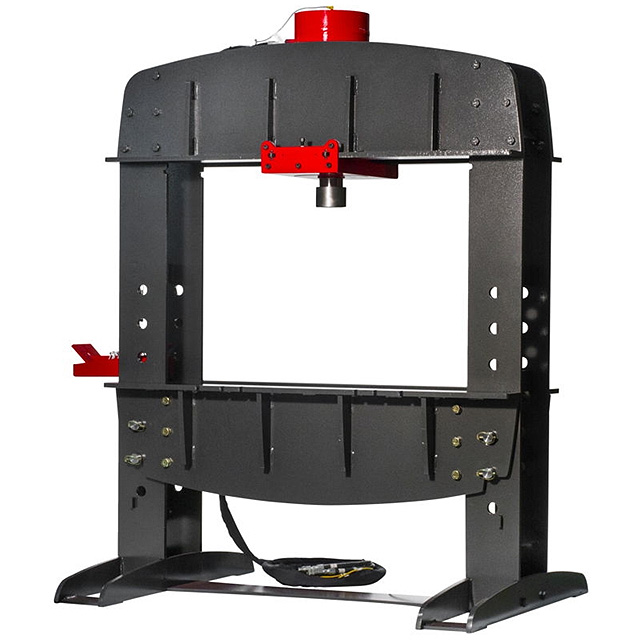

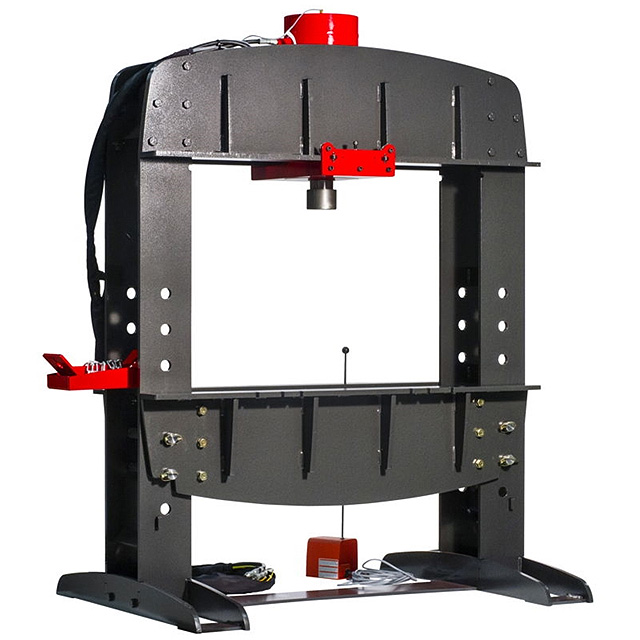

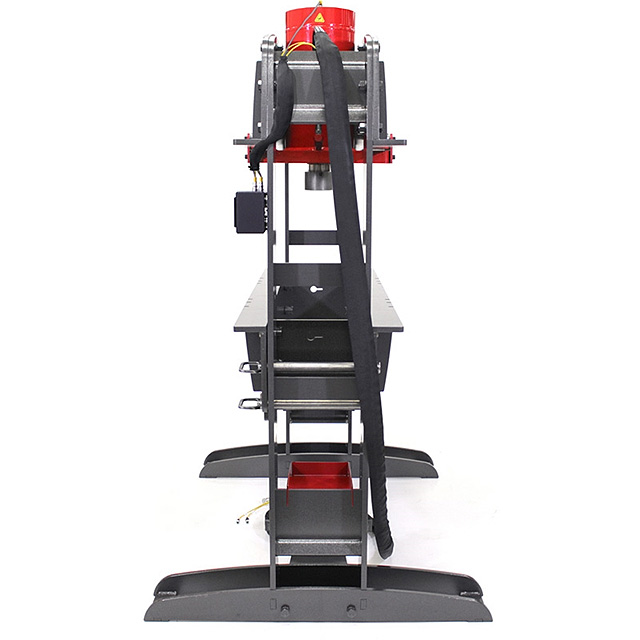

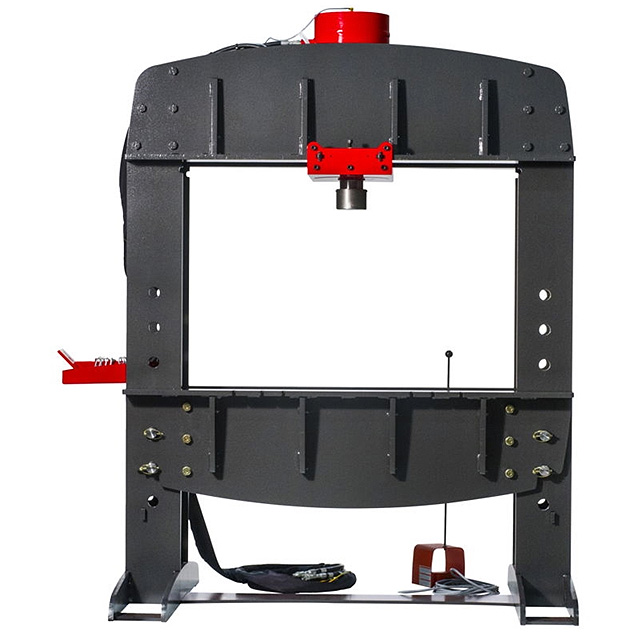

  • Our 110 Ton Shop Press has the capacity to meet your shop’s needs. Smooth & precise, heavy-duty and versatile, our unique, open side design allows for material to pass through. Power it up with an Edwards Ironworker with factory installed PowerLink System or an Edwards Portable Power Unit
  • With the Press Brake Tooling, your Shop Press easily becomes a brake. Check out our bump-die tooling, the 6-Piece Press Tooling Set and the Press Brake Back Gauge
  • Heavy-Duty 3/4″ Steel Construction
  • Easy-to-Use Foot/Jog Controls
  • Versatile Rolling Cylinder
  • Working Area of 48″ x 37-1/2″
  • Pressure Gauge
  • Quick-Disconnect Hoses
  • Hydraulic-Assist Table Height Adjustment
  • 2 V-Blocks Included
  • MADE IN USA

SPECIFICATIONS:
GENERAL SPECIFICATIONS
Rating: 110 Tons
Cylinder: 4″ Ram
Stroke: 12-1/4″

EDWARDS PORTA POWER**
Electric Motor Standard: 5 HP 3~ 208V or 230V, 1725 RPM 14 A
Electric Motor Options:
5 HP 3~ 460V, 1725 RPM 7A
5 HP 1~ 230V, 1725 RPM 23A

Hydraulic Pump: 3-1/2 GPM – 1 Stage
Valve Pressure: 2750 PSI
Reservoir: 7 gallons

DIMENSIONS
Height: 85.3″
Width: 64″
Depth: 48″
Shipping Weight: 2,690 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

OPTIONAL ITEMS – CALL FOR PRICE:
PLC (Programmable Logic Control)
Press Brake Tooling
6 Piece Press Tooling
Press Brake Back Gauge
Other Tooling Accessories

OPTIONAL ATTACHMENTS – PORTA POWER
ED9-HAT001: Portable Power Unit 1 Phase, 230 Volt
ED9-HAT002: Portable Power Unit 3 Phase, 230 Volt
ED9-HAT003: Portable Power Unit 3 Phase, 380 Volt 50HZ
ED9-HAT004: Portable Power Unit 3 Phase, 460 Volt
ED9-HAT005: Portable Power Unit 3 Phase, 575 Volt
ED9-HAT006: Portable Power Unit 3 Phase, 208 Volt

OPTIONAL ATTACHMENTS – PRESS BRAKE TOOLING
ED9-PRB12: Press Brake Tooling 12″ Press Brake

OPTIONAL ATTACHMENTS – ACCESSORY MACHINES
ED9-HAT1000: 10 Ton Tube/Pipe Bender
ED9-HAT5000: Radius Roller

Additional information

Weight 2690 lbs
Dimensions 48 × 64 × 85.3 in
