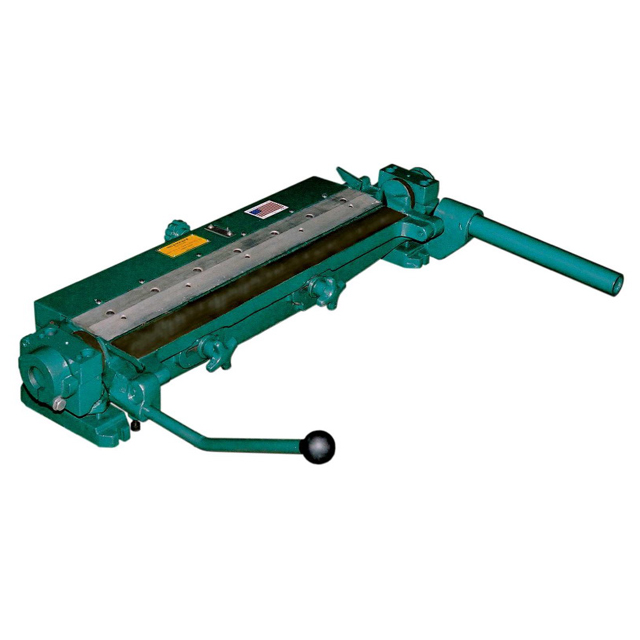

TIN KNOCKER TK30 Manual Bar Folder

$4,370.00

TIN KNOCKER TK 30 Manual Bar Folder has a max bend length of 30 inches and mild steel capacity of 22 gauge. Uses one motion to clamp and fold to desired angle. Easy to adjust internal back gauge allows for quick flange width selection.

SKU: TKBARFOLD Categories: , Tags: ,
Tinknocker

Description

  • An affordable, ever versatile 30″ barfolder. The TK No. 30 Barfolder uses one motion to clamp and fold to desired angle. Easy to adjust internal back gauge allows for quick flange width selection. If you thought you could only afford a used barfolder, think again. You can afford and will love your TK No. 30 Barfolder.

SPECIFICATIONS:
Capacity (Mild Steel): 22 gauge
Max. Bend Length: 30″ (762mm)
Flange Width Range: 1/8″ – 1″
Dimensions: 48″ x 20″ x 13″
Approx. Weight: 334 lbs.

OPTIONAL ITEMS:
Stand: $195

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Additional information

Weight 334 lbs
Dimensions 48 × 20 × 13 in

Brand

Tin Knocker

Tin Knocker’s sheet metal fabrication machines are designed with industrial quality as affordable sheet metal working machinery for American contractors including HVAC, Insulation, Sign, Roofing, and more.
