Description

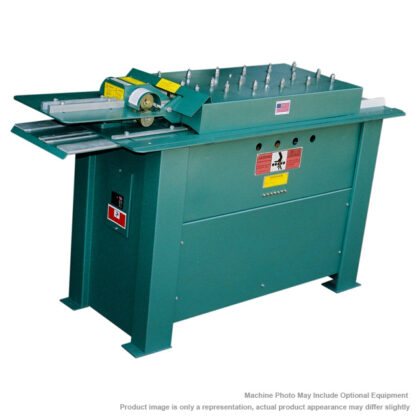

- Poly-functional machine
- Configured with S & Drive down the center and choice of either Male & Female Button Lock or 3 in 1 and Pittsburgh Rolls,
- Comes standard with S & Drive Slitter to turn scrap into useful product.
- Turns scrap metal into usable drives.
- Let this machine pay for itself-and fast!
- A great connector machine and more!
- Slits & Feeds S & Drive Rolls
SPECIFICATIONS:
|
Capacity:
|
Drive Cleats
|
20-26 Ga
|
|
S Cleats
|
22-28 Ga., 20-28 Ga.
|
|
|
Right Angle Flange
|
22-26 Ga.
|
|
|
Standing Seam
|
22-26 Ga.
|
|
|
Tee Connection:
|
22-26 Ga.
|
|
|
Male & Female
Button Lock: |
20-24 Ga.
|
|
|
Motor:
|
5 HP (1,800 RPM) 230 Volt, 3 Phase, 60 Hz
|
|
|
“S” Cleat Width:
|
1-1/16″
|
|
|
Drive Cleat Width:
|
1-1/18″
|
|
|
Approx. Speed:
|
100 FPM
|
|
|
Approx. Weight:
|
1,280 lbs
|
|
|
Dimensions:
|
74″ x 30″ x 50″
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
