TENNSMITH Model 52 4 ft x 16 ga. Foot-Squaring Shear

$3,845.00

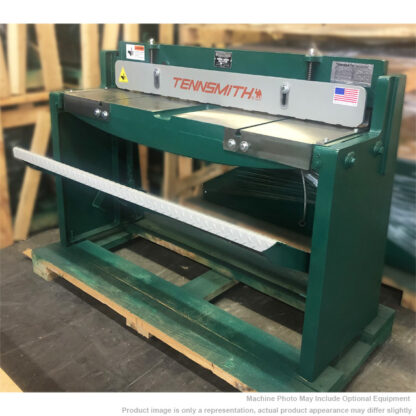

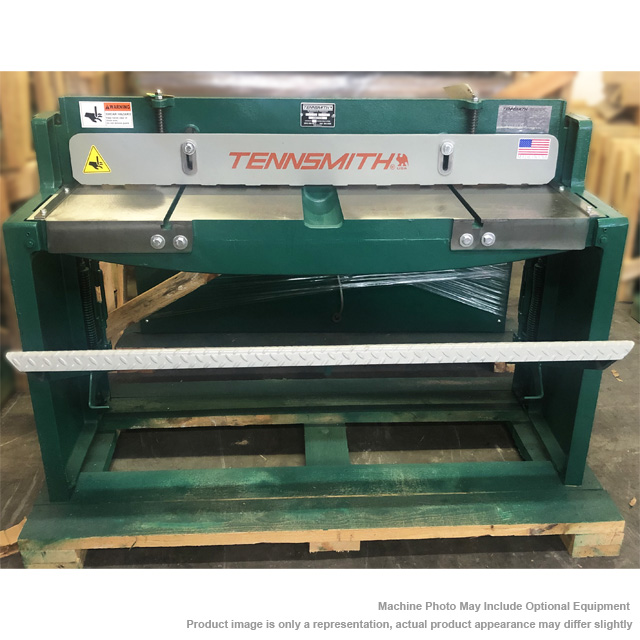

TENNSMITH MODEL 52 is a Foot-Squaring Shear with a maximum shearing length of 52-1/4 inches and mild steel capacity of 16 gauge. The lower shear blade is bed adjusting and the upper blade is adjustable by means of a truss bar on the cutter head. The spring-activated hold down feet clamp the work piece securely in place and are easily adjustable to compensate holding pressure for light or heavy gauge material. The standard, double-locking back gauge, which features embossed scales and vernier wheels for fine adjustment, gives highly accurate readings.

SKU: 52 Categories: , Tags: , ,

Description

  • MADE IN USA

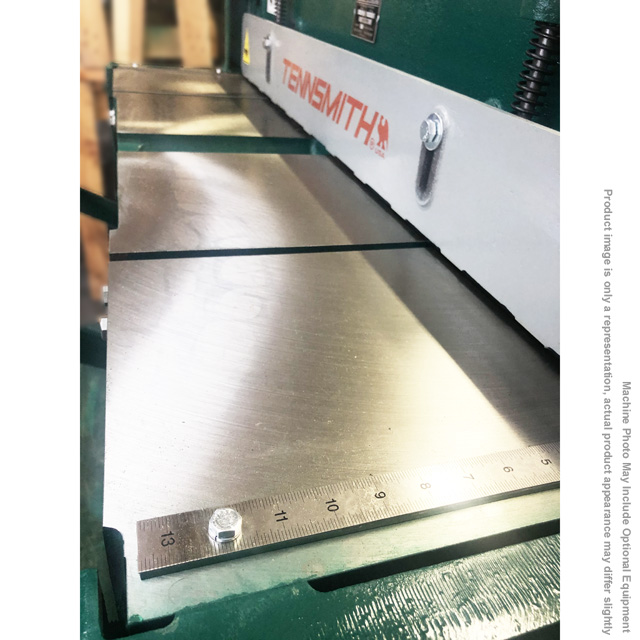

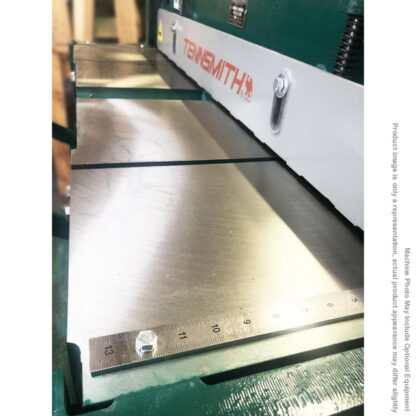

  • TENNSMITH’S squaring shears offer precision shearing and rugged construction at an affordable price. The shear frame, bed and cutter head assemblies are constructed of heavy-duty cast iron. The shear bed is machined and then surface ground to precision tolerances to ensure an accurate working surface.
  • These shears feature triaction, high-carbon/high chromium (HCHC) steel blades. Both the upper and lower blades have a 2 degree edge relief and the lower blade has an additional 1-degree face relief for maximum material penetration with minimum effort. Triaction blades help prevent material movement while shearing, prolonging blade life.

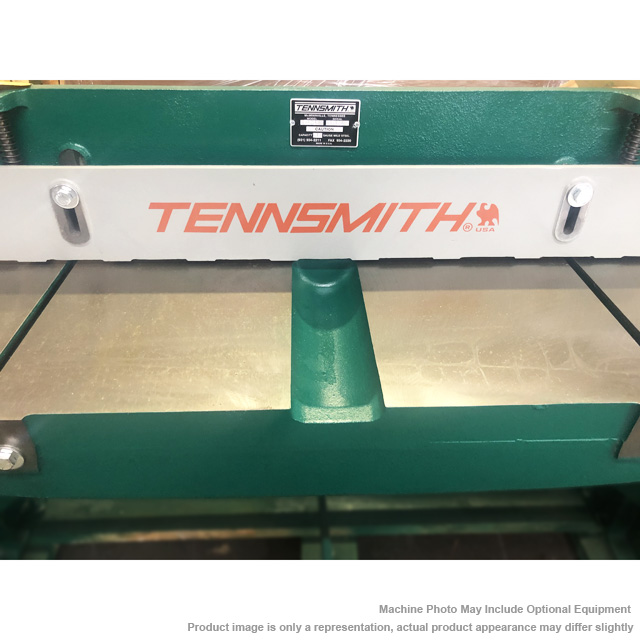

  • TENNSMITH shears have the most complete adjustment features of any sheet metal shear on the market. The lower shear blade is bed adjusting and the upper blade is adjustable by means of a truss bar on the cutter head. The spring-activated hold down feet clamp the work piece securely in place and are easily adjustable to compensate holding pressure for light or heavy gauge material. There is ample clearance between the hold down feet and shear blades to allow good operator vision for line-of-sight cutting. The standard, double-locking back gauge, which features embossed scales and vernier wheels for fine adjustment, gives highly accurate readings.

STANDARD EQUIPMENT:

  • Back gauge
  • Front extension arms with stop
  • Bevel gauge
  • Graduated side scales

SPECIFICATIONS:
Maximum shearing capacity, Mild Steel: 16 gauge/1.6mm
Maximum shearing capacity, Stainless Steel: 20 gauge/1.0mm
Maximum cutting length: 52-1/4″ / 1,327mm
Back gauge range: 30″ / 762mm
Front gauge range: 37″ / 940mm
Floor space, gauges in position: 60″ x 80″
Dimensions, less gauges, LxWxH: 61″ x 36″ x 42″
Shipping Weight: 950 lbs. / 431kg

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited

Additional information

Weight 950 lbs
Dimensions 61 × 36 × 42 in
