Description

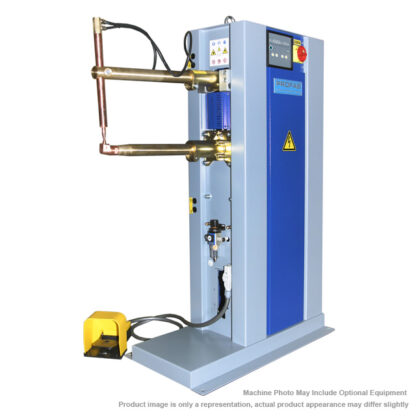

- Air operated rocker arm resistance spotwelder with electric foot pedal control
- Arms adjust 15″ to 29″
- Uses standard Morse #1 tapered tips
- Water-cooled transformer, arms and tip holders
- Air regulator with moisture trap
- 220 or 440 volt 1PH electrics (must specify)
- Dimensions: 40″ L x 12″ W x 50″ H
- Weight: 300 lbs. (425 lbs. crated)
- 25 KVA or 35 KVA Capacity: 2 pcs 14 gauge
- Custom lower arm design allows welding tubes as small as 2″ diameter and no hoses to interfere with parts
SPECIFICATIONS:
Capacity: 25 KVA or 35 KVA Capacity: 2 pcs 14 gauge
Voltage: 220 Volts Single Phase 80 Amp, 440 Volts Single Phase 40 Amp (must specify)
Recirculator: None, ProCool II Coolant Recirculator
Dimensions: 40″ x 12″ x 50″
Weight: 300 lbs. (425 lbs. crated)
OPTIONAL ITEMS:
Optional ProCool II coolant recirculator available (call for price)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
