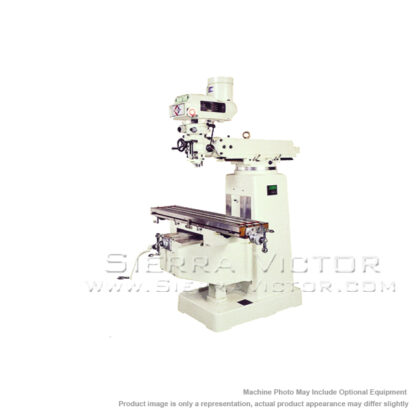

MANFORD SP-460VS Super Precision Vertical Turret Milling Machine

$12,600.00

SKU: SP-460VS Category:
Manford Milling Machines

Description

MANFORD 10″ x 54″ Super Precision Vertical Turret Milling Machine SP-460VS

  • 10 X 54” Tablesp-150vs, long saddle & box way on Y
  • Hardened & Ground Table with Ground T-Slot
  • 3HP Spindle Motor, variable speed
  • R8 (or NST#30) Spindle Material Scm415(SAE4115)Hardened & Ground.
  • Bearing support to the motor shaft
  • Licensed Meehanite Casting
  • Unique rigid design on spindle auto-feed, spline design on the pinion & clutch support
  • Turcite-B On X&Y Ways, Slideways and Gibs.
  • Hardened & Ground X&Y Slideways.
  • Electroless Nickel-Phosphorus Process On X&Y leadscrew with hardness 35 HRC.
  • Leadscrew nut made from PBC2, phosphor bronze
  • Highly Improved Vari-Speed Head.
  • Rubber chip cover (front & rear )
  • 1-1/2”(38mm) Diameter Lifting Screw.
  • Leveling Screw & Plate On Base.
  • Tool box & Tools
  • Rubber chip cover ( front & rear )
  • Machine made in Taiwan complete
  • Two-year warranty for all mechanical and one-year for electrical components
ITEM: 10″ x 54″ Super Precision Vertical Turret Milling Machine
MANUFACTURER: MANFORD
MODEL: SP-460VS

Item/Model: MANFORD SP-460VS

Additional information

Weight 3000 lbs

Brand

Manford

Manford machines include knee type vertical milling machines, bed type milling machines, CNC knee type milling machines, CNC tool room milling centers and machining centers.
Manford Milling Machines
