Description

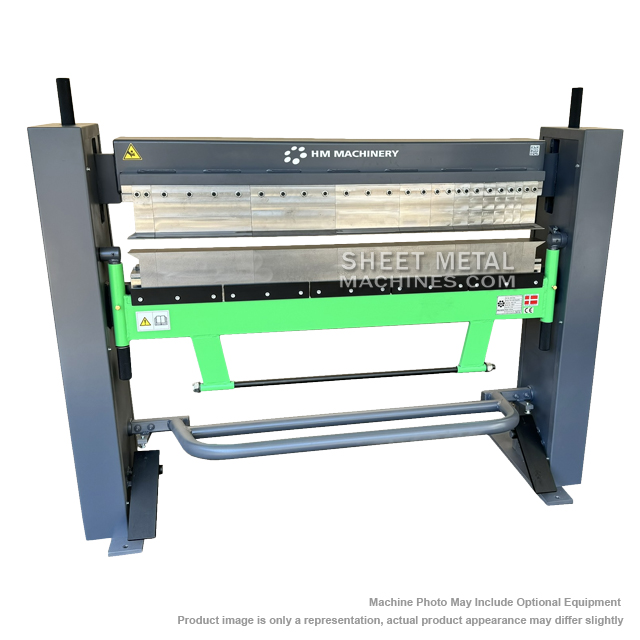

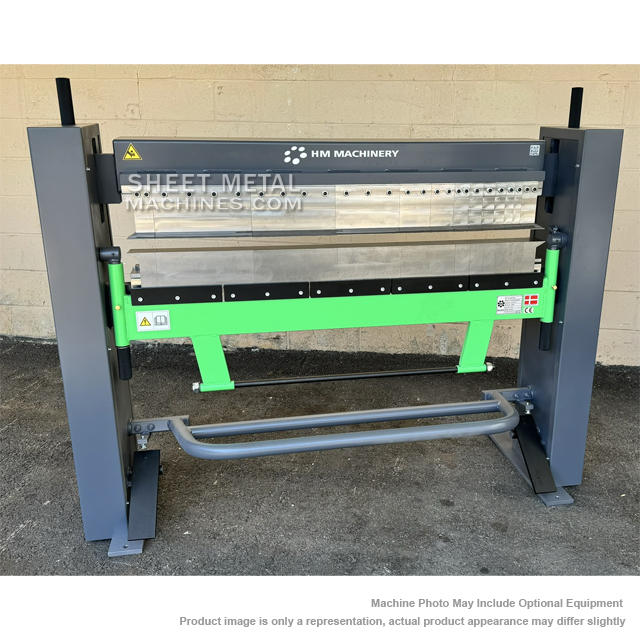

- The HS-3S-3SH Universal Manual Brake is a 50 inch, 12 gauge universal brake with segmented top and bottom bending surfaces. The HS-3S-3SH brake allows bending in inverse directions, enabling special profiles, such as boxes and pans, to be formed.
- HM Machinery Superflex machines are heavy duty, with fully welded construction. Foot-operated control of the clamp bar ensures extremely fast and simple operation and allows both hands to be kept free for adjustment of the material being folded.

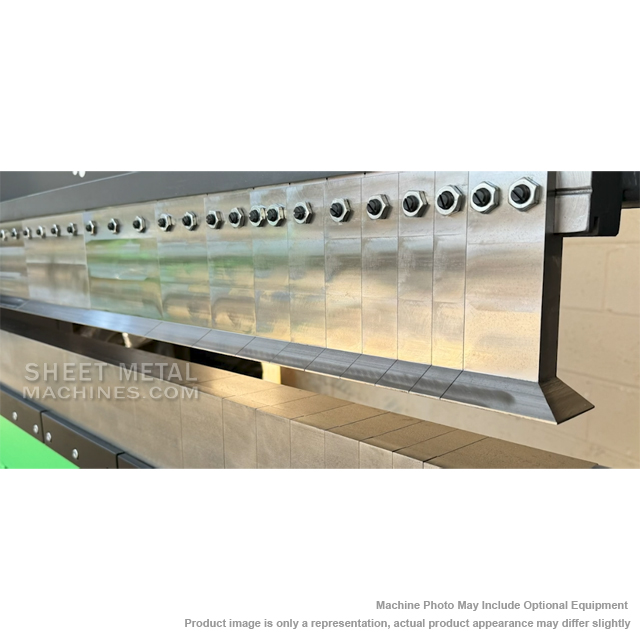

- Precision ground tooling creates straight, clean bends every time.

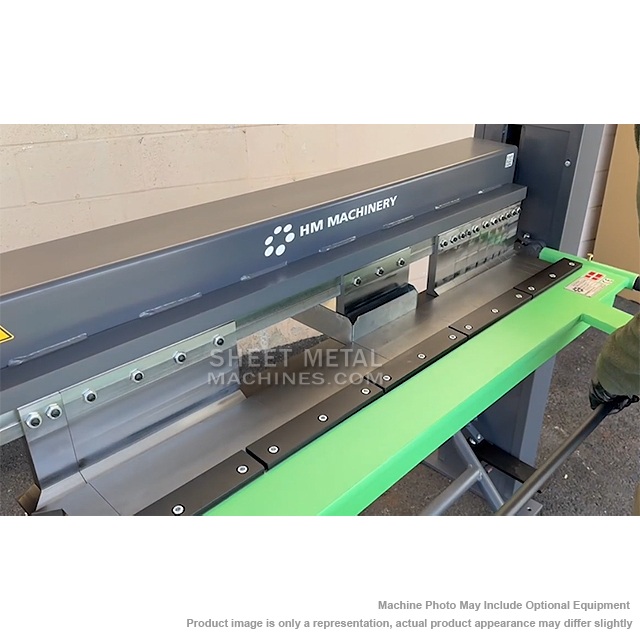

- Equipped with 13 segments of tooling on both top and bottom bending surfaces.

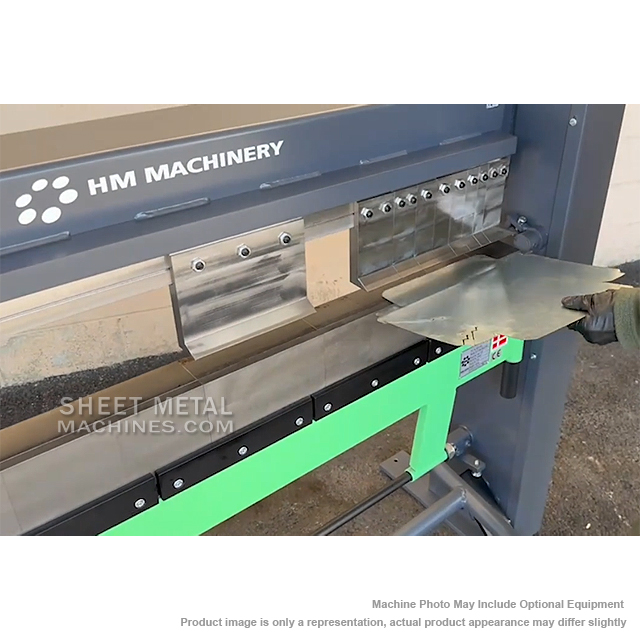

- Precise material positioning is made possible with a foot-operated clamping mechanism, allowing the operator to use both hands to handle and position material
- Repeat angle stop enables easily repeatable bends.
- The lift handle is ergonomically designed and operable from either side of the machine, allowing flexibility while fabricating complex shapes and profiles.
SPECIFICATIONS:
Maximum Bend Length: 50 in.
Maximum Material Capacity: 12 Gauge Mild Steel
Maximum Opening: 1.78 in.
Maximum Folding Angle: 100-150 Degrees (depending on profile)
Approx. Shipping Dimensions: 63 W x 36 D x 50 H in.
Approx. Shipping Weight: 915 lbs.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
