HE&M DC4060 Dual Column Bandsaw

Call for Price

SKU: DC4060 Category:
HE&M Saws

Description

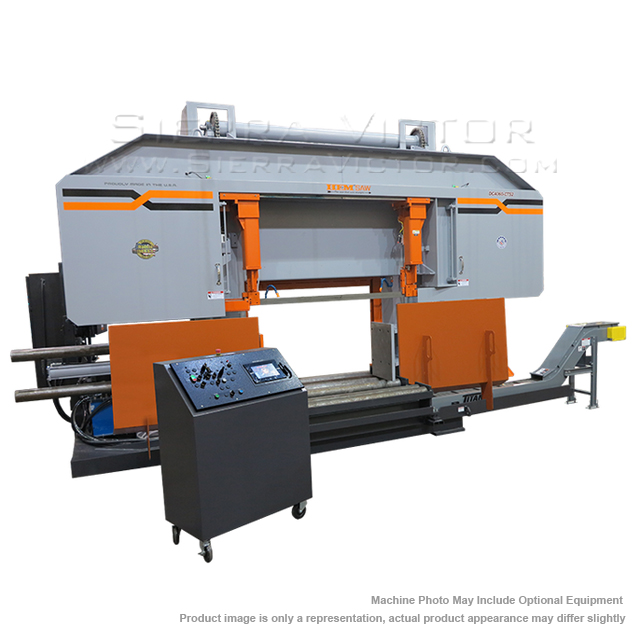

HE&M 40 inch Dual Column Bandsaw DC4060

  • The DC4060 is operated using a touch screen control in a pedestal mounted console and can be operated in manual or semi-automatic modes. Full stroking variable-pressure vise and powered guide arm are standard along with other features. Active Cut Watcher is standard and options are available.

STANDARD EQUIPMENT:

  • Pedestal Mounted Control Console w/ 9″ Touch Screen
  • Industrial IOT Ready – MTConnect Output
  • Servo Controlled Traverse (SCT)
  • 8′ Powered Base
  • Vise – Full Stroking Main
  • Adjustable Clamping Force
  • Carbide Blade Guides
  • Active “Cut Watcher®” System
  • Guide Arm – Powered
  • Variable Blade Speed w/ Readout on Touch Screen
  • Powered Blade Tension
  • Shadow Light System
  • Coolant System – Flood w/ Wash-Down Hose
  • Blade Brush
  • Two-Hand Operation Controls
  • Broken Blade Function
  • Automatic Blade Idle
  • Blade Change Interlock
  • Safety Guards
  • 220V/3PH or 440V/3PH Electrical Motor Requirement – This is Not a Dual Voltage Machine
ITEM: 40″ Dual Column Bandsaw
MANUFACTURER: HE&M
MODEL: DUAL COLUMN SERIES
PART# DC4060

Item/Model: HEM DC4060

Additional information

Weight 5500 lbs

Brand

HE&M

HE&M Saws offer more than 70 different models of production band saws for the metalworking industry including vertical, horizontal, plate and double column saws with capacities ranging from 12" x 12" to 60" x 60".
