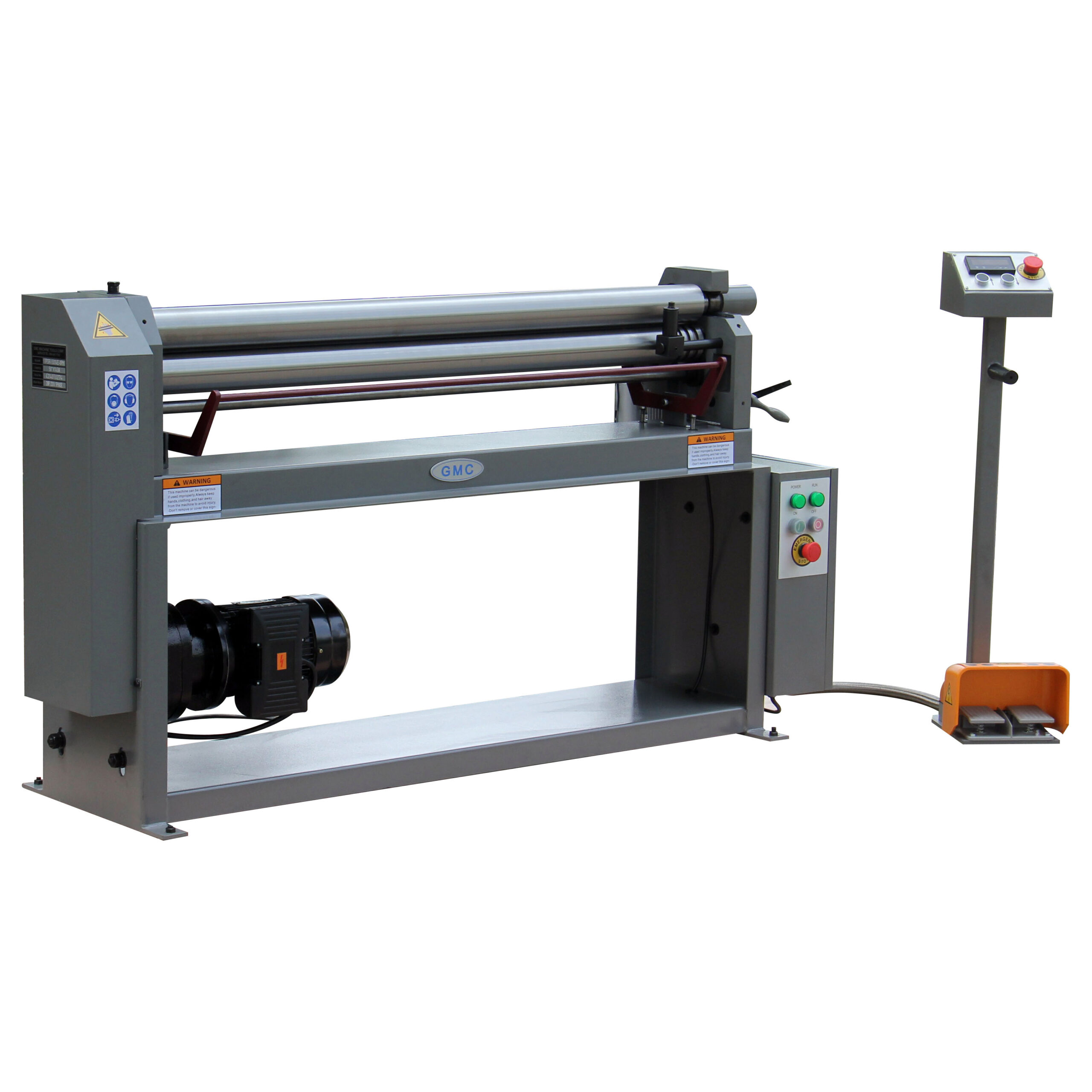

Description
- ISO 9001 certified
- One handle for pinch roll clamping
- One handwheel for bending roll up/down
- Cone attachment to make various size cone parts
- Heavy welded all steel construction for maximum rigidity
- Silence electrical motor
- Quick release top roller
- Two rolls are driven
- Precision ground rollers
- 1″ roll opening
- All three rolls are made of high grade alloy steel, hardened
- All rolls run forward and reverse
- Safety type removable foot pedal
- Overload protection and disconnect switch
- One year warranty for parts
STANDARD EQUIPMENT:
- Cone attachment
- Electrical cabinet
- Removable safety foot pedal
SPECIFICATIONS:
|
Rolling Capacity: Mild steel
|
50 in. x 16 Ga.
|
|
Rolling Capacity: Stainless Steel
|
50 in. x 20 Ga.
|
|
Rolling Capacity: Soft aluminum
|
50 in. x 11 Ga.
|
|
Min. thickness capacity
|
50 in. x 26 Ga.
|
|
Rolls size, length x diameter
|
50 x 3 in.
|
|
Min. roll bending diameter capacity
|
3-1/2 in.
|
|
Roll Speed
|
201 in. / min
|
|
Rolls opening
|
1/4 in.
|
|
(3) Grooves size
|
5/16 in., 3/8 in., 1/2 in.
|
|
Main Motor
|
1.5 HP, 220v, 1ph
|
|
Machine Dimensions
|
68 x 28 x 47 in.
|
|
Machine Weight
|
837 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
