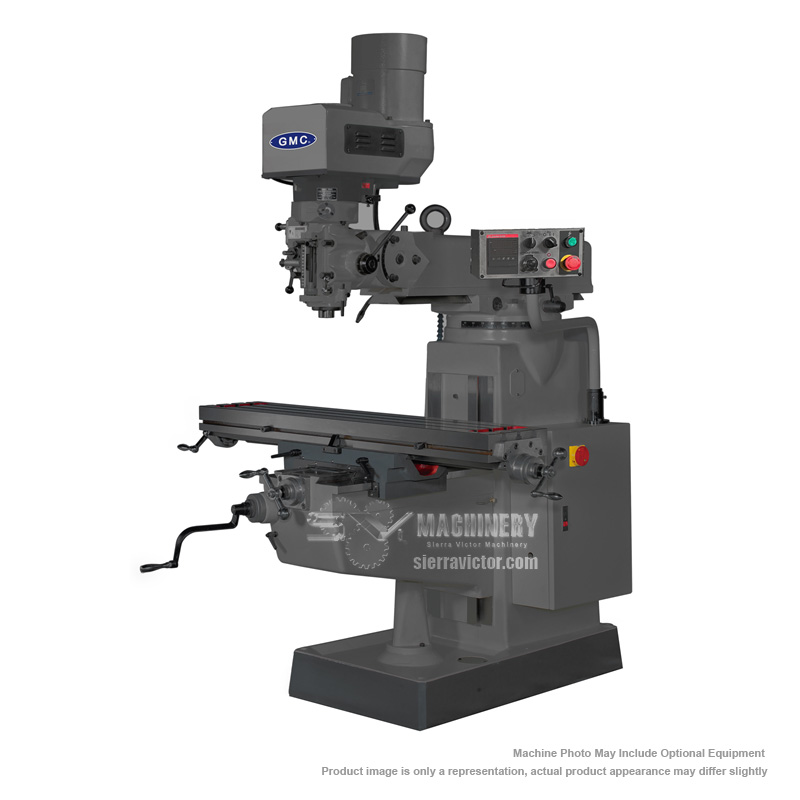

Description
- Made in Taiwan
- “Meehanite” casting
- Turcite “B” coating on X/Y ways like CNC mills
- ISO 9001 certified
- Inverter drive variable spindle speeds from 60-4,000 rpm
- Heavy duty 3 HP AC spindle motor with 5HP Delta inverter drive
- Heavy Duty high grade castings
- Hardened and ground ways, dovetail ways on X and Z , square ways on Y knee
- Hardened and ground table and Ground table T-slots
- Precision ground ACME Leadscrews
- Chromed ground quill ( spindle )
- Chromed dials
- Adjustable ways
- Hand brake on mill head
- Tilting and rotating head
- Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
- One shot lube system
- front and rear rubber chip guards, and (1) manual draw bar
- Tool box kit and leveling pads
- Power source 220V, 3-phase or 220V, 1-phase, either way works
- One year industrial warranty for parts
STANDARD EQUIPMENT:
- 2 axis CARMAR DRO installed on X and Y
- Table power feeds X and Y installed
- One shot lube
- Draw bar
- Rubber way covers
- Tool box
SPECIFICATIONS:
Table Size: 10 x 50 in.
Table Load Capacity: 727 lbs
X Axis Travel: 33 in.
X Travel with power feed: 28-3/4 in.
Y Axis Travel: 12-1/2 in.with power feed
Z Axis Travel: 16 in.
Max. distance spindle to table: 1-11/16 -17-5/8 in.
Max. distance spindle to column: 17-1/4 in.
Min. distance spindle to column: 8-1/4 in.
Spindle Taper Type: R-8
AC Spindle Motor: 3 HP, 220V, 3-phase or 1-phase
Variable spindle speeds: 60-4,000 rpm, Inverter Drive
Quill ( Spindle ) diameter: 3-3/8 in.
Quill ( Spindle ) travel: 5 in.
Ram travel: 17 in.
Table T-slot size: 5/8 in. x 3 slots
Head Swivel, Right to Left: 90 degree
Head Tilting: 45 degree
Machine Dimensions: 66 x 63 x 87 in.
Machine Weight, approx.: 2,880 lbs
OPTIONAL ITEMS – CALL FOR PRICE:
- Coolant System: $550.00
- COOL-PAN: Base coolant/chip drop pan: $450.00
- 6” angle lock vise with swivel base, part# 900-0021: $595.00
- 52 pcs clamping kit # # 900-0001, ½”-13NC stud, 5/8” T-slot: $295.00
- 11 pcs R8 collets set # 900-0007, 1/8” – 7/8”: $275
- Rotary phase converter,7HP,USA, for single phase conversion: $1,950.00
- Mill package # 3, incl 6” vise # 3900-2103, collet set # 3900-0007: $1,295.00
- Clamping Kit #3900-0001, 20pc Titanium end mill set #8000-0020, 29pc Titanium drill bit set #5000-0001
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
