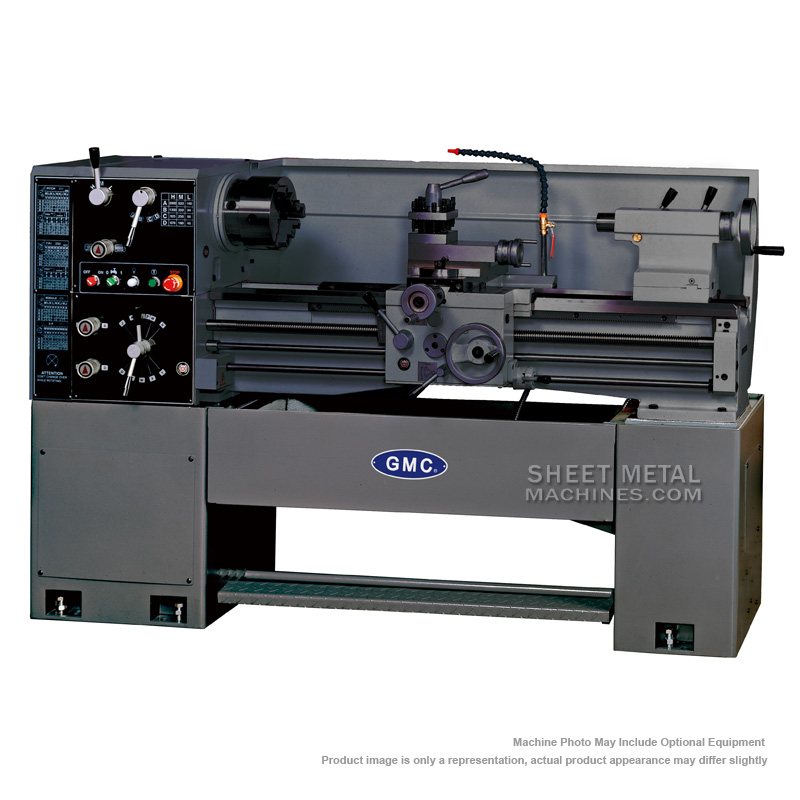

Description
SPECIFICATIONS:
|
Max. swing over bed
|
16 in.
|
|
Max. length of workpiece
|
40 in.
|
|
Max. swing over cross slide
|
9-1/2 in.
|
|
Max. Swing in gap
|
21-3/4 in.
|
|
Width of Bed
|
10 in.
|
|
Effective length in gap to spindle
|
8-1/2 in.
|
|
Effective length in gap to chuck jaws
|
3-1/2 in.
|
|
Spindle bore
|
2-1/16 in., D1-6
|
|
Taper of spindle center
|
M.T.# 6 (with MT6/MT4 sleeve)
|
|
Spindle speeds
|
50-2,000 rpm / 12 steps
|
|
Longitudinal feeds
|
0.0017 – 0.0242 IPR, 32 kinds
|
|
Cross feeds
|
0.00056 – 0.008 IPR, 32 kinds
|
|
Inch threads
|
56-4 TPI, 32 kinds
|
|
Metric threads
|
0.4-7.0 mm , 32 kinds
|
|
Module threads
|
0.4-7.0 mm, 32 kinds
|
|
Diametral pitch threads
|
8-120 DP , 32 kinds
|
|
Max. travel of top slide
|
3-9/16 in.
|
|
Max. travel of cross slide
|
8 in.
|
|
Spindle length w/o chuck
|
20 in.
|
|
Leadscrew length X TPI
|
1-1/4 in. x 4 TPI
|
|
Diameter of tailstock quill
|
2 in.
|
|
Max. travel of tailstock quill
|
4-3/8 in.
|
|
Taper of tailstock quill center
|
M.T. # 4
|
|
Main motor
|
5 HP, 220/440v, 3-phase
|
|
Amperage Draw
|
20Amp on 220V, 12Amp on 440V
|
|
Coolant pump motor
|
1/8 HP, 220V/440V, 3 phase
|
|
Oil for Headstock / Gear box / Apron
|
#30 weight machine oil, TEXACO regal R&O/100, 3 Gal.
|
|
Net weight, approx.
|
3,230 lbs.
|
|
Overall dimensions, LxWxH
|
80 x 38 x 57 in.
|
|
Machine Shipping Dimensions LWH
|
82 x 34 x 60 in.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR – Parts
- Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality
- ISO 9001 certified
- Large spindle bore 2-3/16”
- Heavy Duty spindle D1-6
- High Tensile cast iron FC25
- Heavy Duty guideway width 10”
- Heavy Duty main motor 5HP
- 12 spindle speeds from 50-2,000 rpm
- 32 kinds of inch threads, and 32 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- 5 years industrial warranty for parts for all Taiwan lathes
- DISCLAIMER: This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
- Use 15HP rotary phase converter
STANDARD ACCESSORIES:
- Free CARMAR DRO installed
- 8” 3-jaw chuck with one set of reversible jaws
- 14” Face plate
- 1-3/16”-5” steady rest with roller jaws
- 3” follow rest
- Removable gap
- 4-way tools post
- 4-position carriage stop
- Foot brake
- LED Work light
- coolant system
- Full length splash guard
- (2) dead centers and (1) reducing sleeve MT6/MT4
- Thread chasing dial
- Tool box and leveling pads
Optional Items:
|
PART #
|
ITEM
|
PRICE
|
|
5C-1660AT
|
5-C Hand lever type collet closer, free install
|
$1,850.00
|
|
3900-0014
|
33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth
|
$595.00
|
|
—
|
Taper Attachment, Installed
|
$1,750.00
|
|
3900-5230
|
6pc ALORIS type QC tool post set
|
$895.00
|
|
3900-5004
|
Live Center
|
$195.00
|
|
2003-0004
|
5pc Indexable carbide turning set
|
$69.00
|
|
2003-0014
|
3/8″ carbide insert
|
$12.00/ea
|
|
GMCLSUP101
|
Lathe package #1 includes:
5pc indexable carbide turning set# 2003-0004, 1/2 drill chuck # 3700-0102, Chuck arbor # 3700-0157 and 29pc Titanium drill bit set #5000-0001T |
$695.00
|
