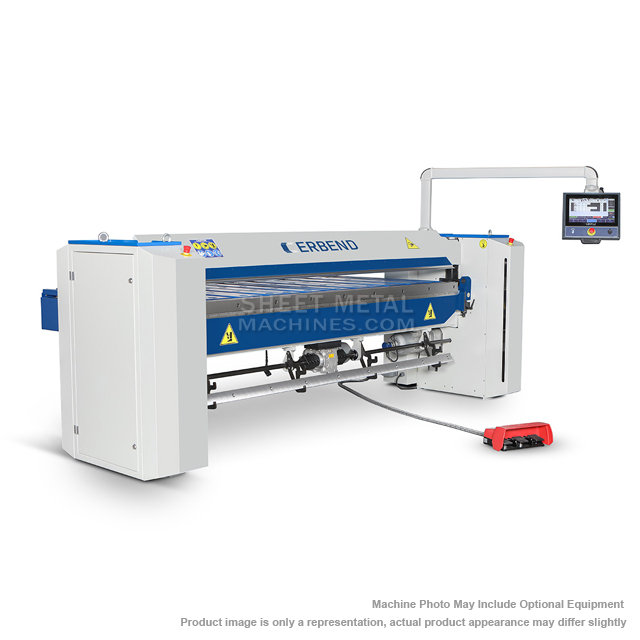

Description
- 29.5 in. servo backgauge with feather fingers
- Erfold basic cnc LBL software on 15″ touchscreen controller
- 20°/R1 sharpnose tool on clamping beam

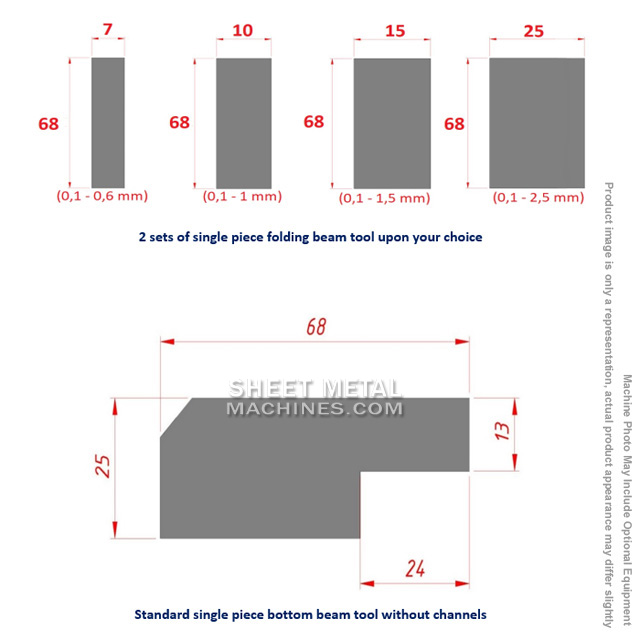

- 0.39 and 0.98 in. wide folding tools as 2 sets
- Solid lower beam without channels
- Manual folding beam adjustment
- Vertical front light barriers
STANDART SPECS AND ACCESSORIES:

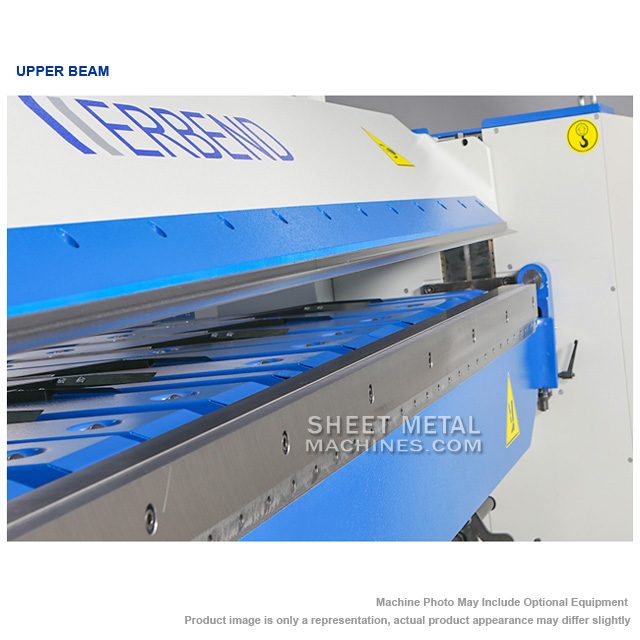

- UPPER BEAM

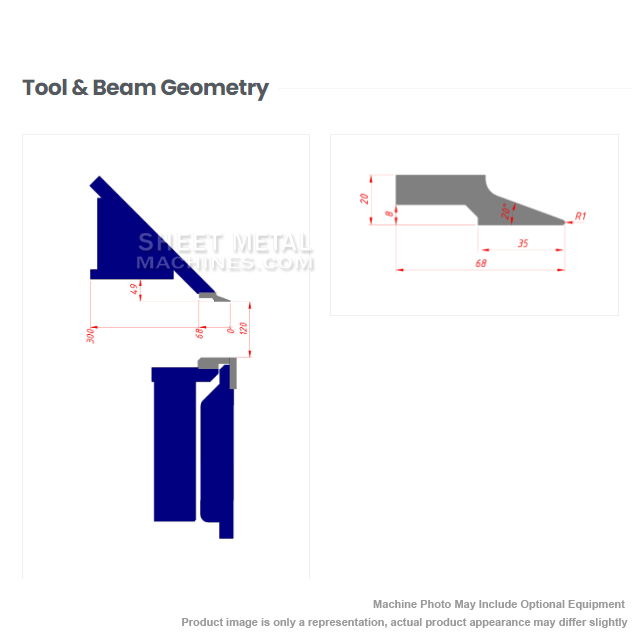

- Clamping beam with 4.33 inch opening height without tools and 45° beam geometry
- Thanks to fast eccentric system, clamping speed is increased up to max 3.54 in./sec
- Thanks to its brass and oil-free friction plates on the linear guides, you can work for years without any lubrication or maintenance
- Also thanks to the protective bellows, no dirt or dust is allowed in the swivel parts of this axis

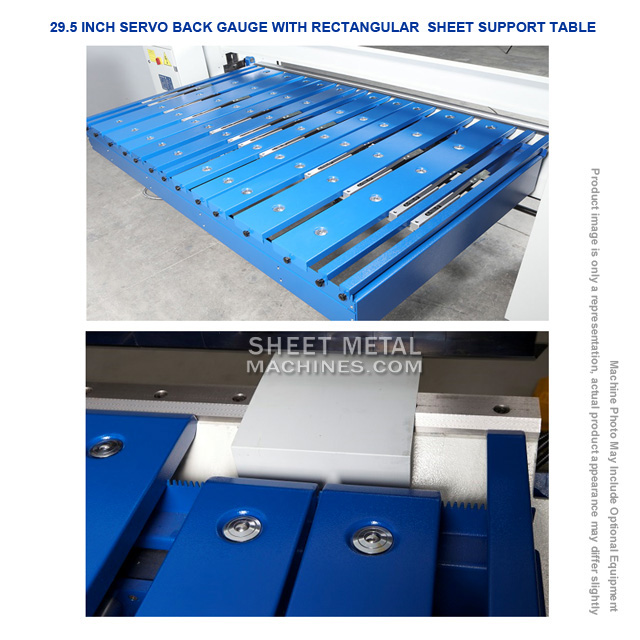

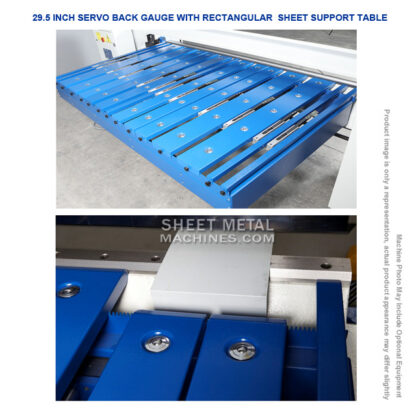

- 29.5 INCH SERVO BACK GAUGE WITH RECTANGULAR SHEET SUPPORT TABLE
- 29.5 inch servo driven back gauge system with feather grooves only
- 29.5 inch long rectangular sheet support table with stainless ball-casters
- Sliders can be pulled back to create space for down flanges at the back of the bottom tool

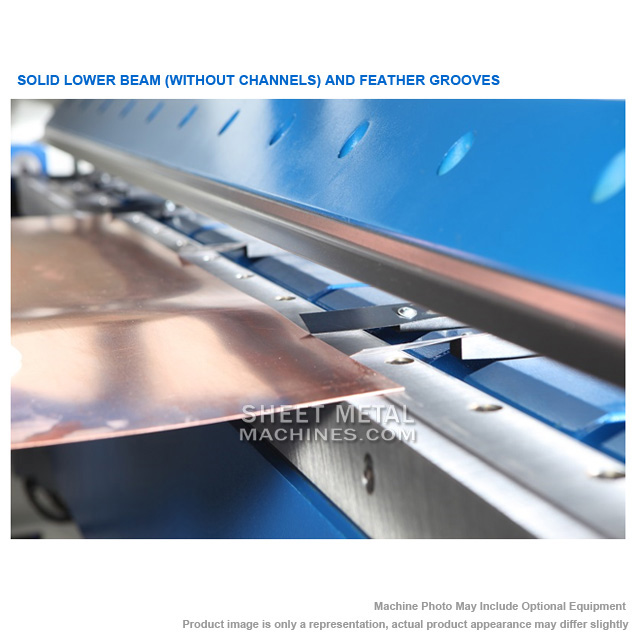

- SOLID LOWER BEAM (WITHOUT CHANNELS) AND FEATHER GROOVES
- To avoid unwanted scratches and cracks on the painted sheets caused by lower beam channels, we can build the lower beam without channel and also with special design gauging arms produced by flexible feather steel (0,5 mm thick) so that the arms can approach until the end of the lower beam to the edge and can be clamped between the upper beam tool and lower beam tool together with the sheet.

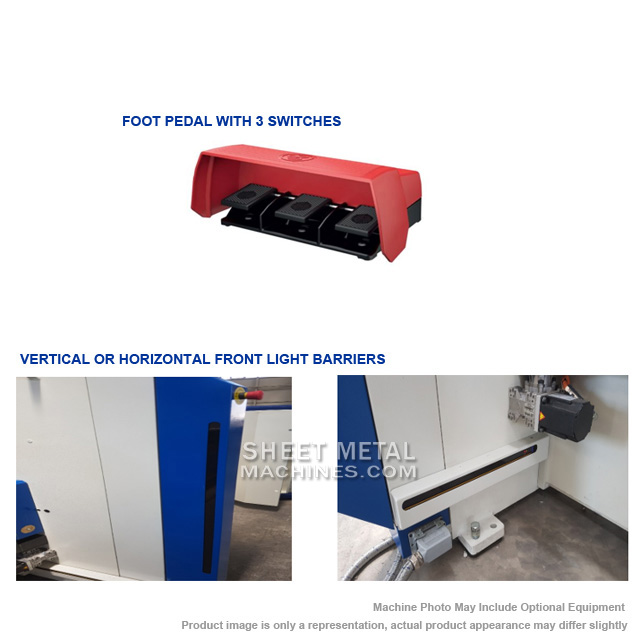

- FOOT PEDAL WITH 3 SWITCHES
- 3 switch foot pedal with panic button function on two steps.
(Sudden step on left pedal = clamping beam goes up immediately)
(Sudden step on middle pedal = folding beam and all axis stops immediately) - VERTICAL OR HORIZONTAL FRONT LIGHT BARRIERS
- For operator safety, front light barriers are located at the left and right front side of the machine, managed by safety PLC and prevent unwanted interventions to avoid accidents. You can choose as horizontal or vertical or you can completely remove the light barriers from your configuration.

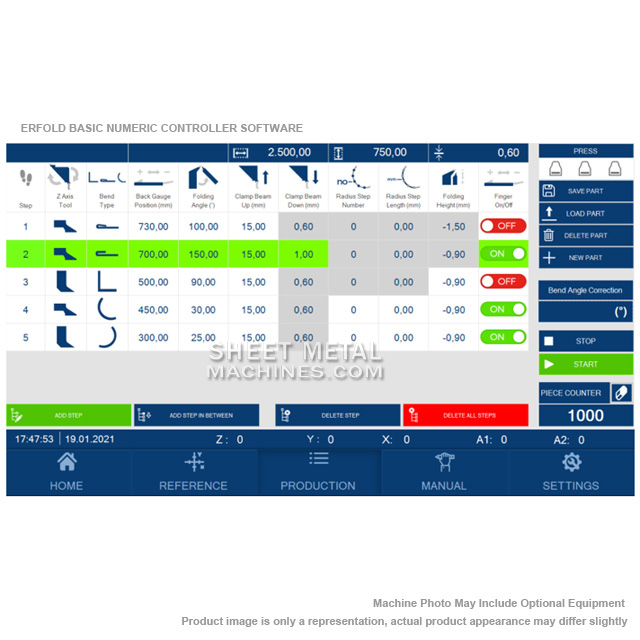

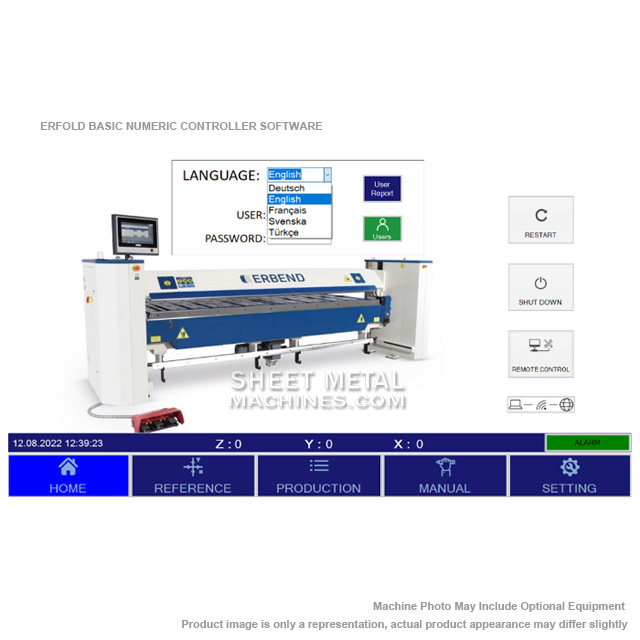

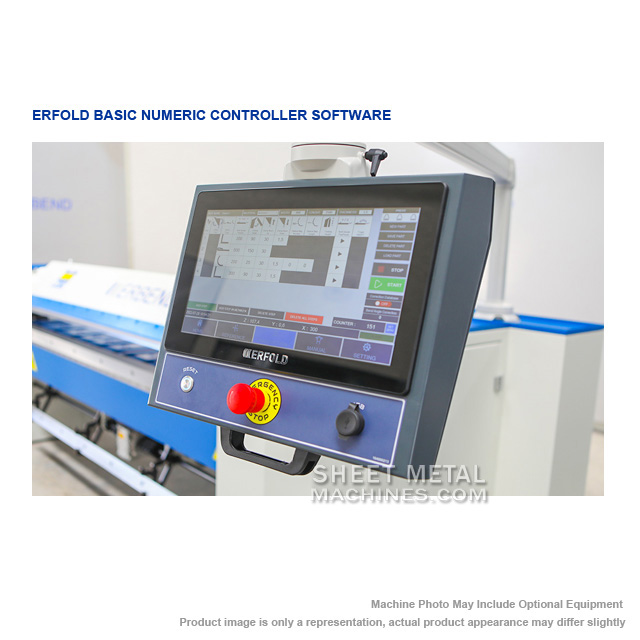

- ERFOLD BASIC NUMERIC CONTROLLER SOFTWARE
- Very user friendly, iconic screen layout
- 15.6″ tft panel touchscreen controller on swivel arm
- Windows based Erfold software that allows you to store and reload back ups of the factory settings or saves programmes easily
- 128 gb memory for unlimited receipt storage
- Line by line part programming by entering numerical values of the axes for each step
- Creating, saving, loading parts with different names, materials and sheet thicknesses
- Open or drop hemming function
- Multi radius bending function as by pressing or by bending
- Backgauge finger pause and on/off functions
- Material database control for springback correction and folding beam height correction regarding material type, thickness and length
- Piece counter for lot production
- Manual axis controls, alarm and error indications, machine detailed parameter pages
- Remote service connection via wireless internet
- User authorization with special passwords.
- STANDART TOOLS

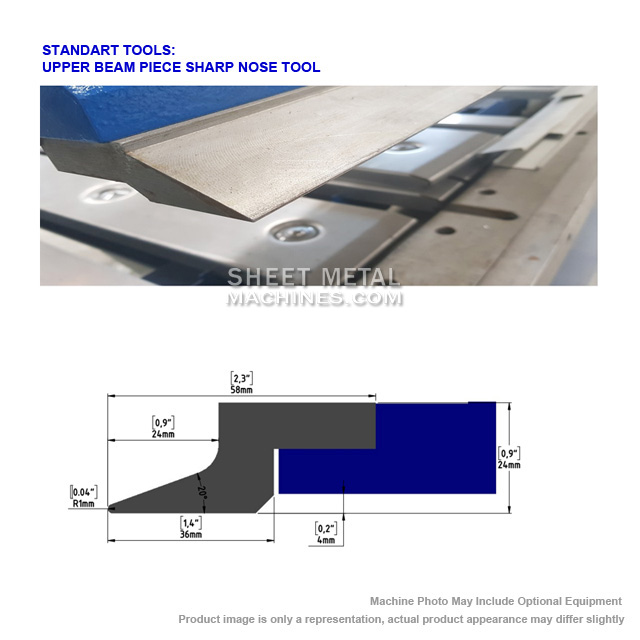

- UPPER BEAM PIECE SHARP NOSE TOOL
- Grinded material, single piece, 20° nose angle

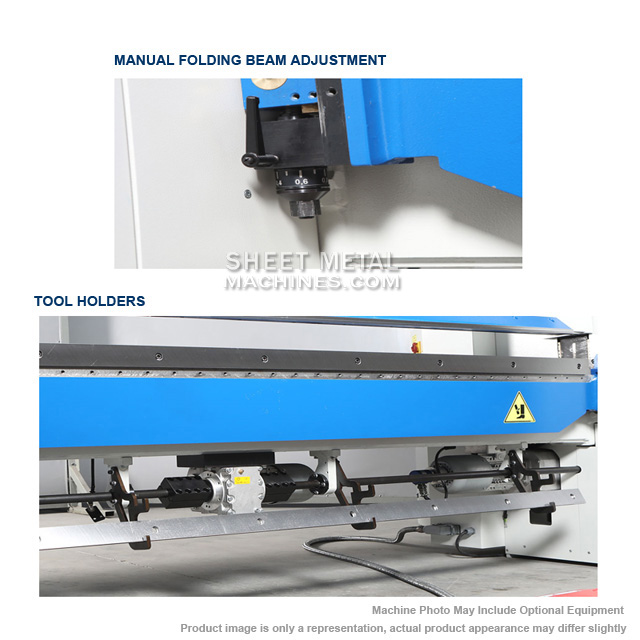

- MANUAL FOLDING BEAM ADJUSTMENT
- Manual height adjustment of folding beam according to the sheet thickness or bending point radius
- Located in left and right side and should be adjusted equally on both sides as thickness x 1 for sharp bending radius or thickness x 1,5 / 2,5 for more oval radius.
- More you lower the folding beam, more you have to increase the bending angle in the programme to be able to catch the right bending angle.
- TOOL HOLDERS
- 2 stacks of tool holders that can carry 2 single piece folding tool or clamping beam sharpnose tool
SPECIFICATIONS:
|
MODEL
|
MFG 3210
|
|
|
Sheet Length
|
126 in. (10.5 ft)
|
|
|
Capacity
|
Steel
|
0.039 in.
|
|
Stainless
|
0.023 in.
|
|
|
Aluminum
|
0.059 in.
|
|
|
Dimensions
|
83 x 177 x 65 in.
|
|
|
Weight:
|
6,393 lbs.
|
|
TECHNICAL PARAMETERS OF 11 AXIS
|
Upper Beam
(Z axis) |
Opening height
(without tools) |
4.33 in.
|
|
Motor Power (Servo)
|
0,75 kW
|
|
|
Transmission system
|
Eccentric
|
|
|
Max Clamping speed
|
3.54 in./sec
|
|
|
Folding Beam
(Y axis) |
Transmission system
|
Chain Transfer
|
|
Folding angle
|
0 – 155°
|
|
|
Motor Power (AC)
|
1,1 kW
|
|
|
Max folding Speed
|
100°/sec
|
|
|
Folding Beam Height Adjustment
(A1-A2 axis) |
Adjustment height
|
0 / -.78 in.
|
|
Std Control
|
Manual
|
|
|
Back gauge system
(X axis) |
Movement speed
|
11.81 in./sec
|
|
Motor Power (Servo)
|
400 W
|
|
|
Positioning / repeatability accuracy
|
+/- 0,1 mm
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
OPTIONAL ITEMS – CALL FOR PRICE:
- 39.37 in. servo backgauge system with feather fingers
- Different radius sharpnose tool
- Erfold Advanced 2D cnc graphical software

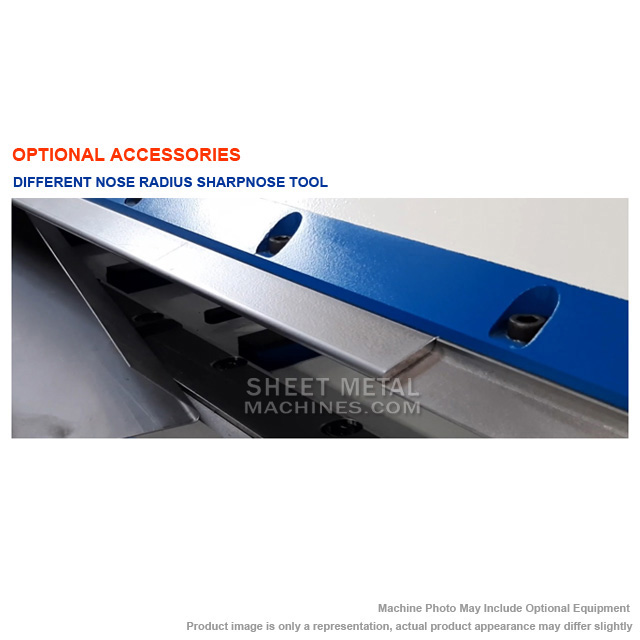

- DIFFERENT NOSE RADIUS SHARPNOSE TOOL
- Possible nose radius: R1,5 – R2 – R3 – R5 – R10

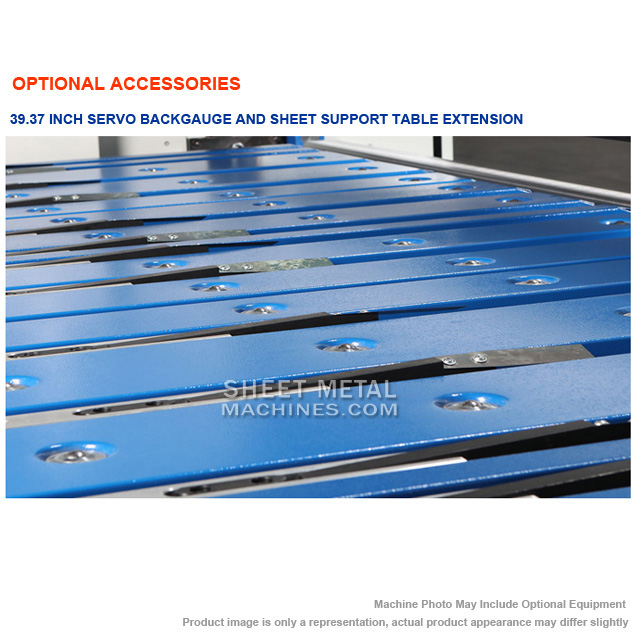

- 39.37 INCH SERVO BACKGAUGE AND SHEET SUPPORT TABLE EXTENSION

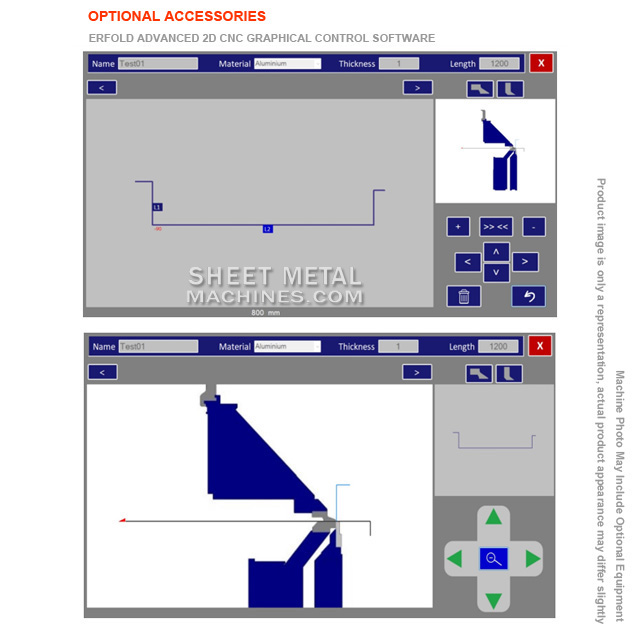

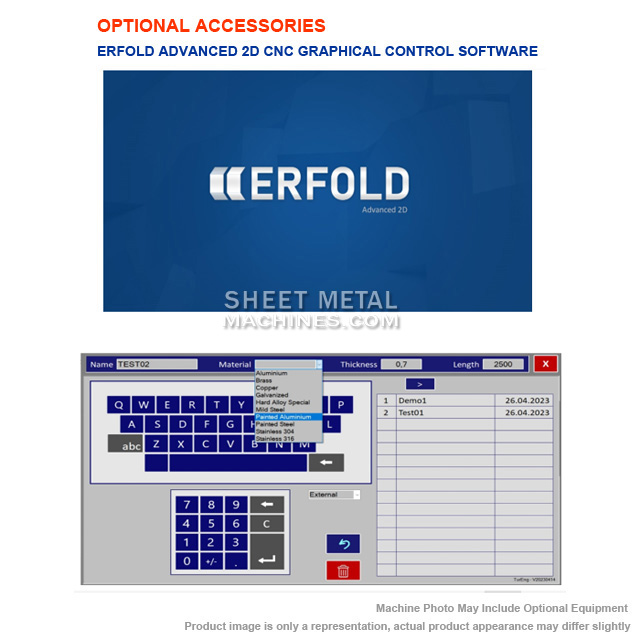

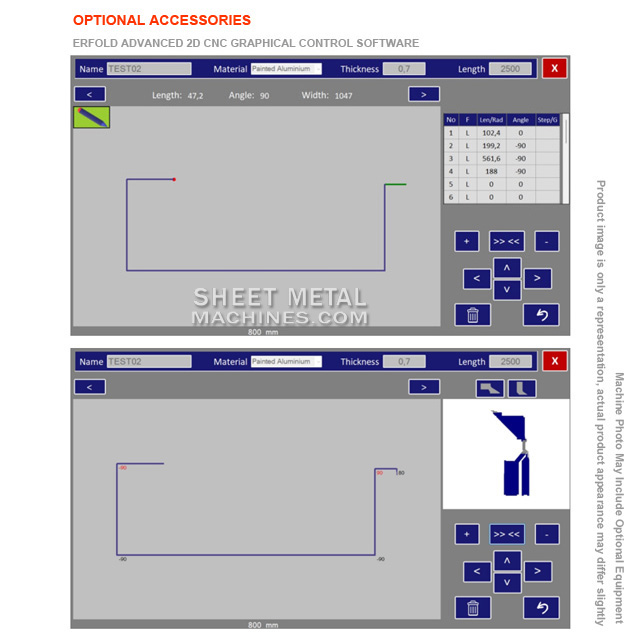

- ERFOLD ADVANCED 2D CNC GRAPHICAL CONTROL SOFTWARE
- Windows based software specifically designed for folders and %100 owned by Erbend
- 15.6″ capacitive LED touchscreen controller on swivel arm
- LBL Editor: You can adjust the bending steps line by line by entering the numeric values of axis targets or measures.
- 2D part editor: you can create a new bending programme by drawing in graphic mode and visualize in 2D graphical screen
- You can determine and change the bending sequence on the created part while you are making graphical collision control
- Capability of choosing material type, thickness, springback, bending correction and creating data base for every type of material type, thickness and length
- Authorization with password
- 128 GB hard disk space which allows you to save unlimited data
- Detailed alarm, tooling and parameters page
