Description
- Made in Taiwan

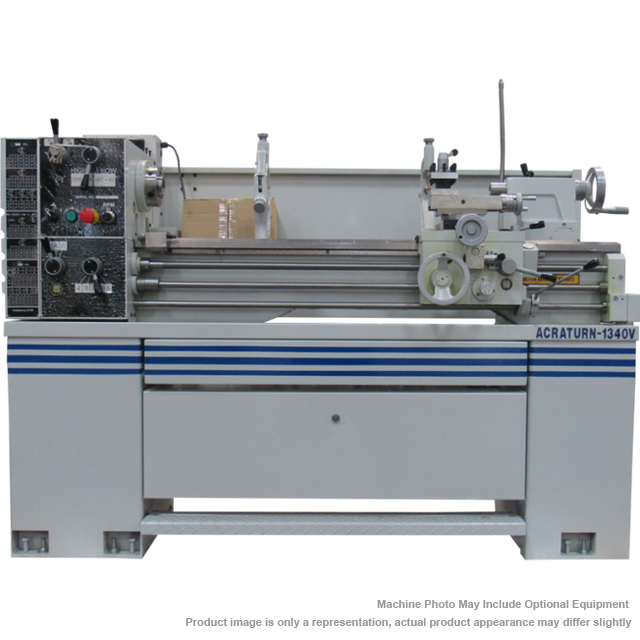

- Acra’s 1340BV Precision Variable Speed Gap Bed Engine Lathe is equipped with an electronically controlled Variable Speed Inverter control.
- 2 speed change 40-365 r.p.m. & 218-2000 r.p.m.
- Close type Headstock, Gearbox and Apron have inner oil reservoir in which lubrication worked by splashing lubricant.
- Hardened and ground gear in headstock. 40mm, (1-9/16″) hole through spindles.
- Spindle supported with 2 precision taper roller bearings.
- With longitudinal and cross automatic feeding systems.
- The feed road and hand-wheel for apron are equipped with adjustable safety overload slipping clutch to ensure proper cutting load.
- Lathe bed made of high tensile cast iron in rigid structure is hardened and ground.
- Lathe is equipped with a Electric brake and foot brake giving rapid braking.
- Tool cabinet mounted between two floor stands accompanied with lock can be put in all accessories and tools, safe and administrate conveniently.
- Outside shape designed under entirely consideration, neat and beautiful outlook.

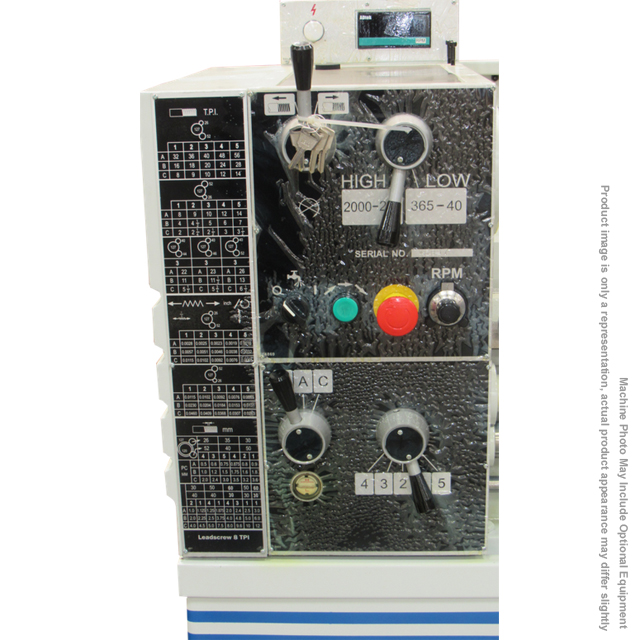

- All control knobs are located on the front of headstock, control easily.
STANDARD EQUIPMENT:
- 6″ 3-Jaw Chuck
- 8″ 4-Jaw Chuck
- Halogen Light

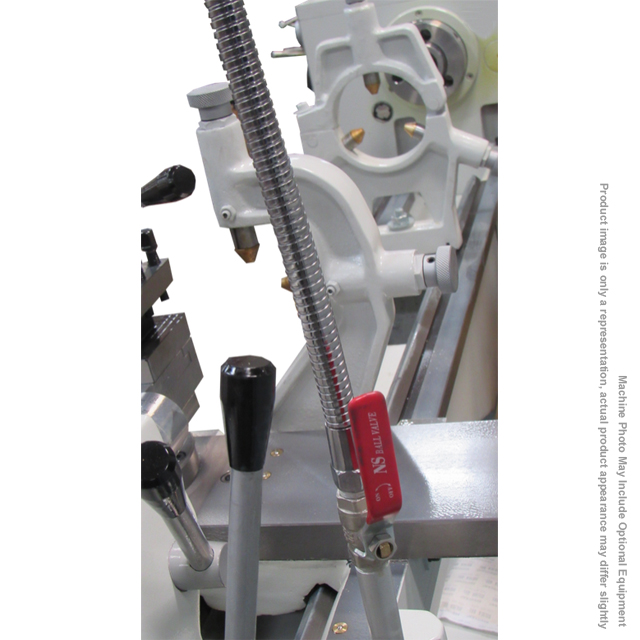

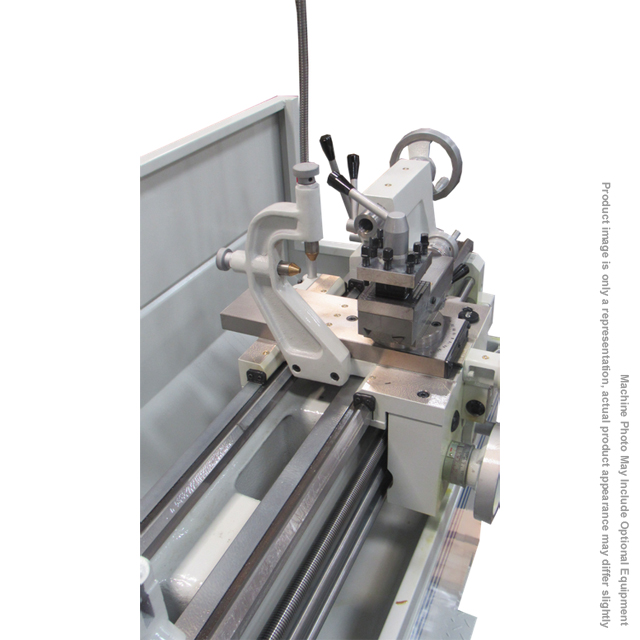

- Steady/Follow Rest
- Coolant System
- Chuck Guard

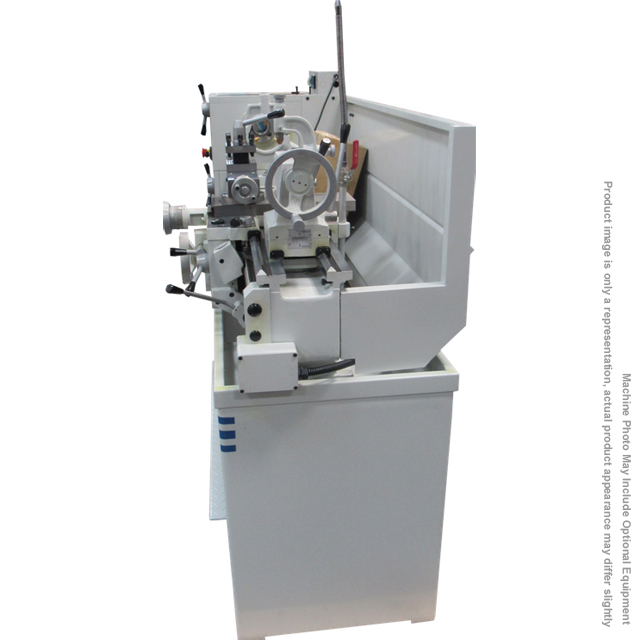

- Full Length Splash Guard
- 4 Way Tool Holder
- Micro Bed Stop
SPECIFICATIONS:
MODEL: 1340BV
Swing Over Bed: 13″
Swing Over Cross Slide: 8-1/4″
Distance Between Centers: 40″
Swing In Gap: 18-1/2″
Spindle Bore: 1-9/16″
Spindle Nose: D1-4
Spindle RPM: 40-2000 (Variable Speeds)

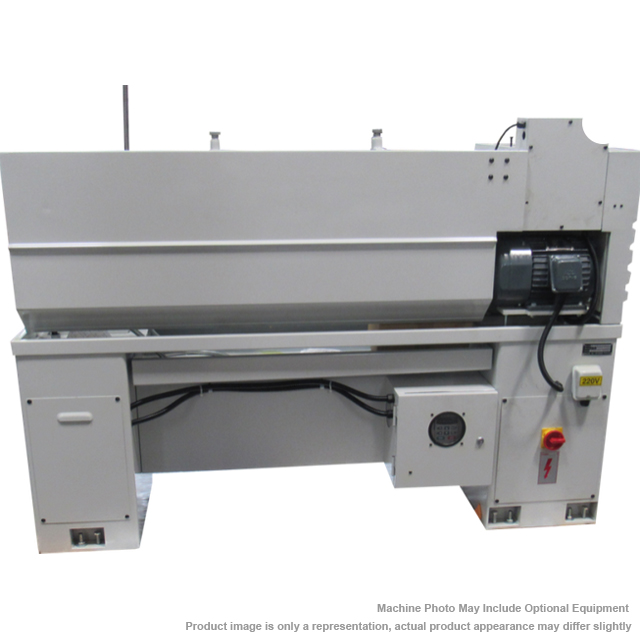

Main Motor: 3 HP
Voltage: 230V AC/1PH or 3PH (specify)
Amps: 230v, 8 Amps; 460v, 4 Amps
Weight: 1,320 lbs. net / 1,600 lbs.gross
Dimensions: 72″ x 29″ x 47″
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
OPTIONAL ITEMS:
- Face Plate: $250.00
- Taper Attachment: $1,200.00
- Taper Attachment Installation: $350.00
- Lever Type 5C Collet Closer JFK: $P.O.R.
- Import Collet Closer (Taiwan): $1,200.00
- Newall Digital Read-Out 8″ x 40″ DP700: $2,750.00
- Newall Digital Read-Out 8″ x 40″ NMS300: $1,500.00
- Acu-Rite Digital Read-Out 8″ x 40″ 203: $2,550.00
- Acu-Rite Digital Read-Out 8″ x 40″ 303: $3,000.00
- Fagor or Sony or Mitutoyo Digital Read-Out: P.O.R.
- D.R.O. Installation: $250.00
- Import Quick Change Tool Holder: $375.00
- Aloris Tool Post Set (BXA) 5pc: $P.O.R.
- Live Center MT 3: $100.00
- EVS 460V – Add $375.00
