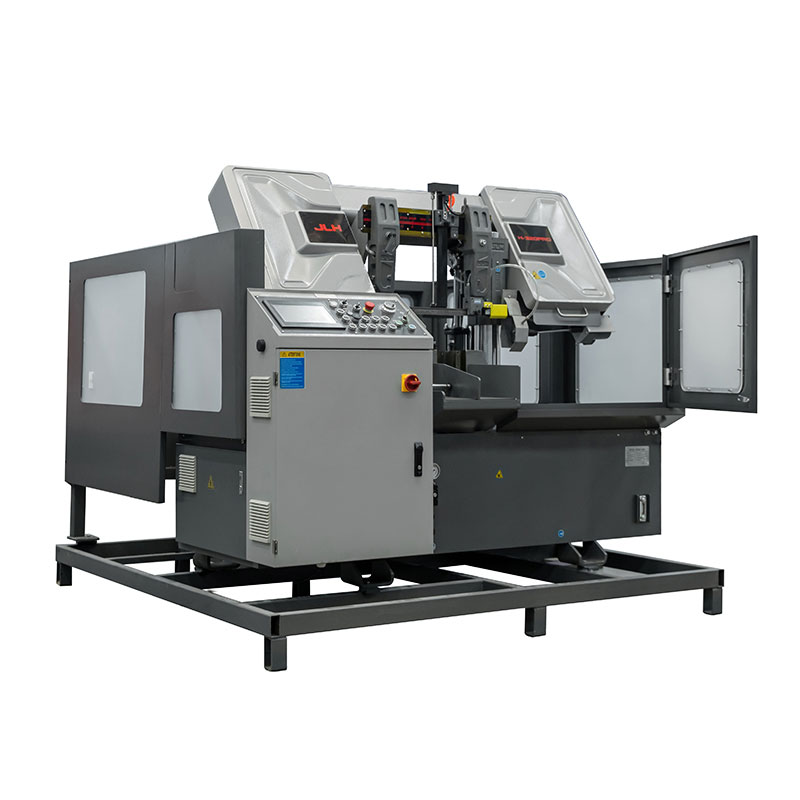

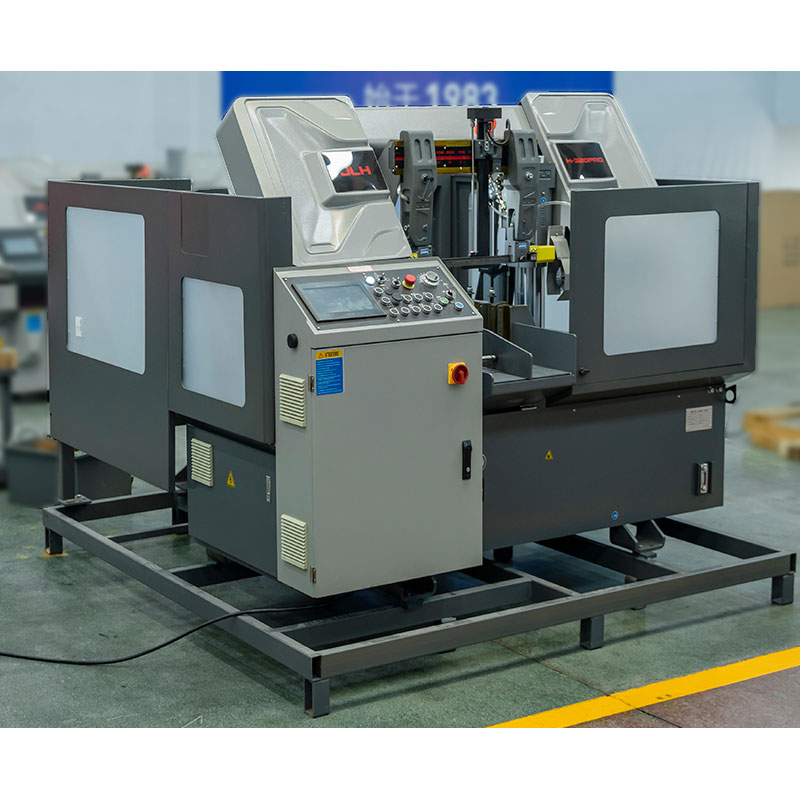

JLH H-320PRO 12 in. Horizontal Automatic Indexing Bandsaw

Call for Price

The intelligent sawing system is completely developed JLH Saws. With “constant sawing force” as its core principle, the system monitors blade stress condition in real time and adjusts feeding speed continuously and at optimum rates. This system prolongs blade life and improves sawing efficiency.

Description

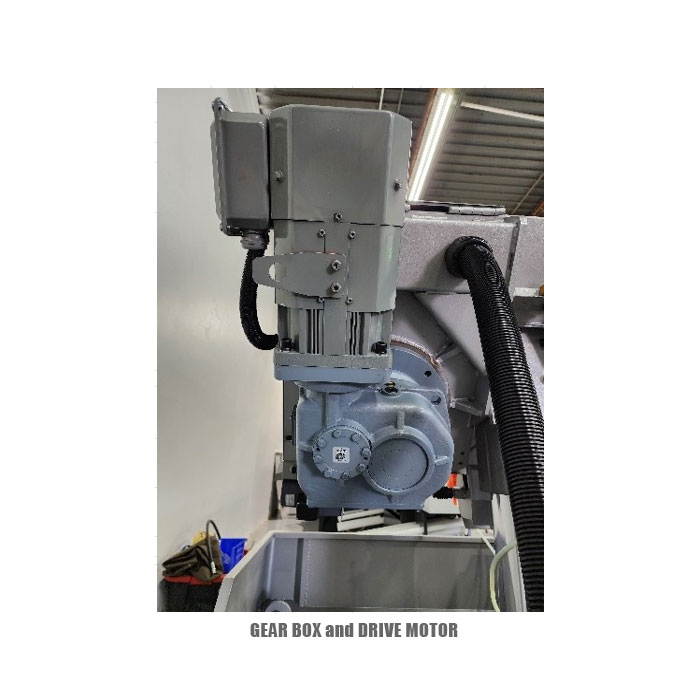

GEAR BOX and DRIVE MOTOR

- Unlike many bandsaw manufacturers that use a worm and gear type gearbox; JIH Saws uses a highly efficient spiral bevel gear and cylindrical gear combination reducer. The Magnetic Drive Motor has a direct connection to the gear box eliminating the need for costly belt replacements. Drive motor is inverter controlled.

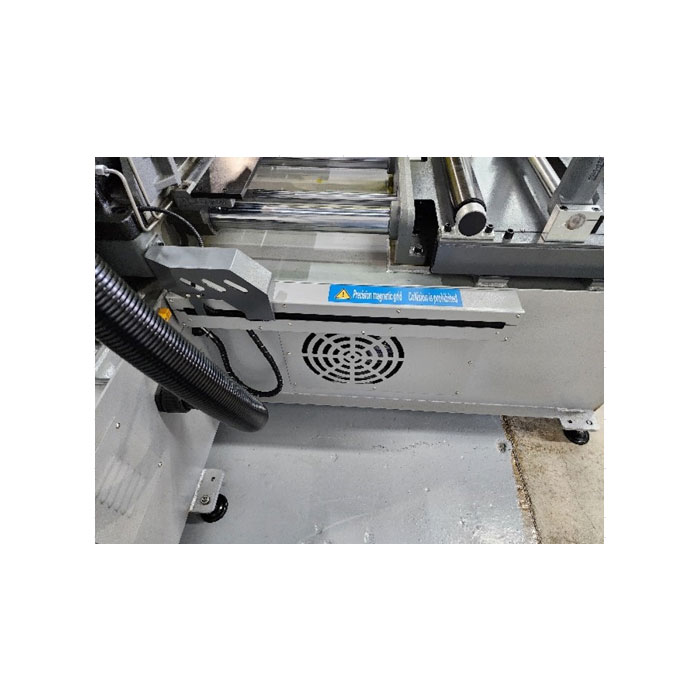

MAGNETIC SCALE MEASURING

- Accurate and fast positioning are accomplished through a magnetic scale. One advantage to this type a measuring is that the scale can be placed out of the coolant area and completely protected.

INTELLIGENT SAWING SYSTEM

- The intelligent sawing system is completely developed JLH Saws. With “constant sawing force” as its core principle, the system monitors blade stress condition in real time and adjusts feeding speed continuously and at optimum rates. This system prolongs blade life and improves sawing efficiency.

STANDARD EQUIPMENT:

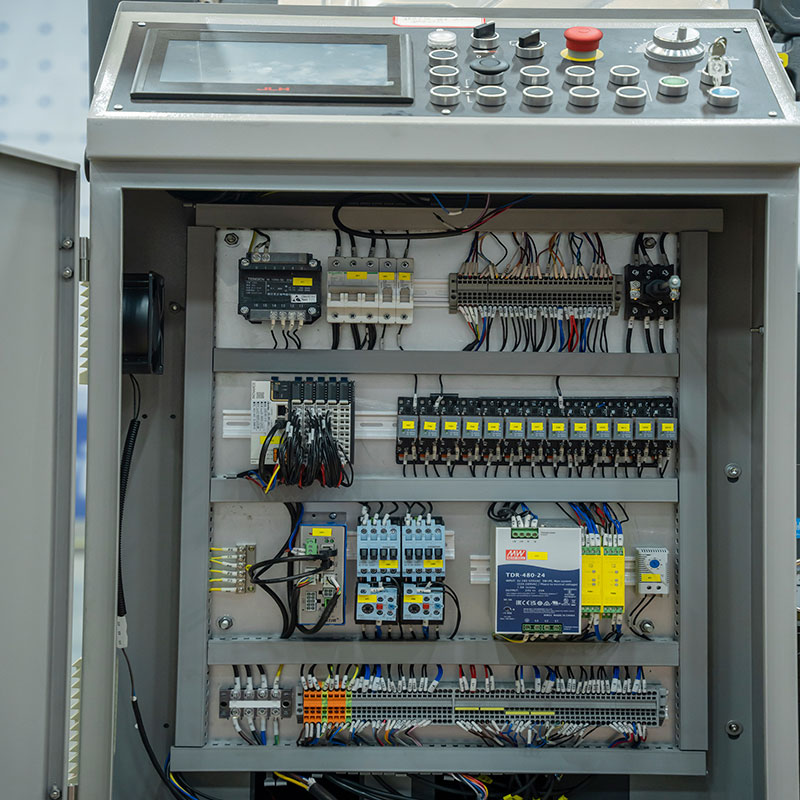

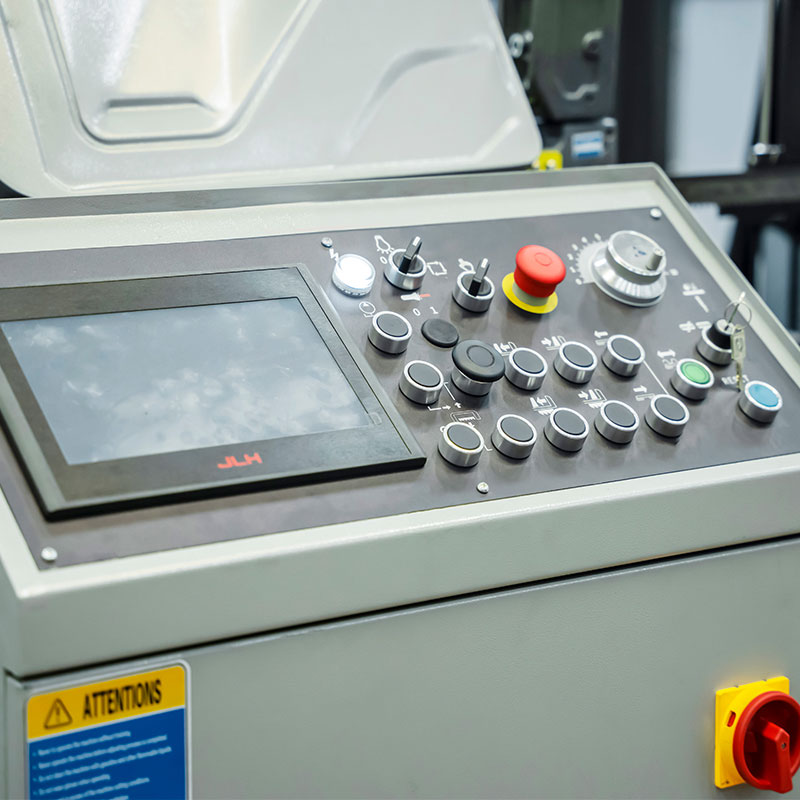

Operator control panel for machine functions.
Saw Master feed system
Permanent Magnet Drive Motor

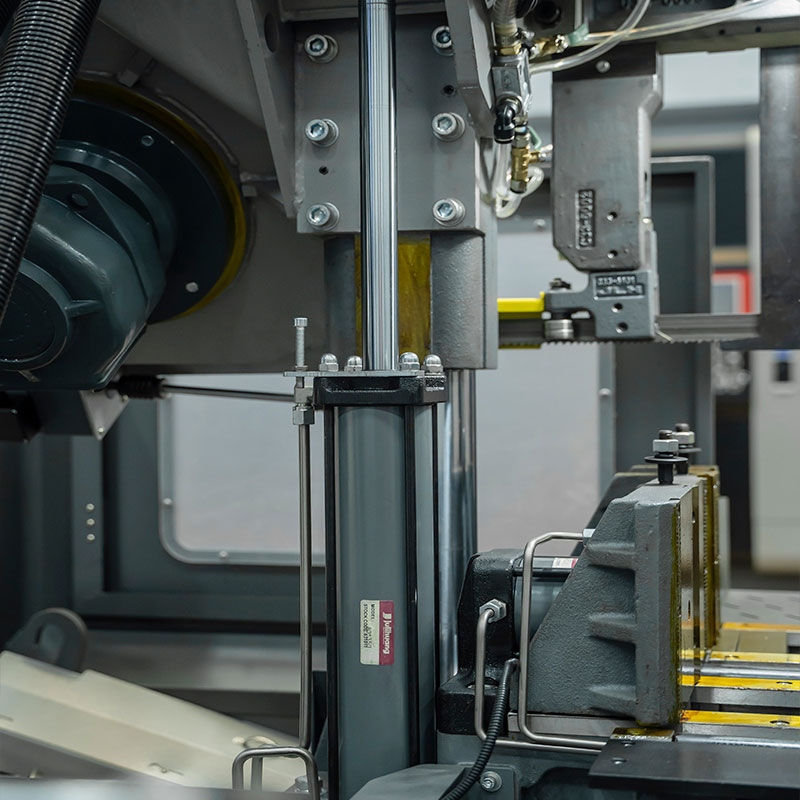

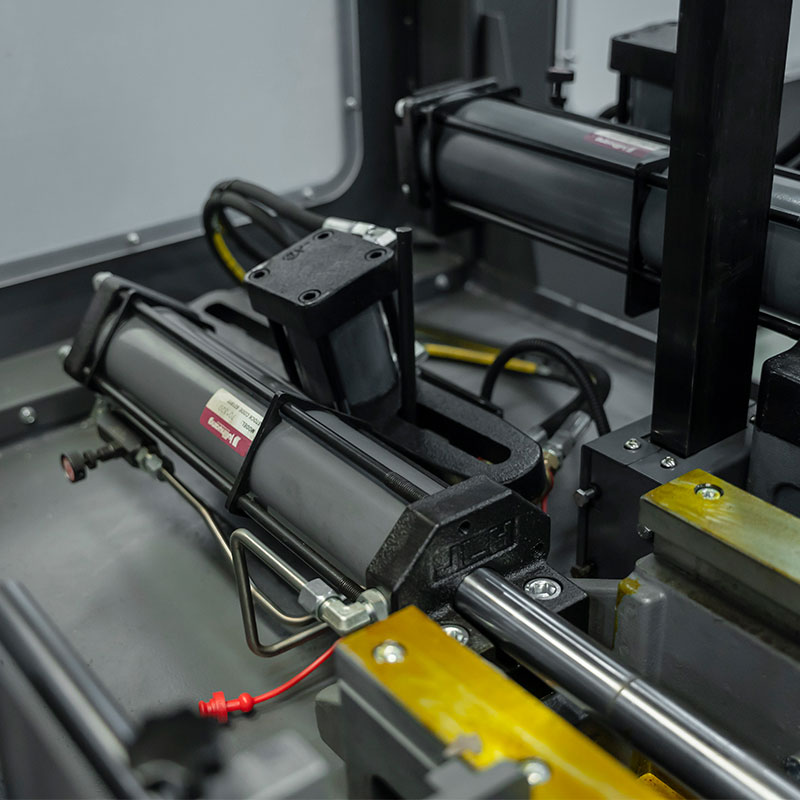

Hydraulic full stroke vise clamp.

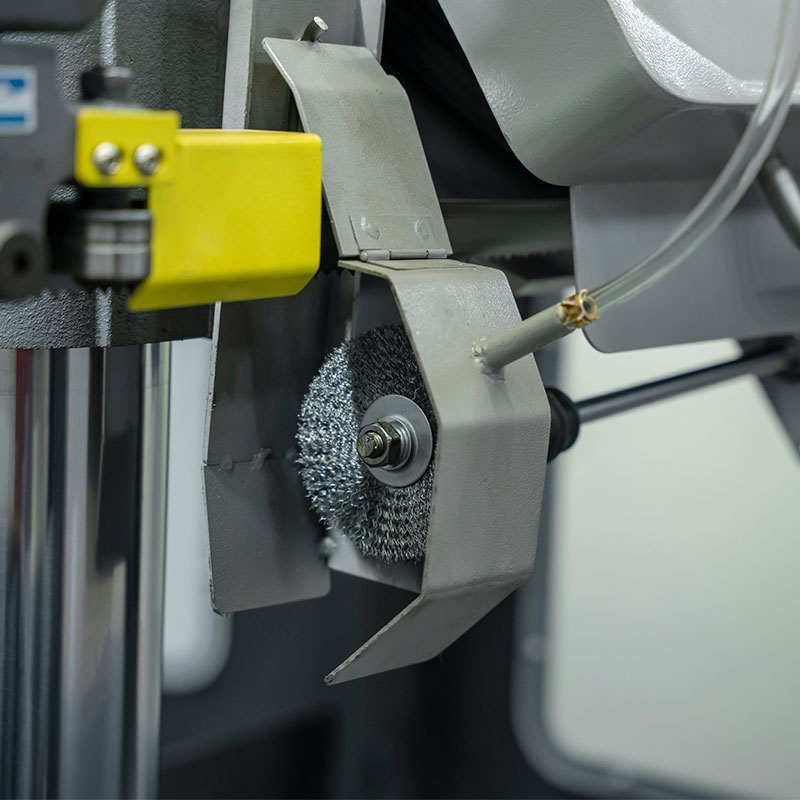

Power driven band cleaning brushes.
Blade breakage detector.
Automatic chip conveyor.
100 Programs to save all parameters for repeat jobs
10″ color touch screen.
Hydraulic band tension.
Band door interlocks.
LED Work Light
Heavy duty direct drive gearbox
Coolant tank with electric pump for blade lubrication.
One (1) complimentary Bi Metal saw blade.

SPECIFICATIONS:

Round Tube at 90°	12″
Round Solid at 90°	12″
Rectangle Solid at 90°	12″ W x 12″ H
Maximum Cutting Capacity – Bundle	11.8″ W x 5.9″ H @ 90°
Blade Speed	33 to 330 fpm
Saw Blade Size	1-1/4″ W x 162″ L
Saw Blade Tension	Hydraulic
Motor	6.7 HP
Power	220V, 3-ph-60Hz
Total Amp Draw	19 Amps
Coolant Motor	.12 HP
Coolant – Reservoir Size	24 gal
Coolant system – Mist Lubricator	No
Coolant system – Flood	Yes
Hydraulic Motor	1.5 HP
Hydraulic System – Reservoir Size	16 gal
Material Pass Height	27″
Indexer – Length Per-Stroke	19.7″
Indexer – Maximum Index Strokes Length	240″
Indexer – Remnant Length	5″

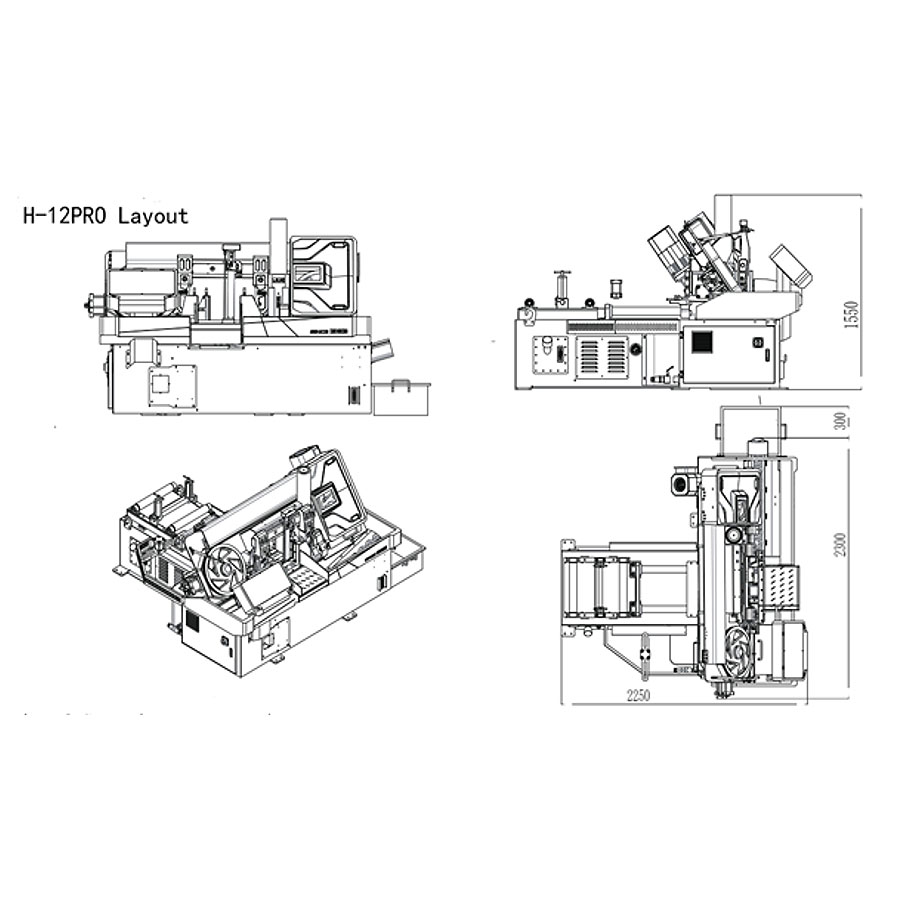

Dimensions	91″ x 89″ x 61″
Weight	3,750 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY – Mechanical Parts
2 YEAR WARRANTY – Electrical Parts
1 YEAR WARRANTY – Labor

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

OPTIONAL ITEMS – CALL FOR PRICE:
VVP – Variable Vise Pressure Control System
CHIPCO – Powered Chip Auger
NESTER – Hydraulic Top Clamp (removable, short stroke)
2MCONV – 6’6” (2M) Idle Roller Table 6.5’ Long,with Vertical Alignment Rollers
IDLER – 10′ Idler Conveyor
BRUSHES – Package of 10pcs of band brushes
