Description

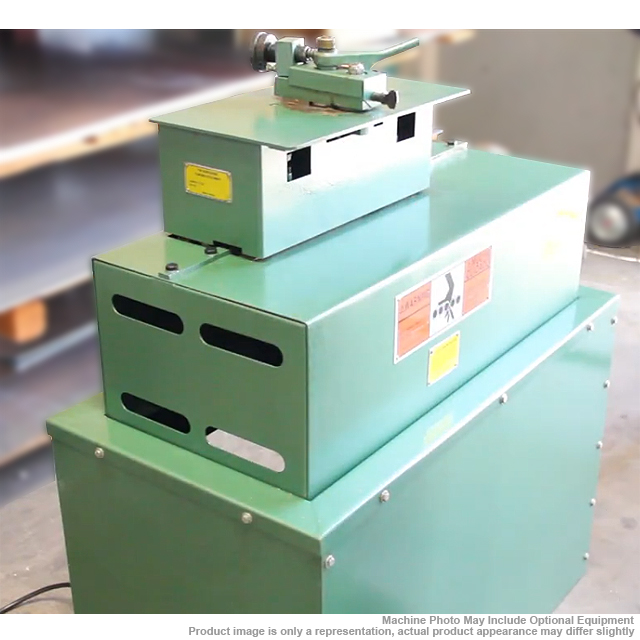

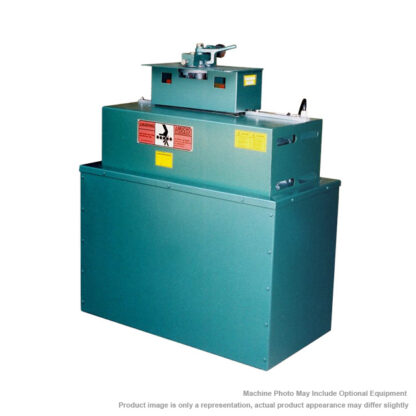

- On the job site or in the shop, this portable little rollformer is a work horse for 24 gauge and lighter material. It is available with power flanging attachment and is perfect for field use. Steel stand included.
- Portable rollformer is a work horse for 24 gauge and lighter material.
- It is available with power flanging attachment and is perfect for field use.
- With the included, all steel stand, it will also fit right in with your other shop equipment.
- NOTE: When shipping, rollformer will fit inside stand
SPECIFICATIONS:
Capacity: 24 Gauge Mild Steel
Motor: 1/2 HP, 1700 RPM, 115 Volt, Single Phase, 60 Hz – Standard (optional – 230v/1/50 available – please call)
Depth of Pocket: Approx. 5/16″ (7.9mm) with hammer edge of 3/8″ (9.53mm)
Speed: Approx. 35 FPM
Flange Height: 3/16″ (4.76mm)
Dimensions of Roll Former: 30″ x 14″ x 20″ (762mm x 356mm x 508mm)
Dimensions of Stand: 35″ x 14″ x 24″ (889mm x 483mm x 610mm) add 6″ around for shipping
Shipping Dimensions: 41″ x 25″ x 30″ (1,041mm x 65mm x 762mm)
Weight: Rollformer: 305 lbs
OPTIONAL MODEL:
TIN KNOCKER TK24 24 ga. Pittsburgh Roll Former w/Stand = $2,950.00
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
