SCOTCHMAN DO 95/140-24M 95 Ton Dual Operator Hydraulic Ironworker 3-ph, 208v

$38,790.00

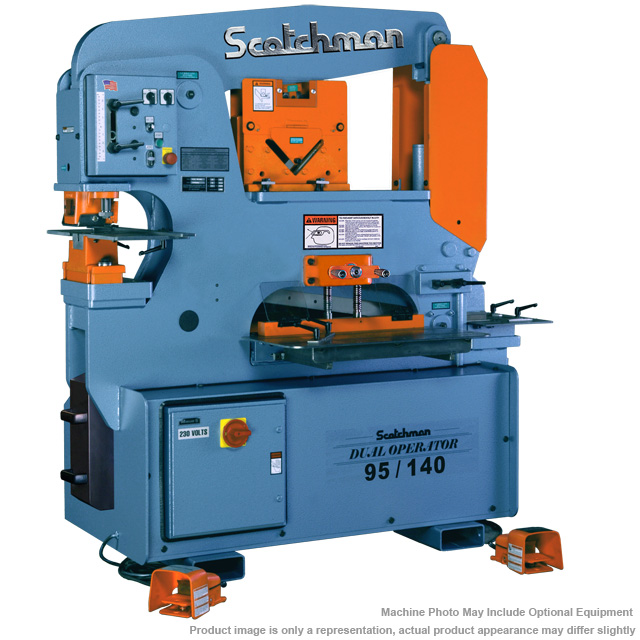

The Scotchman DO 95/140/24M dual operator ironworker has four built-in features including a 95-ton punch (1-3/16” in 1″), a 6” x 6” x 1/2″ angle shear, a 24” plate shear (1” x 8”, 3/8” x 24”) and a rectangle notcher.
The Scotchman dual operators are designed with a hydraulic system that has two pumps to ensure full hydraulic pressure and full speed when two functions are running at full capacity.
Scotchman offers several American-made Dual Operator Ironworker Models ranging from 70 to 150 tons of punching power.

SKU: DO-95/140-24M Category: Tag:
Scotchman

Description

  • Scotchman offers several American-made Dual Operator Ironworker Models ranging from 70 to 150 tons of punching power. The definition of a Dual Operator Ironworker is that it allows two operators to perform two different fabricating functions simultaneously. The Tool Table Design and the wide variety of optional tools available give the Scotchman Dual Operator Ironworker Machines more versatility and flexibility than any other ironworker machine on the market.
  • The two main features that set Scotchman’s Dual Operator Ironworkers apart from others are:
    • 1) On all non-Scotchman dual operator models, the punch station must be used as one of the two functions. On the Scotchman, the punch can be used as one if needed, but it is not required.
    • 2) The Scotchman dual operators are designed with a hydraulic system that has two pumps to ensure full hydraulic pressure and full speed when two functions are running at full capacity.
  • The Scotchman DO 95/140/24M dual operator ironworker has four built-in features including a 95-ton punch (1-3/16” in 1″), a 6” x 6” x 1/2″ angle shear, a 24” plate shear (1” x 8”, 3/8” x 24”) and a rectangle notcher. Combining these features with the large tool table for quick change of optional tooling plus the best in the business, 3-year parts warranty makes DO 95/140/24M hydraulic ironworker an industry leader.
  • Dual Operator, 5 Stations
  • Dual Operator allows for Two Operators to Work at the Same Time at Full Capacity
  • 95 Ton Punch Station (1-3/16″ in 1″)
  • Keyed Punch Ram for Safety
  • 9″ Throat Depth
  • Punch Gauging Table with Fence and Scale
  • Die Holder Complete with 2″ Die Insert
  • Punch Nut with Wrench & Stripper
  • Adjustable Swing-Away Stripper
  • One Round Punch & Die: Max. Dia. 1-1/4″
  • Punch Jog Control
  • Two Adjustable Electric Stroke Controls with Scale
  • Two Electric Remote Foot Pedals
  • Two 2-Stage Hydraulic Pumps
  • Two Valves
  • Angle Shear Capacity 6″ x 6″ x 1/2″ at 90°
  • Rectangle Notcher 3″ x 4″ x 1/2″
  • Notcher Table with Guides
  • 140 Ton, 24″ Flat Bar Shear with Sabre Blade (1″ x 8″, 3/8″ x 24″)
  • Shear Table with Miter Fence
  • Tool Table Work Area
  • Slug Receptacles
  • Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
  • 230/460 Volt /3 Phase Electrics (must specify voltage)
  • All Guards Necessary to Comply with ANSI B 11-5 Standards
  • Forklift Accommodations
  • Made in the USA

OPTIONAL MODELS:
014708: DO 95/140-24M – 208V, 3PH, 60HZ – $38,790.00
014710: DO 95/140-24M – 230V, 3PH, 60HZ – $38,790.00
014735: DO 95/140-24M – 460V, 3PH, 60HZ – $38,790.00
014720: DO 95/140-24M – 220V, 1PH, 60HZ – $42,190.00
DO 95/140-24M (3PH, 60HZ) LESS ANGLE SHEAR – $37,990.00

SPECIFICATIONS:

Rated on
65,000 PSI Tensile | A 36 Mild Steel
Punching Capacity
95 ton
1-3/16″ in 1″
Special Tooling
4″ Max. Dia.
Throat Depth
9″
Flat Bar Shear
(Sabre Blade – Std)
140 ton
24″ Length
1″ x 8″
3/4″ x 12″
1/2″ x 16″
3/8″ x 24″
Angle Shear 90°
6″ x 6″ x 1/2″
Angle Shear 45°
(with Bar Shear)
3″ x 3″ x 3/8″
4″ x 4″ x 1/2″
Brake 12″
80 Ton
Brake 24″
55 Ton
Open End Brake
Max. 1/4″ x 5″
Flat or Angle Iron
Pipe Notcher
Schedule 40 I.D.
3/4″
1″
1-1/4″
1-1/2
2″
90° V. Notcher
6″ x 6″ x 5/16″
Rectangle Notcher
3″ x 5″ x 3/8″
3″ x 4″ x 1/2″
V- Notch
3″ x 3″ x 3/8″
Notching in Leg of Channel
6″ to 10″
Channel Shear
2″ to 6″ adj.
Rod Shear
Round Rod (Max.)
1/4″ to 1-1/4″, 9 Cavity
Square Rod (Max.)
1/4″ to 1″, 1 Cavity
Strut Shear
Samples Required
Square Tube Shear
1/2″ to 2″
12 gauge
Picket Tool
1/2″
3/4″
1″
16 gauge
Offset Die Holder
Max. 40 ton
Strokes Per Minute in Light Material
1/4″ stroke [Punch Station]
Strokes Per Minute in Heavy Material
3/4″ stroke [Punch Station]
Hydraulics
3,500/3,500 psi
Motors Standard
10 hp 3 ph
230/460
208/380/575
Motors Optional
10 hp 1 ph, 220v
Dimensions
L-65″ x W-30″ x H-72-1/8″
Shipping Weight
3,800 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts

OPTIONAL ITEMS: CALL FOR PRICE
Open End Brake
Pipe Notcher
90 degree V-Notcher
Tube Shear
Picket Tool
48″ Back Gauge
Laser Light
12″ & 24″ Brake (*Back Gauge sold separately.)
Rectangle Notcher
Channel Shear
Urethane Stripper
6″ x 6″ Die Holder
Offset Die Holder
Rod Shear
Unequal Leg Angle Blades
Brake Table with Scale and Squaring Arm. 12″ and 24″ Brakes.
Brake Length Gauge with Scale 12″ & 24″ Brakes
Unistrut Shear
Multi-Loc Punch Gauging Table 36″ and 85″ Extensions Available
24″ x 5′ Conveyor with Angle Iron Support attached to DO70/110
Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Punch Table Extension
Angle Iron Miter Guide
Weld Coupon Bender
Flatten and Trim Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Tool Table Extension includes Punch & Die Storage Drawer (65+Ton)
*Punches & Dies sold separately.
LED Light. Available on punch station and shear station.

Additional information

Weight 3800 lbs

Brand

Scotchman
