Description
-

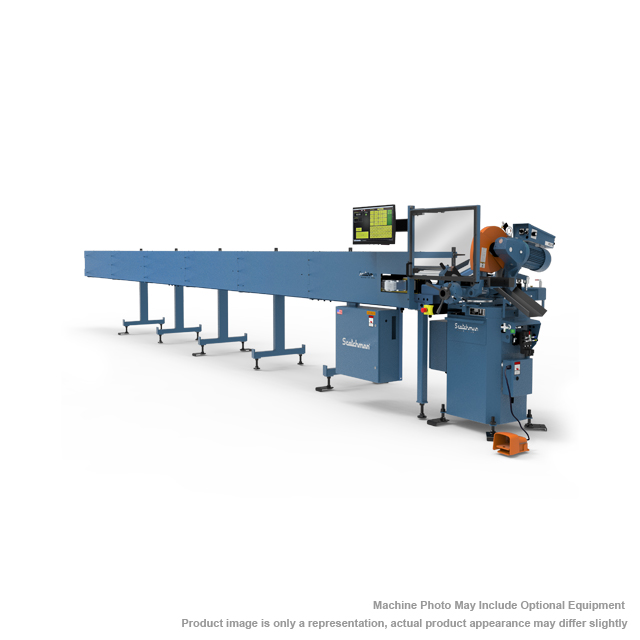

- Scotchman Industries proudly announces a NEW auto loading circular cold saw to their existing lineup of metal sawing solutions. The new CPO 350 Auto Loader from Scotchman is a fully automatic sawing system guaranteed to save time, reduce scrap and eliminate costly mistakes.
- We’ve taken our semi-automatic CPO 350 PKPD saw and added an auto loading system creating a fully automatic sawing system which can cut multiple lengths of tube (max 3” dia.). This saw comes standard with a Windows based touch screen control, 5hp variable rpm speed motor, 315mm diameter blade, and the ability to run unlimited cut lists from 1/2” to 23’ lengths.
- Run a complete cut list or run of cut lists at 90° on an automatic cycle or switch to operate the saw in a semi-automatic cycle to miter cut. Quick set-up, automatic part length change, and fast reloading of material adds efficiency; plus, accurate cut lengths and is always within +/- 0.002 per dia. inch in squareness.
- Fully Automatic Cycle OR Semi-Automatic Operation
- Pneumatic Power Down Feed and Electric Controls
- Adjustable Stroke Control
- Adjustable Feed Rate (Blade & Material)
- Air Operated Material Vise Clamp
- Clamping on Both Sides of the Blade
- Fixed Rear Vise
- Double Reduction, Hardened Bronze Gears
- Chip Drawer
- Emergency Stop Button
- Mist Coolant System
- Material Feed Direction can be Either: R to L OR L to R (must specify)
- Miter in One Direction Only (manually)
- Semi-auto Operation is Standard for Cutting Miters
- Automatic Loading & Trim Cut of Each New Bar
- Piece Counter
- Touch Screen Controls Actuate the Complete Cycle
- Windows Base Software (includes profile screen)
- Two-year Warranty on Parts (CPO Saw)
- One-year Warranty on Parts (AutoLoader)
- Made in USA
SPECIFICATIONS:
|
Length Tolerance
|
±0.010 repeatability
|
||
|
Squareness Tolerance
|
±0.002 per diameter inch
|
||
|
SOLID
|
Round
|
90°
|
1-3/4″
|
|
45°
|
|||
|
Square
|
90°
|
1-1/2″
|
|
|
45°
|
|||
|
TUBING
|
Round
|
90°
|
3″
|
|
45°
|
|||
|
Square
|
90°
|
3″
|
|
|
45°
|
2-5/8″
|
||
|
Minimum Cut Length
|
1/2″
|
||
|
Maximum Cut Length
|
23′
|
||
|
Motor HP Ferrous Models
|
5 HP
|
||
|
Motor HP Non-Ferrous Models
|
5 HP
|
||
|
Power Supply
|
230/460-3ph (must specify voltage)
|
||
|
Air Pressure
|
90 lbs. minimum
|
||
|
Maximum Saw Blade
|
350mm
|
||
|
Arbor Bore Size
|
40mm
|
||
|
Pin Spacing
|
4/12/64
|
||
|
12′ Supply Table w/ Saw
|
Dimensions
|
(L) 220-1/8” (W) 48” (H) 57”
|
|
|
Shipping Weight
|
Shipping Weight: 1,874 lbs.(850kg)
|
||
|
24′ Supply Table w/ Saw
|
Dimensions
|
(L) 362” (W) 48” (H) 57”
|
|
|
Shipping Weight
|
Shipping Weight: 2,784 lbs. (1263kg)
|
||
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts (CPO Saw) / 1 YEAR – Parts (AutoLoader)
OPTIONAL ITEMS: CALL FOR PRICE
- Bundle Loader Magazine
