Description

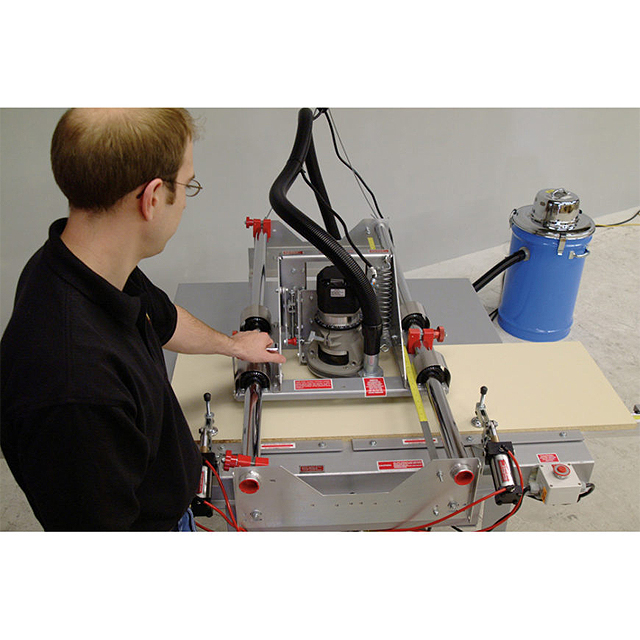

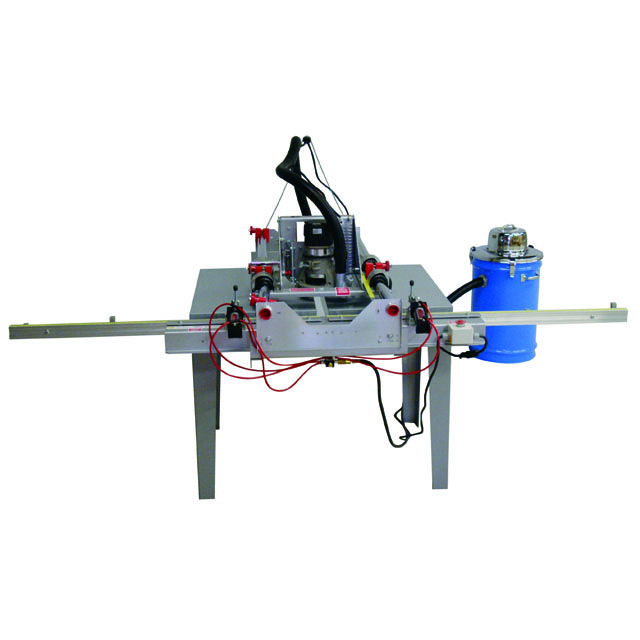

- The TR2 panel router is a horizontal model offering accuracy and power in a space saving size ideal for cross dado jobs up to 36 inches. Equipped with a heavy duty 3-1/4 Hp motor this unit easily cuts standard dados, blind dados as well as full-length rabbets. One person operation makes this machine well suited for wood shops, schools, display manufacturers and cabinet shops.
STANDARD EQUIPMENT:
- 3-1/4 Hp, 15 amp router motor.
- Horizontal steel work table.
- Chrome-plated 1-3/4” guide tubes.
- 8 Nylatron roller bearing system.
- Adjustable rulers.
- Integrated dust collection bonnet.
- Floating router head
- 2 clamps.
- 2 blind dado stops.
- Extended warranty.

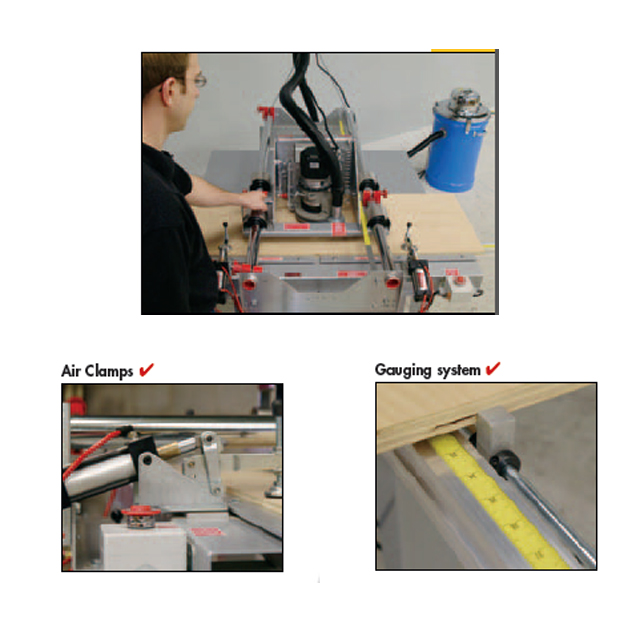

- *Gauging System, and dust kit are now Included with machine
SPECIFICATIONS:
Max. Crosscut: 36″ / 910mm
Max. Rip Cut: Unlimited
Max. Cut Thickness: 1-3/4″ / 45mm
Cut Accuracy, Straight and Square: 1/64″ / .4mm
Motor: 120V, 15 amp (220V available)
Frame Length: 57″ / 3050mm

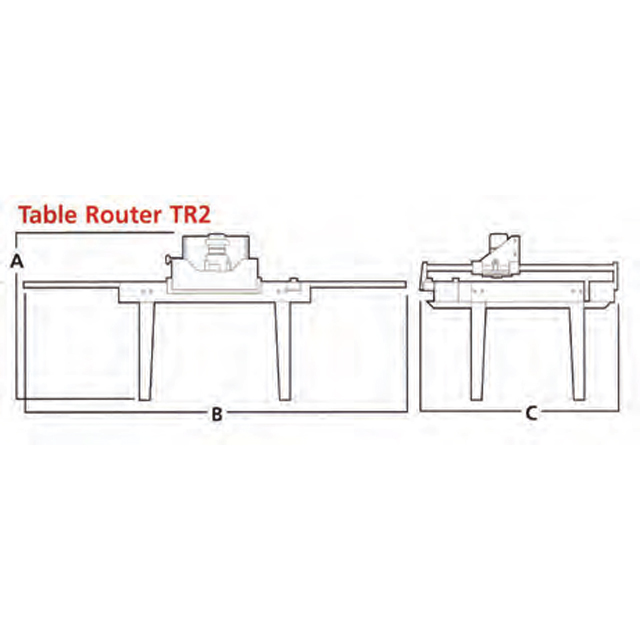

Dimensions (AxBxC): 45″ x 97″ x 57″
Shipping Weight: 285 lbs. / 129 kg
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
