Description

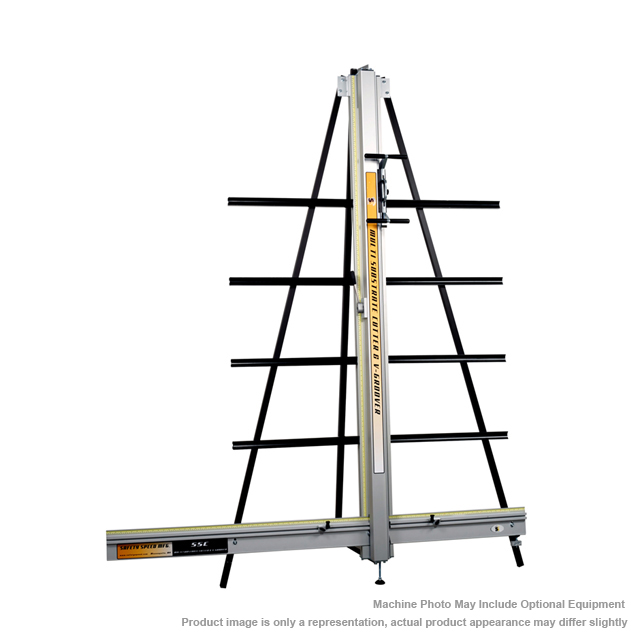

- The new SSC 210A is a revolutionary vertical cutter offering a high degree of performance and accuracy at a cost much less than similar models in the industry
- A truly affordable finishing solution for any sign making business. These units are designed to cut cleanly and accurately without dust and noise. The interchangeable tool cartridges that can be changed in under 10 seconds means that you only buy the tools you need. The cartridge system allows new tools to be developed for new materials giving the SSC 210A virtually unlimited scalability.
Ideal cutting solution for processing:
-
- Corrugated Plastic (.75”/20mm)
- PVC (.5”, 13mm)
- Foam board (.75”, 20mm)
- Aluminum Composite Panel (.16”, 4mm)
- MDF (.12”,3mm)
- Acrylic (.25”, 6mm)
- Honeycomb board (.75”, 20mm)
- Magnetic sheets (.16”, 4mm)
STANDARD EQUIPMENT:
- Single blade cartridge cutting up to 20mm/.75in
- Three blade utility cartridge cutting up to 13mm/.5in
- ACM Cutting Wheel cartridge
- Acrylic scoring cartridge
- Wall Mounting Kit
- Clamping System
- Two Production Stops
- Integrated Laser Sight Line
- Integral Counter Weight
- Two Upper Frame Quickstops
SPECIFICATIONS:
Max. Crosscut: 82″/2082mm
Frame Height: 102″/2590mm
Frame Length: 84″/2133mm
Frame Depth: 27″/685mm
Dimensions (Shop): 84″L x 102″H x 27″D
Shipping Dimensions: 108″ x 14″ x 11″
Shipping Weight: 154 lbs.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
OPTIONAL ITEMS – CALL FOR PRICE:
V-Grooving Cartridge
Aluminum Sheet Cartridge
Glass Scoring Cartridge
Free Standing Kit SSC210A
