Description

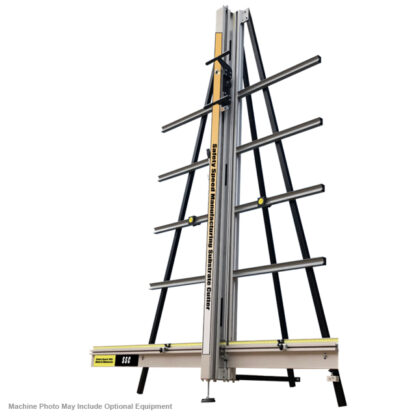

- The new SSC 165A is a revolutionary vertical cutter offering a high degree of performance and accuracy at a cost much less than similar models in the industry
- A truly affordable finishing solution for any sign making business. These units are designed to cut cleanly and accurately without dust and noise. The interchangeable tool cartridges that can be changed in under 10 seconds means that you only buy the tools you need. The cartridge system allows new tools to be developed for new materials giving the SSC 165A virtually unlimited scalability.
IDEAL CUTTING SOLUTION FOR:
-
- Corrugated Plastic (.75”/20mm)
- PVC (.5”, 13mm)
- Foam board (.75”, 20mm)
- Aluminum Composite Panel (.16”, 4mm)
- MDF (.12”,3mm)
- Acrylic (.25”, 6mm)
- Honeycomb board (.75”, 20mm)
- Magnetic sheets (.16”, 4mm)
STANDARD EQUIPMENT:
- Single blade cartridge cutting up to (20mm/.75in)
- Three blade utility cartridge cutting up to 13mm/.5in
- ACM Cutting Wheel cartridge
- Acrylic scoring cartridge
- Wall Mounting Kit
- Clamping System
- Two Production Stops
- Integrated Laser Sight Line
- Integral Counter Weight
- Two Upper Frame Quickstops
SPECIFICATIONS:
Max. Crosscut: 65″/1651mm
Frame Height: 85″/2159mm
Frame Length: 84″/2133mm
Frame Depth: 23″/584mm
Dimensions (Shop): 84″L x 85″H x 23″D
Shipping Dimensions: 108″ x 14″ x 11″
Shipping Weight: 140 lbs.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
OPTIONAL ITEMS – CALL FOR PRICES:
V-Grooving Cartridge
Aluminum Sheet Cartridge
Glass Scoring Cartridge
Free Standing Kit SSC165A
