Description

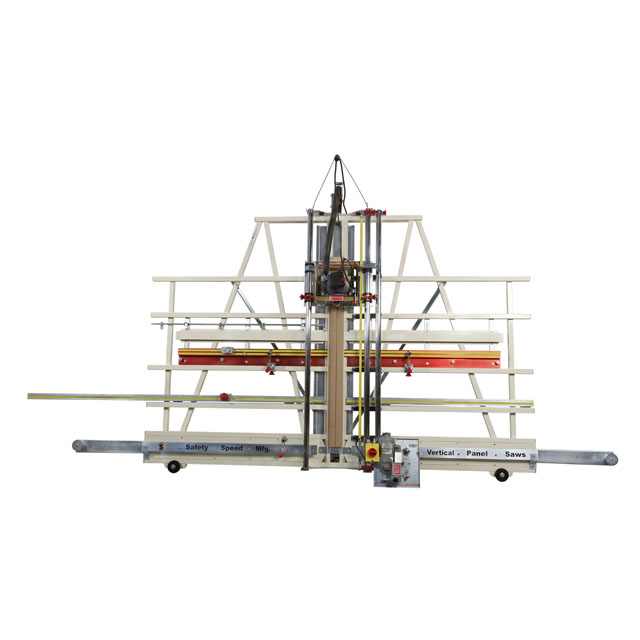

- The SR5UA panel saw/router combo allows operators to saw and rout on one vertical steel frame. The unique design of this unit allows for accurate cutting and V-Grooving of ACM (Aluminum Composite Material) panels. Features a unique floating router with a nylon guide guaranteeing a consistent depth of cut. The saw can also be switched over to a router in less than one minute. It also features a dust system in place to collect debris while cutting and routing.
- 220V motors available
STANDARD EQUIPMENT:
- 3 Hp worm drive saw motor.
- 3-1/4 Hp heavy-duty router motor.
- 10 ft. Welded steel frame.
- Chrome plated 1-3/4” guide tubes.
- 8 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical and horizontal cutting.
- Thin material pressure guard.
- Solid aluminum material rollers.
- Counterweight system.
- Adjustable floating router head.
- MID-WAY FENCE with stop.
- 4 material clamps.
- 2 blind dado stops.
- Wheels.
- Fixed Stand.
- Extensions.
- Left and right quick stop gauges.
- MID-WAY FENCE flip stop.
- Dust hood and hose kit.
- Hold down bar.
- Specialty saw blade and router bit for v-grooving
SPECIFICATIONS:
Max. Crosscut: 62″ / 1,575mm
Max. Rip Cut: Unlimited
Max. Cut Thickness: 1-3/4″ / 45mm
Cut Accuracy, Straight and Square: 1/64″ / .4mm
Saw Blade Diameter: 8″/210mm
Motor: 13 amp, 120V
Router: 15 amp, 120V
Frame Length: 120″ / 3,050mm
Dimensions: 90″ x 120″ x 36″
Shipping Dimensions: 124″ x 17″ x 92″
Shipping Weight: 687 lbs.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
OPTIONAL ITEMS:
*Contact us for full list of optional accessories
