Description

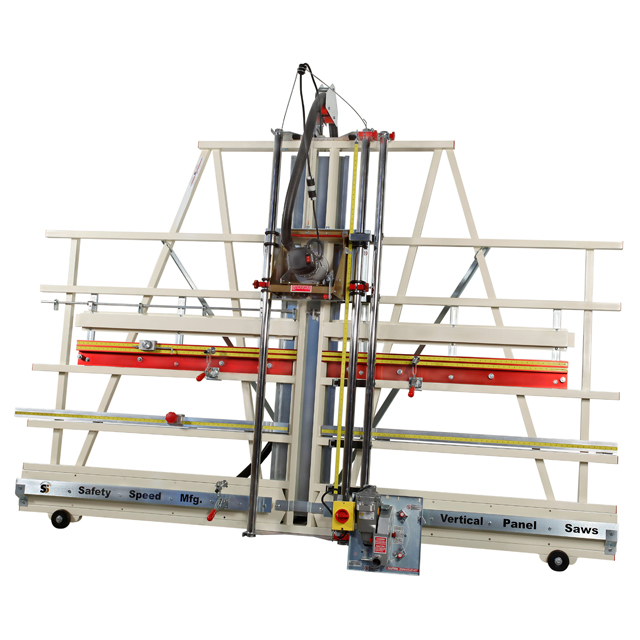

- A big brother to the SR5, the SR5U is equipped with a heavier duty worm drive motor, a 3-1/4 Hp router motor and aluminum material rollers. This machine is perfect for cabinet shops, composite panel fabrication and other applications where both panel sizing and panel routing are required functions. Ask about our V-grooving package.
- 220V motors available
STANDARD EQUIPMENT:
- 3 Hp, worm driven saw motor.
- 3-1/4 Hp, heavy-duty router motor.
- 10 ft. welded steel frame.
- Chrome-plated 1-3/4” guide tubes.
- 8 Nylatron roller bearing system.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard 4 material clamps.
- Integrated dust collection bonnets.
- Solid aluminum material rollers.
- Enclosed counterweight system.
- Adjustable floating router head.
- MID-WAY FENCE with stop.
- MID-WAY FENCE flip stop.
- 2 blind dado stops.
- Extended warranty.
- TUV certified to UL/CSA standards.
SPECIFICATIONS:
Max. Crosscut: 62″ / 1,575mm
Max. Rip Cut: Unlimited
Max. Cut Thickness: 1-3/4″ / 45mm
Cut Accuracy, Straight and Square: 1/64″ / .4mm
Saw Blade Diameter: 8″/210mm
Motor: 15 amp, 120V
Router: 11 amp, 120V
Frame Length: 120″ / 3,050mm
Dimensions: 90″ x 120″ x 36″
Shipping Dimensions: 124″ x 17″ x 92″
Shipping Weight: 589
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
OPTIONAL ITEMS – CALL FOR PRICE:
Accessory Packages: We offer three unique accessory packages that will allow you to customize your machine to best suit your operation at a reduced cost. We know from customer feedback and our own experience that the right accessories can dramatically expand the efficiency and versatility of your panel saw.
- Bronze: Customized to maximize the benefits for building component shops. Includes: QUICK STOP Gauge 5 ft. Saw Blade Fixed Stand Wheels: $676.00
- Silver: Customized to maximize the benefits for crating and packaging shops. Includes: QUICK STOP Gauge 8 ft. Dust Collection Kit (Vacuum additional) Saw Blade Fixed Stand Wheels: $983.00
- Gold: Customized to maximize the benefits for cabinetry and furniture shops. Includes: MID-WAY FENCE QUICK STOP Gauge 8 ft. Saw Blade Fixed Stand Wheels: $1,322.00
*Contact us for full list of optional accessories
