Description

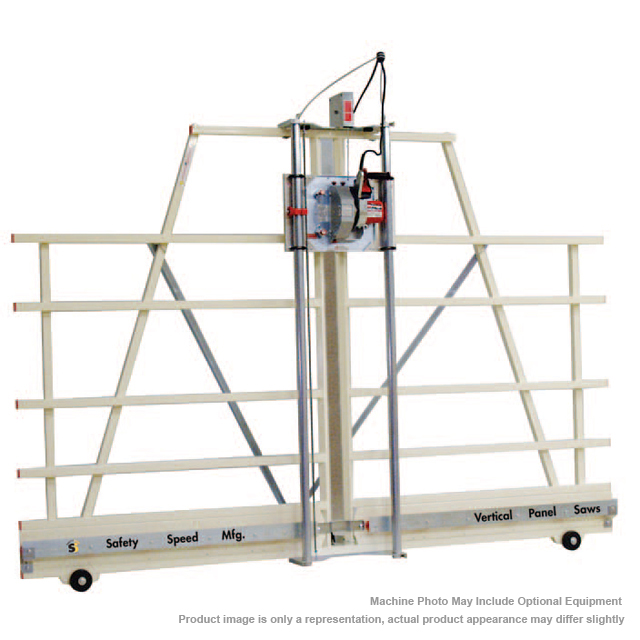

- The H-Series offers full-sized vertical panel saw productivity in economical machines. The popular H-Series saws are ideally suited for customers looking for a full sized vertical panel saw at a very affordable price. These saws are available in three crosscutting heights, 50″, 64″ and 74″ while delivering an accuracy of 1/32″ straight and square. With 3-1/4 HP industrial motors, these versatile saws are used in a variety of panel cutting operations.
- *2″ depth of cut available upon request
SPECIFY MODEL:
H5 – 15 amps, 120 Volt: $3,369.00
H5 – 7.5 amps, 220 Volt: $3,932.00
STANDARD EQUIPMENT:
- 3-1/4 Hp, 15 amp industrial duty saw motor.
- Zinc plated 1-3/4”steel guide tubes.
- 4 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Injection-molded plastic material rollers.
- Spring loaded counter balance system.
- Integrated dust collection bonnet.
- Extended warranty.
- TUV certified to UL/CSA standards
SPECIFICATIONS:
Max. Crosscut: 64″ / 1625mm
Max. Rip Cut: Unlimited
Max. Cut Thickness: 1-3/4″ / 45mm
Cut Accuracy, Straight and Square: 1/32″ / 0.8mm
Saw Blade Diameter: 8″ / 200mm
Motor: 120V, 15amp (220V available)
Frame Length: 120″ / 3050mm
Dimensions: 90″ x 120″ x 36″
Shipping Weight: 318 lbs. / 144 kg
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
OPTIONAL ITEMS – CALL FOR PRICE:
Accessory Packages: We offer three unique accessory packages that will allow you to customize your machine to best suit your operation at a reduced cost. We know from customer feedback and our own experience that the right accessories can dramatically expand the efficiency and versatility of your panel saw.
- Bronze: Customized to maximize the benefits for building component shops. Includes: QUICK STOP Gauge 5 ft. Saw Blade Fixed Stand Wheels: $676.00
- Silver: Customized to maximize the benefits for crating and packaging shops. Includes: QUICK STOP Gauge 8 ft. Dust Collection Kit (Vacuum additional) Saw Blade Fixed Stand Wheels: $983.00
- Gold: Customized to maximize the benefits for cabinetry and furniture shops. Includes: MID-WAY FENCE QUICK STOP Gauge 8 ft. Saw Blade Fixed Stand Wheels: $1,322.00
*Contact us for full list of optional accessories
