Description

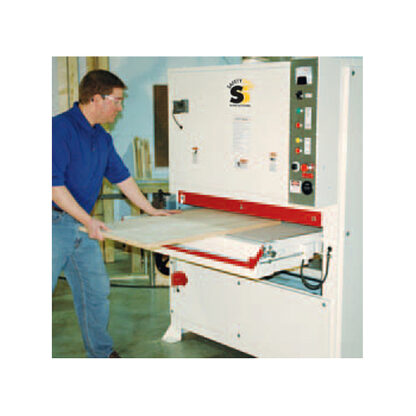

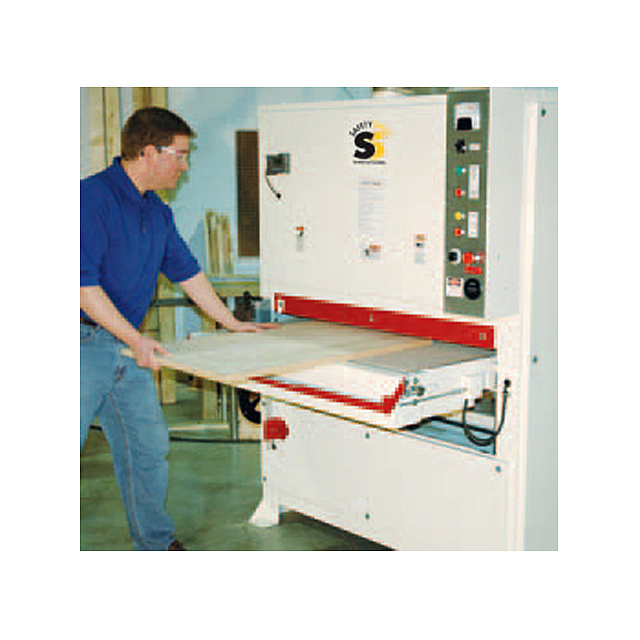

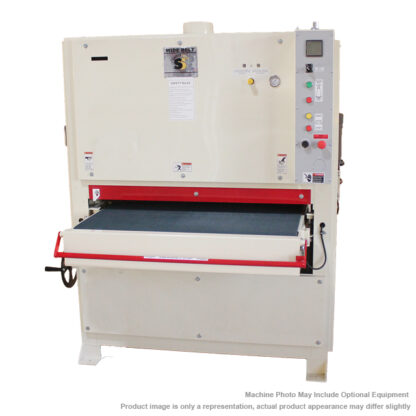

- With heavier construction than the 3760 the 4375 sanders are ready to go to work in your busy shop environment. The larger 75” belt has 25% more abrasive surface than the smaller 60” belt machines. The larger belt translates to increased capacity, less heat accumulation, less maintenance and fewer belt replacements. With a fully adjustable platen, these wide belt sanders for sale will deliver a perfect smooth finish every time.
STANDARD EQUIPMENT:
- Photo electric belt tracking.
- Pneumatic belt tensioning.
- 2-1/2” graphite covered felt pad and adjustable platen.
- 2 rubber-covered pinch rollers 2-1/2” OD.
- 2 machined idler rollers 4-1/4” OD with 1″ bearings.
- Rubber-covered contact roller 5-1/4” OD with 1-5/8” drive bearing.
- Conveyor table set on four 1″ acme thread jackscrews.
- 2 height adjustment indicators.
- 6″ internal dust chute.
- 5 emergency stops.
- 3 year warranty.
SPECIFY MODEL:
4375 – 10 Hp, Single Phase (1~), 220 Volt: $20,961.00
4375 – 20 Hp, 3 Phase (3~), 208 Volt / 230 Volt: $21,473.00
SPECIFICATIONS:
Max. Working Width: 42″ / 1,070mm
Max. Working Length: Unlimited
Min. Working Length: 12″ / 305mm
Max. Working Thickness: 7-1/4″ / 184mm
Min. Working Thickness: 1/8″ / 3mm
Main Motor: 10 Hp, 1 ph, 220V OR 20 Hp, 3 Phase (3~), 208 Volt / 230 Volt
CFM Requirement: 1,000 CFM
Conveyor Speed: 0-18 fpm
Durometer of Contact Roller: 60
Sanding Belt Size: 43″ x 75″
Dimensions: 53″ L x 70″ H x 56″W
Shipping Dimensions: 60″ x 62″ x 71″
Shipping Weight: 2,389 lbs.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR
OPTIONAL ITEMS – CALL FOR PRICE:
WBASCALE – Digital Readout (wide belt sanders) – $748
WBATABLE – Power Lift Table for 4375 (wide belt sanders) – $1,742
WBAHMETER – Hour Meter (wide belt sanders) – $209
100 Grit Sanding Belt for 4375 Wide Belt Sander
120 Grit Sanding Belt for 4375 Wide Belt Sander
150 Grit Sanding Belt for 4375 Wide Belt Sander
180 Grit Sanding Belt for 4375 Wide Belt Sander
40 Grit Sanding Belt for 4375 Wide Belt Sander
60 Grit Sanding Belt for 4375 Wide Belt Sander
80 Grit Sanding Belt for 4375 Wide Belt Sander
