Description

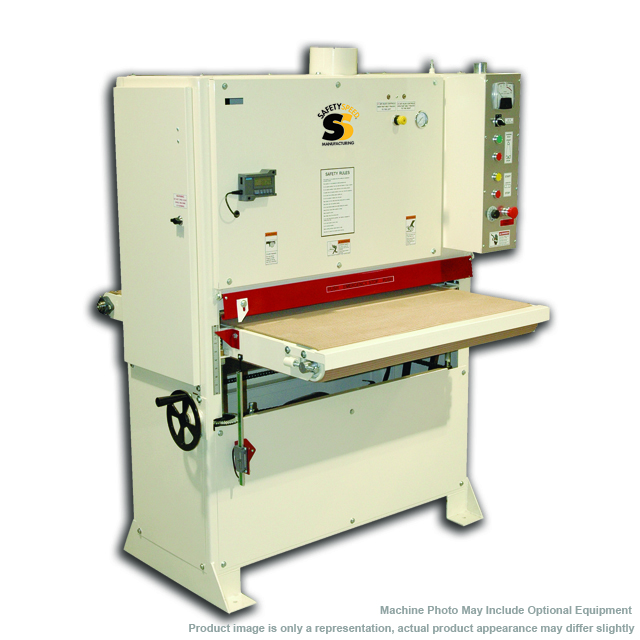

- Our American Made 3760 Wide Belt Sander will improve your finishing time, decrease your hand sanding and increase your productivity. Available with either a 10 horsepower, single phase or a 15 horsepower, three phase motor these American made wide belt sanders are workhorses that will likely outlive you.
- Wide Belt Sanders solve the most tedious challenge that woodworkers face!, the 37X60 Wide Belt Sander is built to last, including the following as standard equipment on this machine.
SELECT MODEL:
3760 – 10 Hp, Single Phase (1~), 220 Volt: $15,169.00
3760 – 15 Hp, 3 Phase (3~) 208 Volt / 230 Volt: $15,682.00
STANDARD EQUIPMENT:
- Photo electric belt tracking.
- 2-1/2″ removable platen.
- 2 height adjustment indicators.
- 5 emergency stops.
- 2 rubber-covered pinch rollers 1-1/2″ OD.
- Rubber-covered contact roller 4-1/4″ OD with 1-3/8″ drive bearing.
- 2 machined idler rollers 2 3/16″ OD with 3/4″ bearings.
- Conveyor table set on four 3/4″ acme-threaded jackscrews
- Pneumatic belt tensioning.
- 3 year warranty.
- 6″ internal dust chute.
- 3/4 Hp conveyor motor
SPECIFICATIONS:
Max. Working Width: 36″ / 915mm
Max. Working Length: Unlimited
Min. Working Length: 12″ / 305mm
Max. Working Thickness: 7-1/4″ / 184mm
Min. Working Thickness: 1/8″ / 3mm
Main Motor:
10 Hp, Single Phase (1~), 220 Volt
(Optional 15 Hp, 3 Phase (3~) 208/230 Volt)
CFM Requirement: 1,000 CFM
Conveyor Speed: 0-18 fpm
Durometer of Contact Roller: 60
Sanding Belt Size: 37″ x 60″
Dimensions: 50-1/2″ L x 60″ H x 36″ W
Shipping Dimensions: 60″ x 60″ x 71″
Shipping Weight: 1,789 lbs
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR
OPTIONAL ITEMS:
WBASCALE – Digital Readout (wide belt sanders) – $748
WBATABLE – Power Lift Table for 4375 (wide belt sanders) – $1,742
WBAHMETER – Hour Meter (wide belt sanders) – $209
