Description

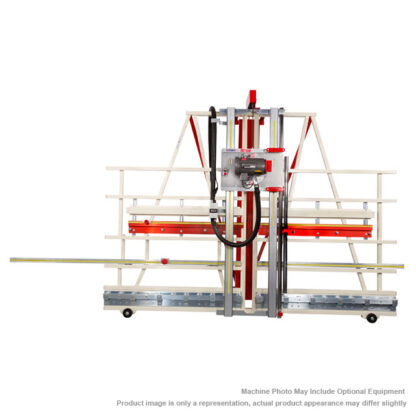

- The 7400 saws are designed for continuous production and tight tolerance cutting. Welcome to cutting at the highest production and accuracy level. If continuous sawing and tight tolerance is required for your operation, these units will deliver. Every component of this saw represents quality and performance. Showcasing 2 Hp, 1~ heavy duty induction motors, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these powerhouse machines will deliver cutting accuracies to 0.005” guaranteed.
SPECIFY MODELS:
7400XL – 2HP, 1~ 230V: $14,862.00
7400XL – 3HP, 3~ 230V: $14,699.00
7400XL – 3HP, 3~ 460V: $14,699.00
STANDARD EQUIPMENT:
- 2 Hp, 1~ continuous duty induction saw motor.
- Welded steel frame and integrated stand system.
- Dual V-track precision guide system.
- Adjustable vertical and horizontal rulers.
- Quick stop gauges (8′ left, 5′ right).
- Saw blade. Quick change from vertical to horizontal cutting.
- Floating pressure saw foot.
- Solid aluminum material rollers.
- Enclosed counterweight system.
- MID-WAY FENCE.
- Dust collection ready.
- Hold down bar.
- Wheels.
- 3 year warranty.
- TUV certified to UL/CSA standards
SPECIFICATIONS:
Max. Crosscut: 64″ / 1,625mm
Max. Rip Cut: Unlimited
Max. Cut Thickness: 2-1/8″ / 55mm
Cut Accuracy, Straight and Square: 0.005″ / 0.13mm
Saw Blade Diameter: 8″ / 200mm
Motor: 2HP, 1~ 230V
Motor: Optional 3HP, 3~ 230V
Frame Length: 156″ / 3,950mm
Dimensions (AxBxC): 96″ x 156″ x 46″
Shipping Dimensions: 160″ x 98″ x 48″
Shipping Weight: 1,050 lbs. / 476 kg
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
OPTIONAL ITEMS – CALL FOR PRICE:
- SAWGEAR: With thinning margins and heavy competition you need a competitive advantage. A Safety Speed Vertical Panel Saw with SAWGEAR will give you that advantage by improving accuracy and overall job quality while reducing waste and rework. Simply enter a dimension on the keypad, SAWGEAR will move, slap your material against the stop and the cut can be made. The keypad is simple and intuitive, allowing anyone to become a cutting pro in just minutes.
- Quick Payback On Your Investment
- Repeatable Accuracy For Dead-On Cuts Every Time
- Reduces Waste and Rework
- Eliminates Time Wasting Manual Processes
- Takes Just Minutes To Set Up and Learn
- Easy To Maintain With Long Term Durability
- Very Safe To Use (UL, CSA, and TUV Certified)
- Retrofit To Other Shop Equipment
- TigerStop: The TigerStop measuring system will turn your 7400 vertical panel saw into an automatic lean production machine. The user simply enters a dimension on the keypad, the stop automatically positions itself and the cut can be made. Operators can learn to run the TigerStop in a matter of minutes and become top performers by the end of the day. When taking into account efficiencies such as increased productivity, reduction in waste, elimination of rework, it’s easy to see how your TigerStop will pay for itself in no time!
- Quick Payback On Your Investment
- Proven Reliability With Guaranteed Accuracy
- Ability To Download Cut Lists From Your Computer (Optional Accessory)
- Optimizes Your Usable Stock Calculating Maximum Yield (Optional Accessory)
- Eliminates Time Wasting Manual Processes
- Control Panel Is Simple To Learn
- Easy To Maintain With Long Term Durability
- Very Safe To Use (UL, CSA, and TUV Certified)
