Description

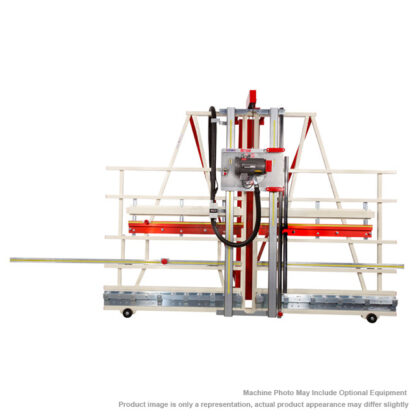

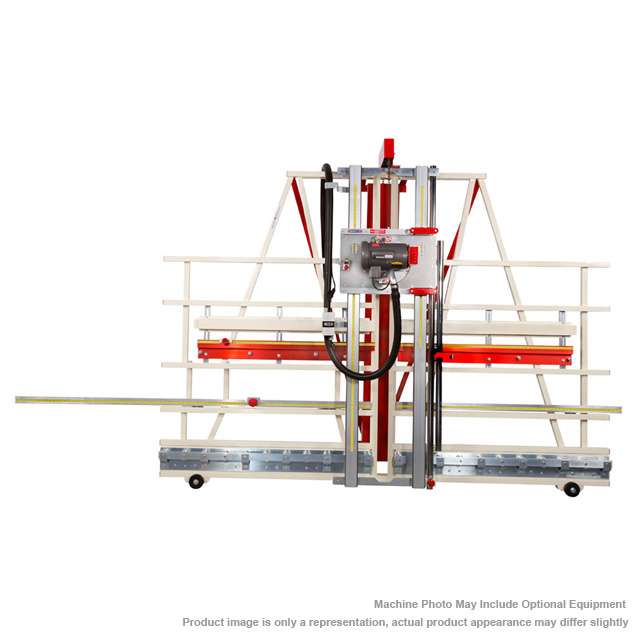

- The 7400 saws are designed for continuous production and tight tolerance cutting. Welcome to cutting at the highest production and accuracy level. If continuous sawing and tight tolerance is required for your operation, these units will deliver. Every component of this saw represents quality and performance. Showcasing 2 Hp, 1~ heavy duty induction motors, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these powerhouse machines will deliver cutting accuracies to 0.005” guaranteed.
SPECIFY MODEL:
7400 – 2HP, 1~ 230V, 11.5 AMPS: $13,017.00
7400 – 3HP, 3~ 230V, 7.6 AMPS: $13,222.00
7400 – 3HP, 3~ 460V, 3.8 AMPS: $13,222.00
STANDARD EQUIPMENT:
- 2 Hp, 1~ continuous duty induction saw motor.
- Welded steel frame and integrated stand system.
- Dual V-track precision guide system.
- Adjustable vertical and horizontal rulers.
- Quick stop gauges (8′ left, 5′ right).
- Saw blade. Quick change from vertical to horizontal cutting.
- Floating pressure saw foot.
- Solid aluminum material rollers.
- Enclosed counterweight system.
- MID-WAY FENCE.
- Dust collection ready.
- Hold down bar.
- Wheels.
- TUV certified to UL/CSA standards
SPECIFICATIONS:
Max. Crosscut: 64″ / 1,625mm
Max. Rip Cut: Unlimited
Max. Cut Thickness: 2-1/8″ / 55mm
Cut Accuracy, Straight and Square: 0.005″ / 0.13mm
Saw Blade Diameter: 8″ / 200mm
Motor: 2 hp, 1~230V
Frame Length: 120″ / 3,050mm
Dimensions (AxBxC): 96″ x 120″ x 46″
Shipping Weight: 950 lbs. / 431 kg
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
OPTIONAL ITEMS – CALL FOR PRICE:
Accessory Packages: We offer three unique accessory packages that will allow you to customize your machine to best suit your operation at a reduced cost. We know from customer feedback and our own experience that the right accessories can dramatically expand the efficiency and versatility of your panel saw.
- Bronze: Customized to maximize the benefits for building component shops. Includes: QUICK STOP Gauge 5 ft. Saw Blade Fixed Stand Wheels: $676.00)
- Silver: Customized to maximize the benefits for crating and packaging shops. Includes: QUICK STOP Gauge 8 ft. Dust Collection Kit (Vacuum additional) Saw Blade Fixed Stand Wheels: $983.00)
- Gold: Customized to maximize the benefits for cabinetry and furniture shops. Includes: MID-WAY FENCE QUICK STOP Gauge 8 ft. Saw Blade Fixed Stand Wheels: $1,322.00)
*Contact us for full list of optional accessories
