Description

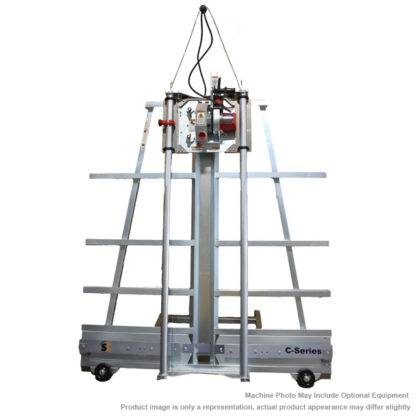

- The 6480-20C is a compact panel saw with a 5’ frame, and a 50” maximum crosscut with a 96” rip cut capacity. Featuring a cut accuracy of 1/32″, and a 1.75″ cut depth, the 6480-20C is eerily similar to our C4 panel saw while having optional accessories built into the price.
These accessories include:
-

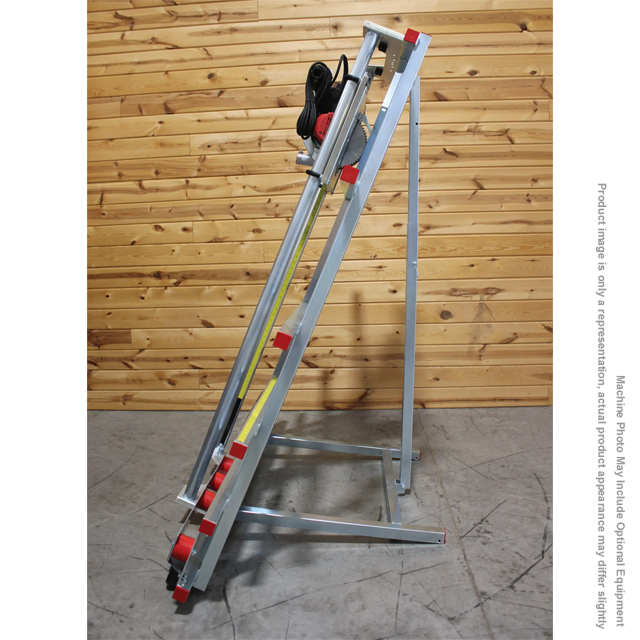

- A portable folding stand and wheels allowing for moving the panel saw around your shop as your day-to-day operations change,
- General-purpose saw blade.
- a dust bonnet allowing you to set your machine up for collecting dust
- The 6480-20C Panel Saw replaces the Milwaukee Tool 6480-20 Panel Saw, a private label that Safety Speed Manufacturing made out of their Minnesota factory for Milwaukee Tool for the last 40 years. The 6480-20C includes a 3.25 horsepower Milwaukee Tool motor. The dust collection kit and vacuum for collecting as much dust as possible are optional accessories. This machine is only available within North America.

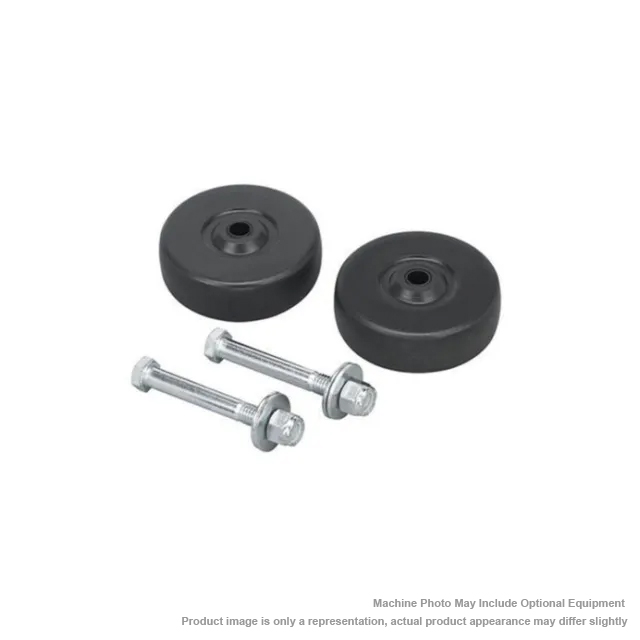

- Wheels and a folding stand provide portability for your compact panel saw and allow you to move it around your shop as you see fit.
STANDARD EQUIPMENT:
- 3 ¼ Hp, 15 amp industrial, Milwaukee Tool motor.
- Folding Stand
- Wheels
- Zinc plated 1 ¾” steel guide tubes.
- 4 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Injection-molded plastic material rollers.
- Spring loaded counter balance system.
- Integrated dust collection bonnet.
- Extended warranty.
- TUV certified to UL/CSA standards
SPECIFICATIONS:
Max. Crosscut: 50 in.
Max. Rip Cut: 96 in.
Cut Depth: 1.75 in.
Cut Accuracy: 1/32 in.
Motor: 3.25 Hp, 15 amp
Frame Length: 5 ft. (60 in.)
Dust Port Diameter: 1.5 in.
Machine Weight: 154 lbs.
Crated Weight (Qty 1): 200 lbs.
Crated Dimensions (Qty 1): 62 x 10 x 72 in.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
WARRANTY: LIFETIME – Frame
OPTIONAL ITEMS – CALL FOR PRICE:
Accessory Packages: We offer three unique accessory packages that will allow you to customize your machine to best suit your operation at a reduced cost. We know from customer feedback and our own experience that the right accessories can dramatically expand the efficiency and versatility of your panel saw.
- Bronze: Customized to maximize the benefits for building component shops. Includes: QUICK STOP Gauge 5 ft. Saw Blade Fixed Stand Wheels: $676.00
- Silver: Customized to maximize the benefits for crating and packaging shops. Includes: QUICK STOP Gauge 8 ft. Dust Collection Kit (Vacuum additional) Saw Blade Fixed Stand Wheels: $983.00
- Gold: Customized to maximize the benefits for cabinetry and furniture shops. Includes: MID-WAY FENCE QUICK STOP Gauge 8 ft. Saw Blade Fixed Stand Wheels: $1,322.00
*Contact us for full list of optional accessories
