Description

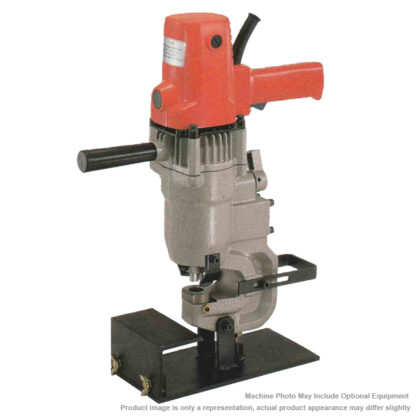

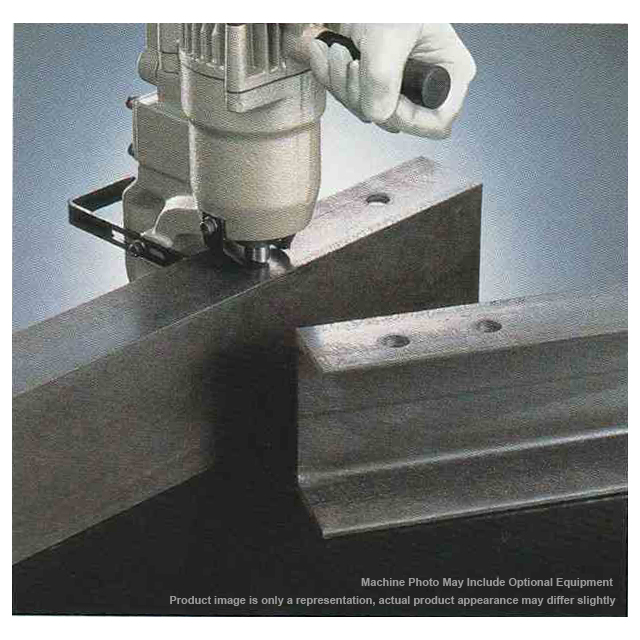

- Self-contained hydraulic punch shows its power in making round or elongated holes in flat bar, angle bar or channel iron.
ACCESSORIES INCLUDED:
- 3mm / 4mm / 5mm Allen Wrench
- Stand Assembly
- EL Punch 18 / EL Die 18B / EL Die 18A Mounted on Machine
- Spanner 10 x 12
SPECIFICATIONS:
Max. Punching Diameter: 13/16″
Max. Punching Thickness: 1/4″
Max. Output: 17 Tons
Power Source (Single Phase): 110-120V AC 50/60 Hz
Rated Power Consumption: 670 W
Rated Current: 7.0 A
Max. Punching Diameter: 13/16″
Max. Punching Thickness: 1/4″
Max. Throat Depth: 2-3/16″
Punching Time: 2 sec.
Weight: 31 lbs.
SELECTION OF DIES:
|
Application
|
Type of Die
|
Plate Thickness
|
|
|
Mild Steel
|
Stainless Steel
|
||
|
For Thin Sheets
|
A
|
1/16″ – 1/8″
|
Max. 1/8″
|
|
For Thick Sheets
|
B
|
5/32″ – 1/4″
|
Max. 5/32″
|
|
For Channel Iron
|
C
|
9/32″ – 5/16″
|
N.A.
|
OPTIONAL ITEMS:

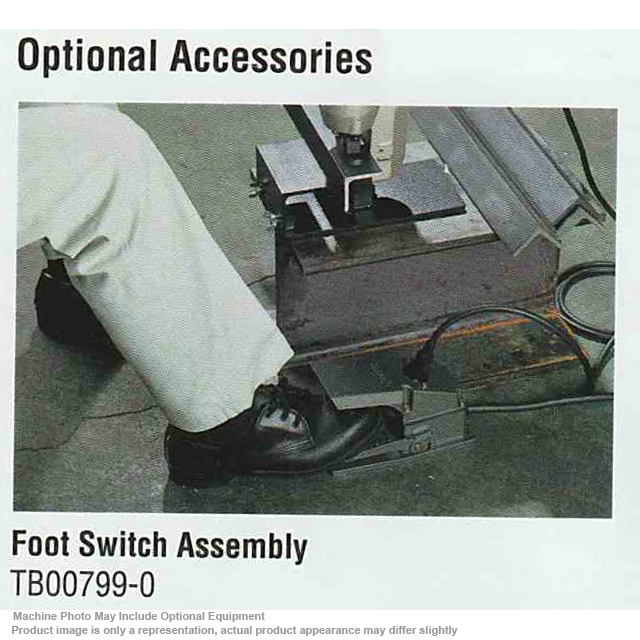

TBO00799-0: Foot Switch Assembly: Call for price

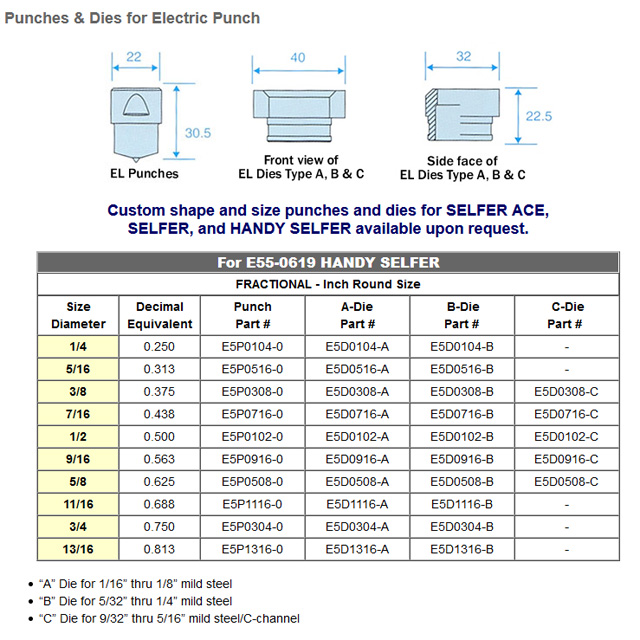

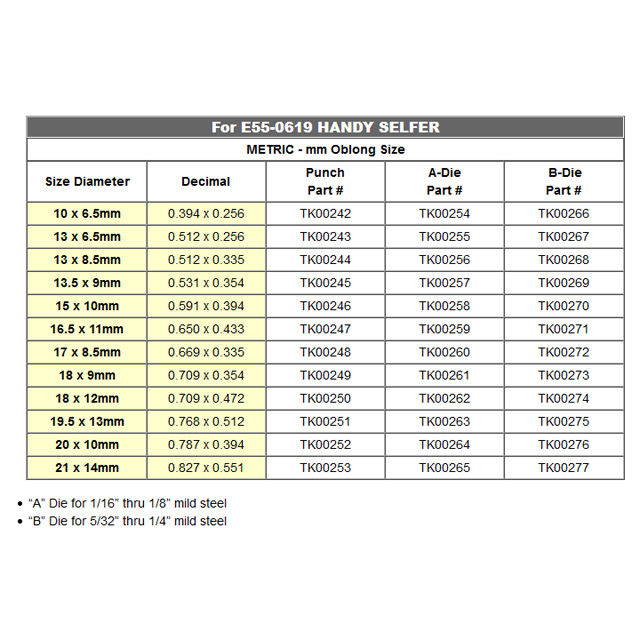

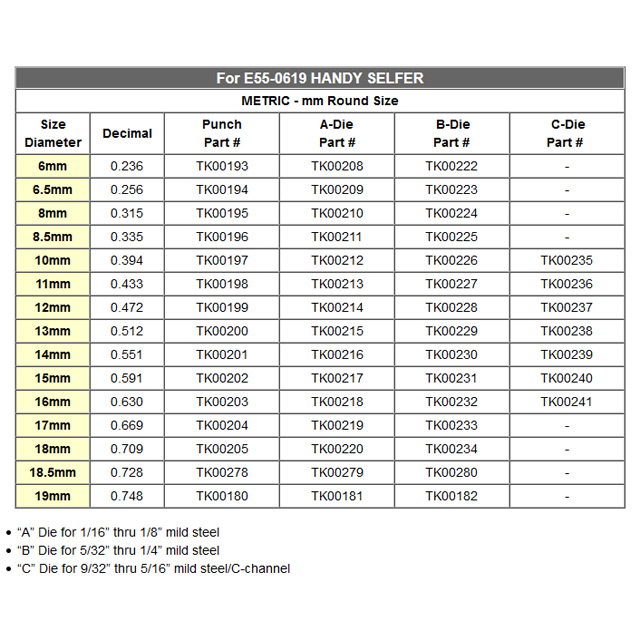

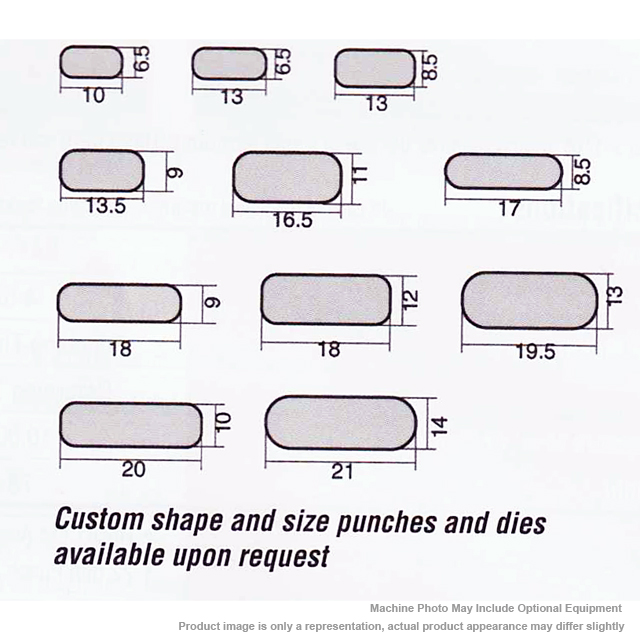

Punches and Dies for Handy Selfer – see photos, Call for price
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
