Description
- XP = XTRA PRODUCTION
- Our XP models are made and designed with production in mind. These models are efficient with an equipped 1.5HP Baldor motor, 2 stage gear pump that produces 26 stokes per minute. This XP model comes standard with a plethora of tooling and accessories designed for high-output production.
- We ensure the highest quality standards, souring 100 percent of our components in the
USA. Quality you can trust, and backed industry leading 3 year warranty. - You can find our METALpro Ironworkers with one of our 100+ distributors across the US. With 30 years of dedicated service to this industry we have developed a strong dealer network dedicated to taking care of our customers! Choose METALpro!
- APPLICATIONS – All in one ‘fabrication shop’ with capabilities in:
- Punching
- Forming
- Shearing
- Pressing
- Notching
- Pipe notching
- Bending
- *Rated on 65,000 PSI Tensile
- **NOTCHERS AND OTHER CUSTOM TOOLING SOLD SEPERATELY
- Made in the USA
STANDARD FEATURES:
- HI-LO 2 stage gear pump, 1.5HP Baldor Motor
- Punch capacity of 45 tons

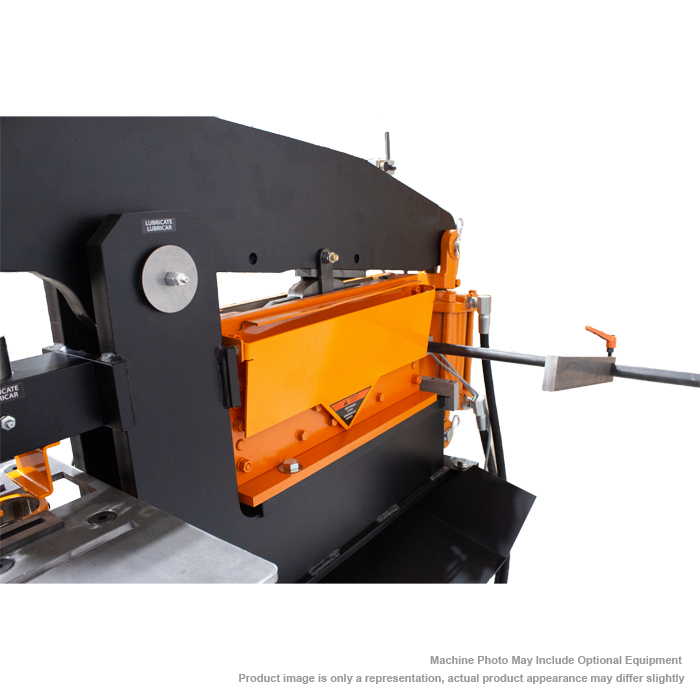

- Power cavity with 3-in-1 8 inch shear
- 12 inch brake with back stop and guide table
- 8 piece punch and die set (standard bolt hole sizes)
- Wheel kit for maneuverability
- Stroke control kit with micro-adjust

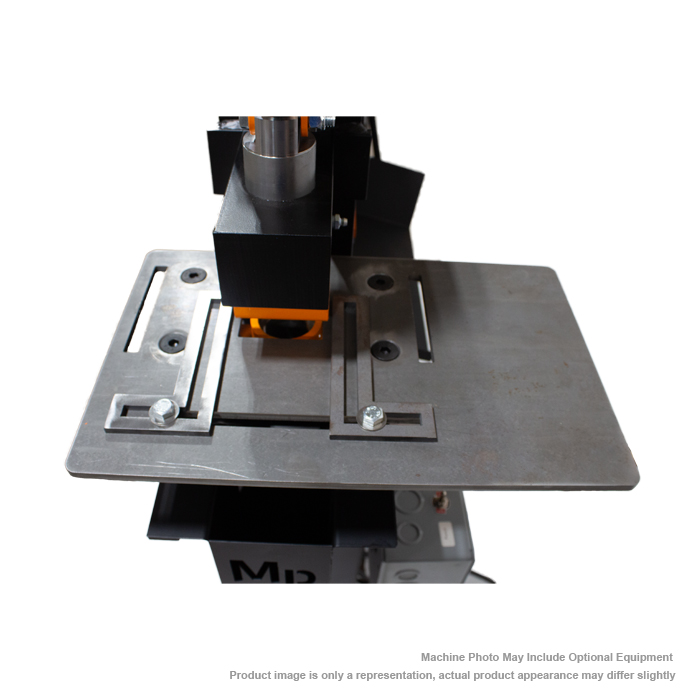

- Punch and shear station guide tables
- Built in slug catcher
- Guarding complies with ANSI B11-8 standards
- 3 year warranty
SPECIFICATIONS:
| MODEL | MP5000XP | |
|
SPEED
|
Strokes per minute | 24 |
| Motor | 110V AC single phase, 1.5 HP, 2 Stage Pump |
|
| Capacity | 50 Tons | |
| Throat Depth | 3-3/4″ | |
| Punch | 50 ton max capacity | |
|
SHEAR
|
Flat bar | up to 1/2″ |
| Angle | 1/4″ x 4″ x 4″ | |
| Rod | 3/4″ | |
| Square | 5/8″ | |
| Hydraulics | 2900 PSI | |
| Oil capacity | 1.5 US gallons | |
|
ACCESSORIES (Included)
|
Brake | 12 inch brake w/ back stop and front guide table |
| Limit Switch Kit | stroke control with microadjust | |
| Guide Plates | punch station plate and shear shelf extension |
|
| Slug Catcher | holds hundreds of slugs | |
| Wheel kit | locking casters | |
| Shear back stop | adjustable shear back stop for repeat cuts | |
| Punch and die set | 8 piece PD set (standard bolt hole sizes) |
|
|
FRAME DIMENSIONS
|
Width | 24″ |
| Height | 59″ | |
| Length | 36-1/2″ | |
| Weight | 900 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR
