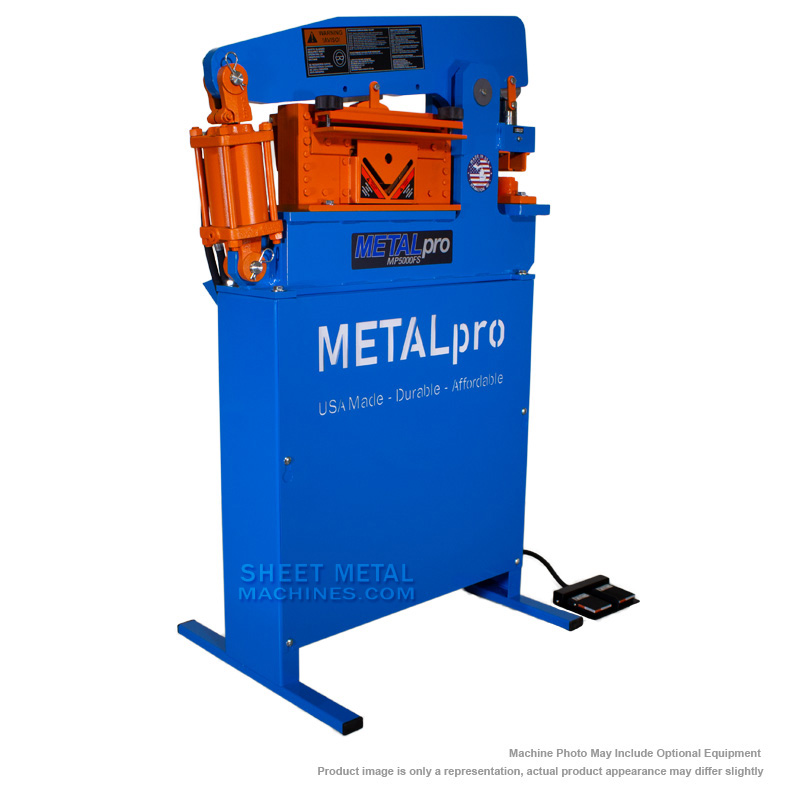

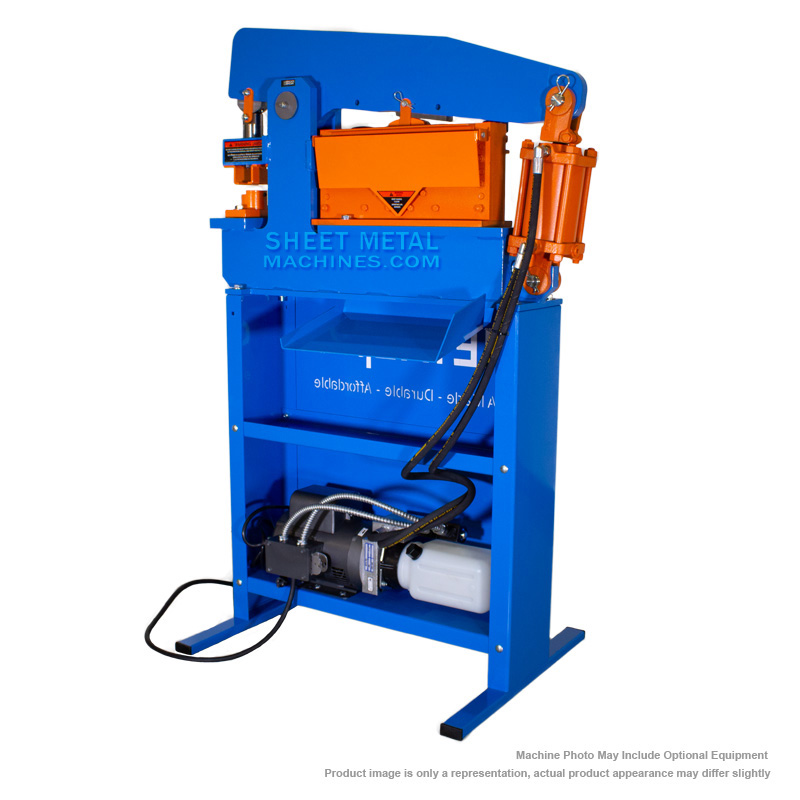

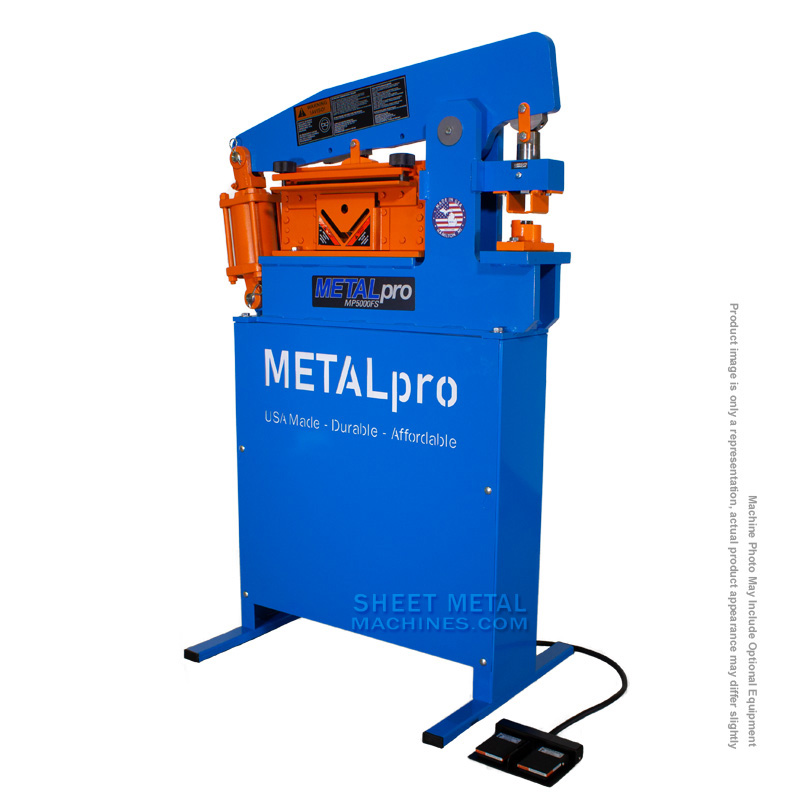

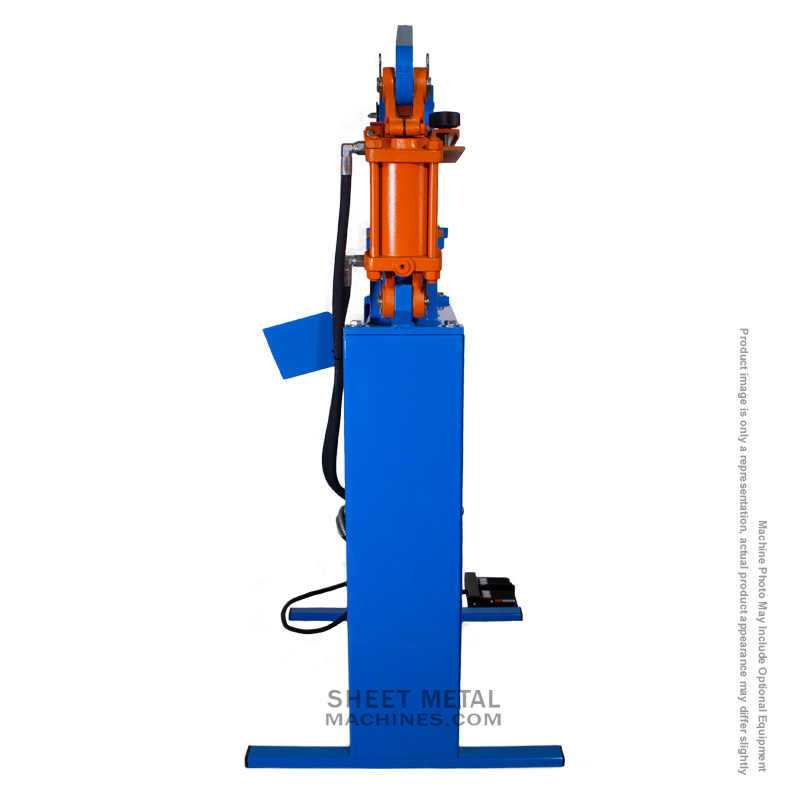

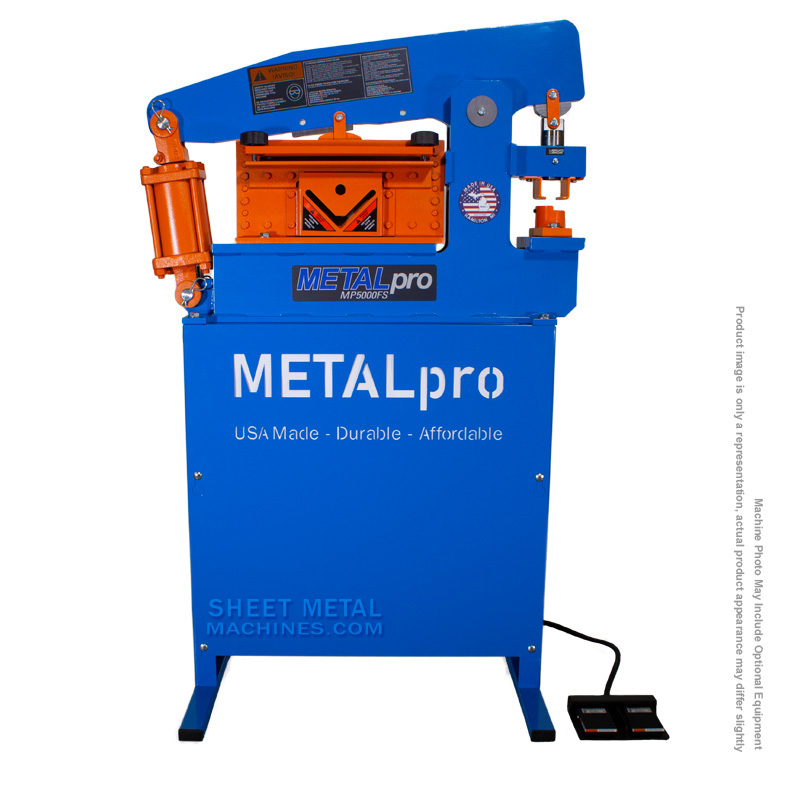

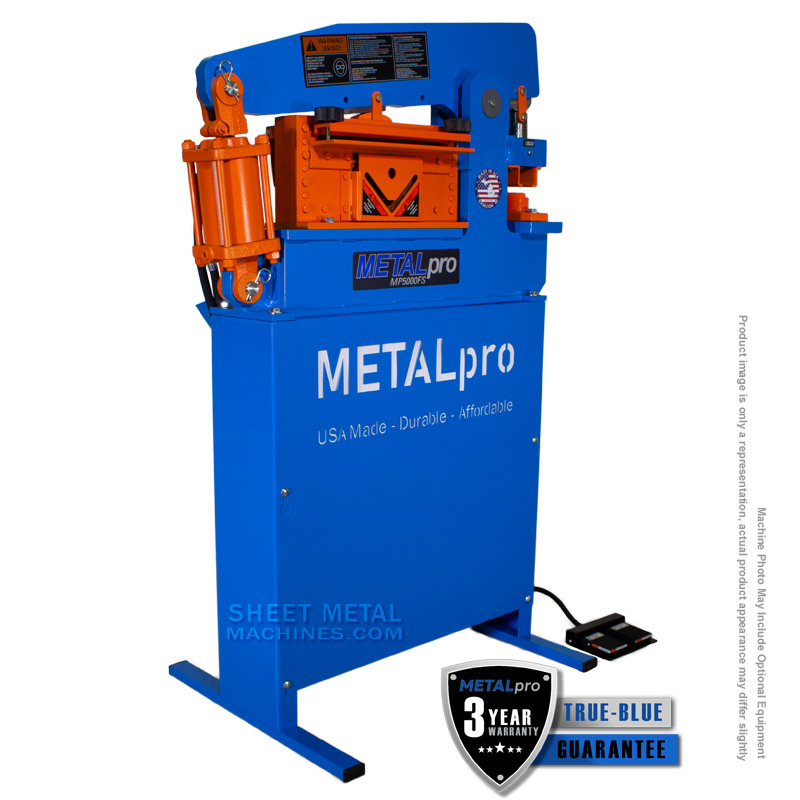

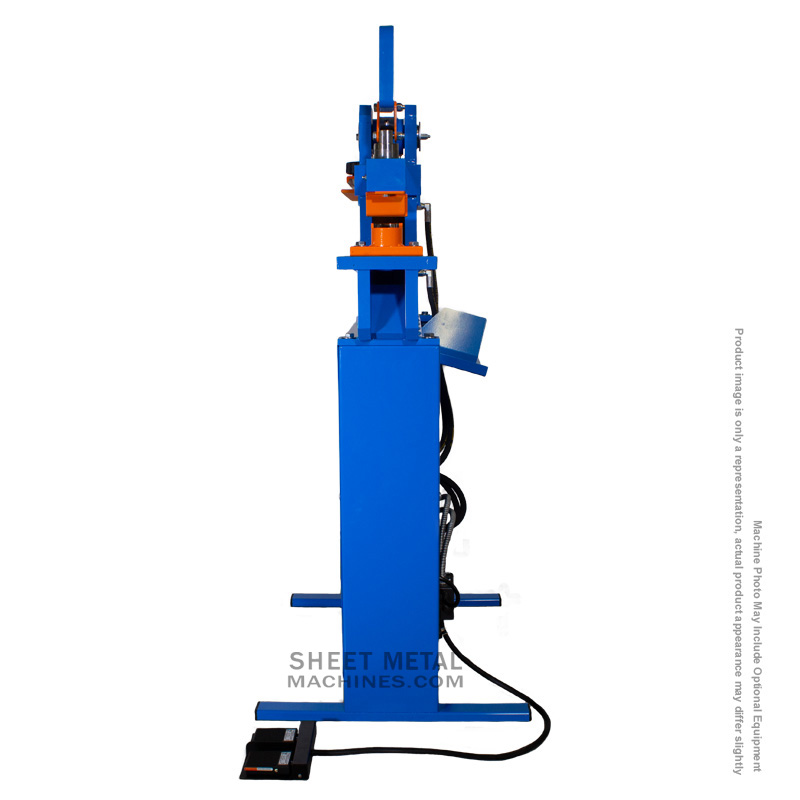

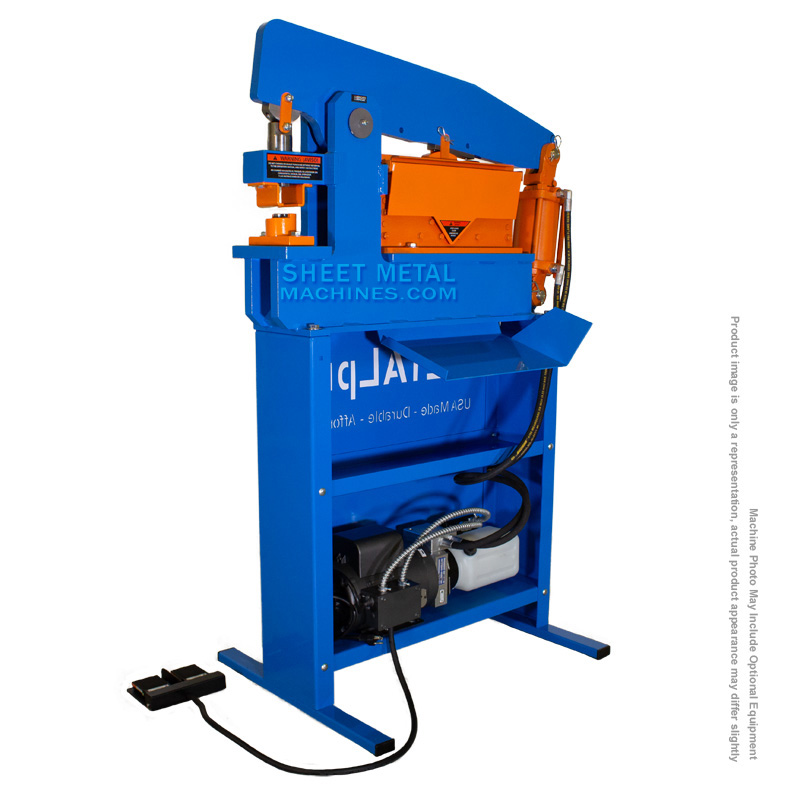

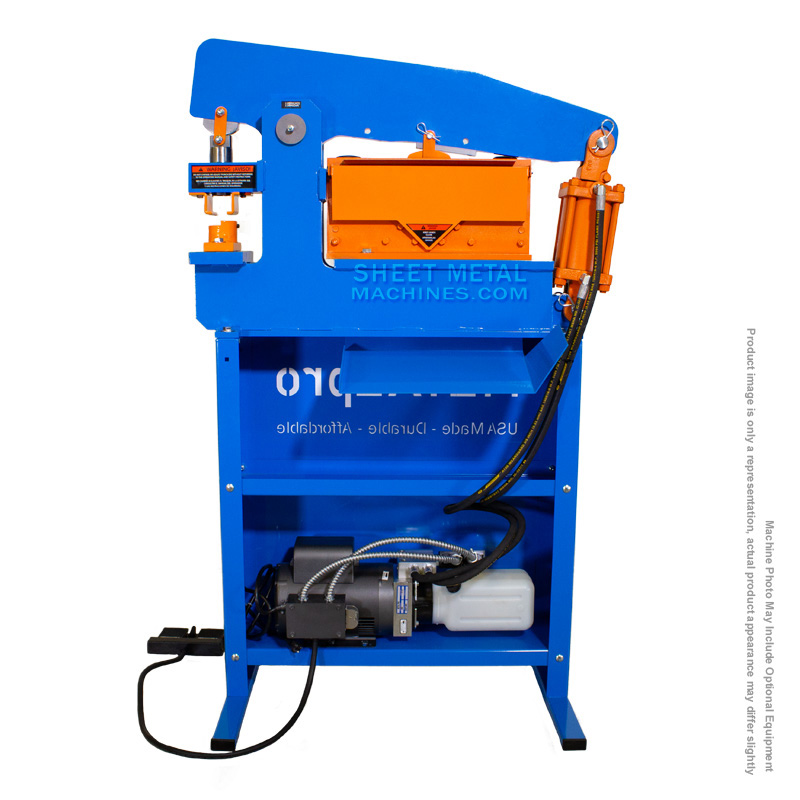

Description
- The machine is ready with die holder, stripper, and punch retaining nut. The punch station can be used with a range of notchers, custom shape punching, and forming operations. The punch ram and retaining nut are machined and heat treated for long life.
- Shear handles flat bar, round, square, and angles in one quick set up. All wear parts and blades made from heat treated, high grade tool steel.
- The large 11 x 16″ power cavity delivers 28 tons at the shear. The outboard punching station delivers 50 tons at the punch and is designed to work with a variety of METALpro accessories:
- Round, square, oblong, and custom shaped punches and dies
- Heavy duty notcher
- Brakes
- Pipe notcher
- Wheel kit
- Lower cost alternative to higher priced equipment
- More fabricating capabilities per dollar spent on equipment
- Just as fast and accurate as expensive machines
- Works in any shop – plugs into standard 110V 20 amp outlet
- One year warranty
- Punch capacity of 50 tons
- 3-3⁄4″ throat depth
- 2″ die holder, punch retaining nut and stripper
- Power cavity with 3-in-1 shear
- Guarding complies with ANSI B11-8 standards
- Meets American National Safety Standards for ironworkers
- Optional brakes and custom tooling sold separately
- All in one ‘fabrication shop’ with capabilities in:
- Punching
- Forming
- Shearing
- Pressing
- Notching
- Pipe notching
- Bending
- MADE IN USA
SPECIFICATIONS:
SPEED
Strokes per minute: approximately 6-8
Motor: 110V AC single phase, 1-1/2 horsepower
Capacity: 50 Tons
Throat Depth: 3-3/4″
Punch: 50 Ton max capacity
SHEAR
Flat bar: 1/4″ x 12″ and 3/8″ x 8″
Angle: 1/4″ x 4″ x 4″
Rod: 3/4″
Square: 5/8″
Hydraulics: 2900 PSI
Oil capacity: 1.5 US gallons
ACCESSORIES
Brake: 28 Tons
Notcher: optional 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 inch sch. 40
Picket Tool optional: 1/2, 5/8, 3/4 inch
Pressing: Custom tooling available
FRAME DIMENSIONS
Width: 24″
Height: 59″
Length: 36-1/2″
Weight: 625 lbs.
OPTIONAL ITEMS:
- Optional brakes and custom tooling sold separately
