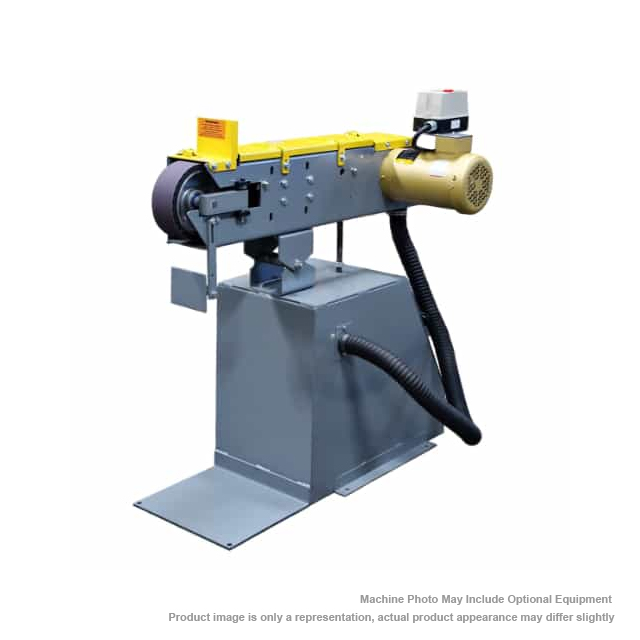

KALAMAZOO KS490 4×90 in. Wide Belt Grinders

Description

• Need to clean castings regularly? With a belt speed of 7200 FPM and a 3HP or 2HP motor, the KS490 4 x 90 inch industrial grinder will hog off iron quick and cool. The belt grinder head is adjustable to accommodate work height. A hinged panel on the side of the grinder head allows for a quick and easy part and sanding belt replacement.
• Made in the USA
• Powerful 2 HP- 1PH 230V (only) and or 3 HP 3 PH 230V or 460V motor (specify at time of order).
• 24-1/2 in. long steel reversible and replaceable platen.
• Direct drive.
• Replaceable contact wheel specifications: 8″ OD x 4″ W serrated 70 duro with sealed ball bearings.
• On/off switch.
• Belt size: 4″ x 90″. All belt types can be used.
• Spring belt tension.
• Quick release belt tension release lever.
• Easy belt tracking.
• Material stop.
• Removable steel platen guard.
• Adjustable steel work table.
• Adjustable belt grinder head.
• Hinged door on grinder head for quick belt and change.
• Multi-position horizontal through vertical.
• Steel base

DESIGNED TO THE FOLLOWING

• • Bevel
  • Deburr
  • Squaring up ends
  • Rounding corners
  • Flatwork
  • Contouring
  • Heavy metal removal
  • Aggressive grinding
  • Sharpening
  • Clean castings
  • Hog off iron

OPTIONAL MODELS:
KS490: 4″ x 90″ Belt Grinder (2 HP- 1PH 230V (only) and/or 3 HP 3 PH 230V or 460V motor (specify at time of order) – $3,775.00
KS490V: 4″ x 90″ Belt Grinder with Dust Collector – $3,995.00

SPECIFICATIONS:

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
