Description

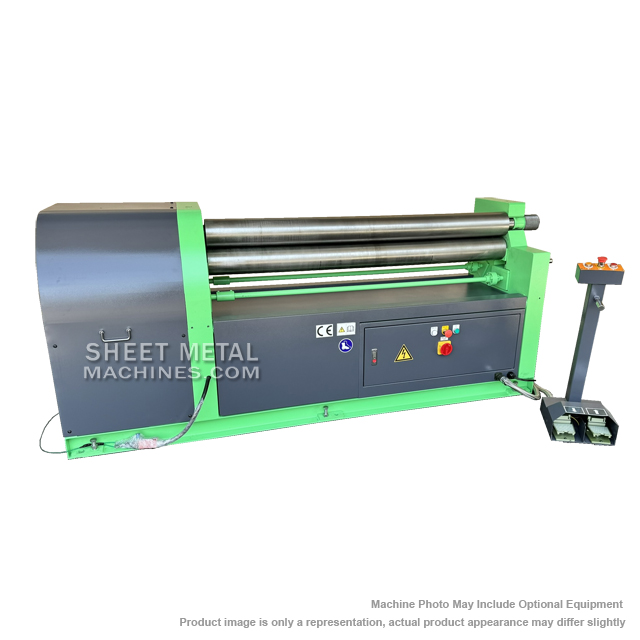

- The HM Machinery MRM 1550-130 Power Roll is a heavy duty motorized bending roll, with 3 rolls mounted on solid steel gable-ends, for heavy gauge, large scale fabrication.
- The MRM Power Roll can accommodate sheets up to 60″ wide and 120″ in length, with a material capacity of 3 gauge mild steel. Roll position is easily adjusted via a powered gear system.
- With both upper and lower rolls driven, plus a high polished finish, preventing damage to pre-finished components or marking of materials is easily avoided.

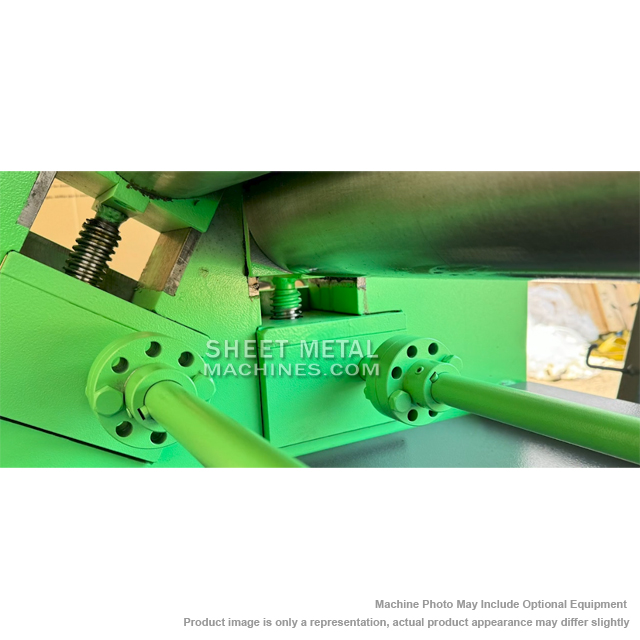

- Upper and lower rolls are driven directly via a hardened gear system.

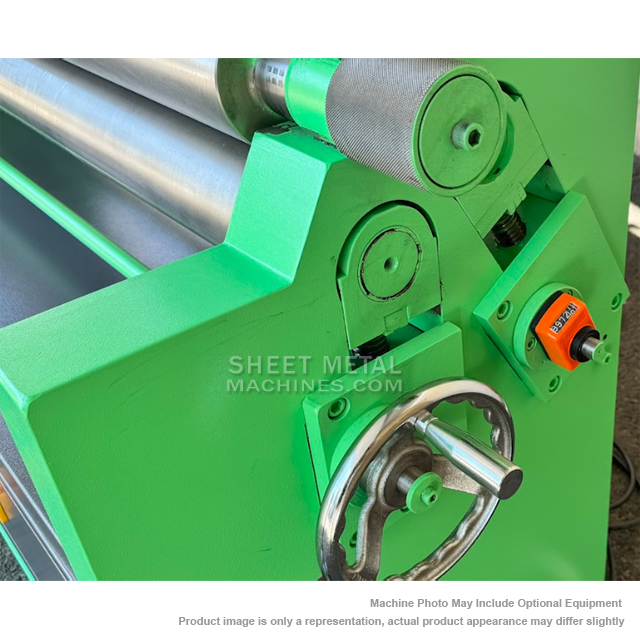

- Upper roll swings out to allow easy removal of finished metal roll

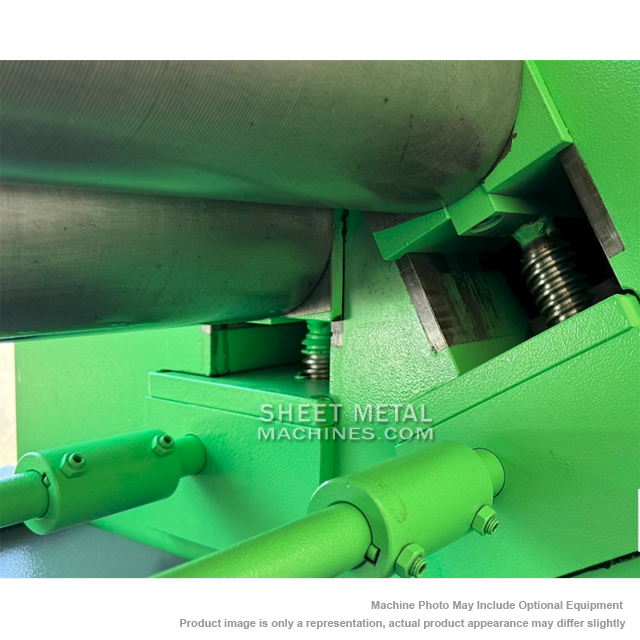

- Easy and accurate adjustment of all 3 independently-mounted rolls to accommodate varying material thicknesses and bend profiles

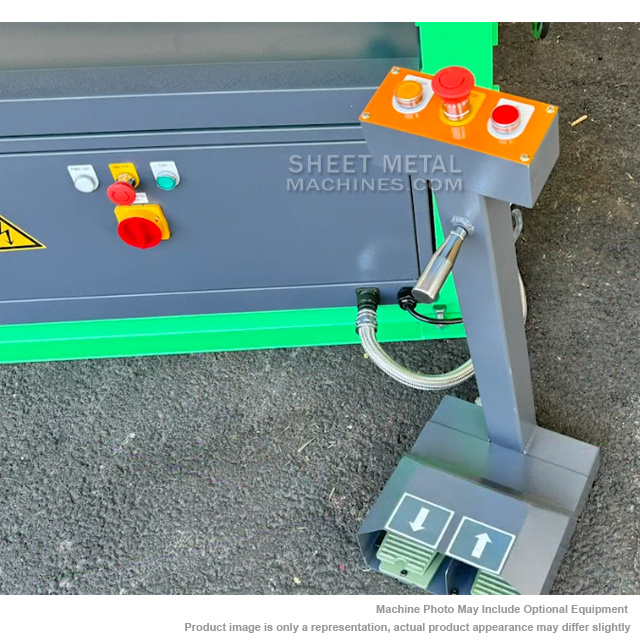

- Mobile control panel with 3 position foot pedal (including emergency stop)
SPECIFICATIONS:
Maximum Material Width: 60 in. (5 ft)
Maximum Material Capacity: 3 Gauge Mild Steel
Roller Diameter: 5 in./130mm
Minimum Bending Diameter: 7.7 in./195mm
Motor: 3 HP
Approx. Shipping Dimensions: 107 W x 26 D x 42 H in.
Approx. Shipping Weight: 3,200 lbs.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
