HE&M V100HA-HC-CTS Automatic Vertical Bandsaw

Call for Price

SKU: V100HA-HC-CTS Category:
HE&M Saws

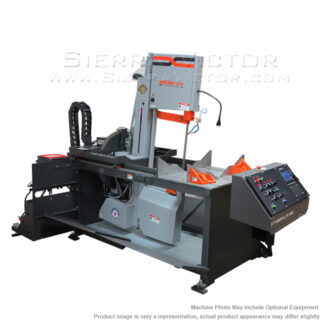

HE&M 18 inch Automatic Vertical Bandsaw V100HA-HC-CTS

  • V100HLA-3HC-CTS is a “high column” version of the VT100HLA. It has an expanded height capacity of 31” at 90ᵒ which allows an 18” capacity for 45ᵒ cuts. It is equipped with a 48” bar-feed that is capable of multiple indexes controlled by touch-screen control. Two vises are included.
  • Swing-Away Control Console w/ 8″ Touch Screen
  • Computer Controlled Feed System
  • Power Programmable Tilt from Touch Screen
  • Vise – Full Stroking Main & Feed
  • Adjustable Clamping Force
  • Electronic Controlled Traverse (Controls Feed Rate & Cutting Force)
  • Variable Blade Speed w/ Readout on Touch Screen
  • Guide Arm – Powered
  • Powered Blade Tension
  • Passive “Cut Watcher” System
  • Idle Base Rollers – 1 Each Side of Base
  • Coolant System – Flood w/ Wash-Down Hose
  • Boltable Side Wings for Coolant Drainage
  • Blade Brush
  • Broken Blade Function
  • Out-of-Stock Function
  • Blade Change Interlock
  • Safety Guards
  • 220V/3PH or 440V/3PH Electrical Motor Requirement – This is Not a Dual Voltage Machine
ITEM: 18″ Automatic Vertical Bandsaw

Item/Model: HEM V100HA-HC-CTS

Additional information

Weight 3000 lbs



HE&M Saws offer more than 70 different models of production band saws for the metalworking industry including vertical, horizontal, plate and double column saws with capacities ranging from 12" x 12" to 60" x 60".
