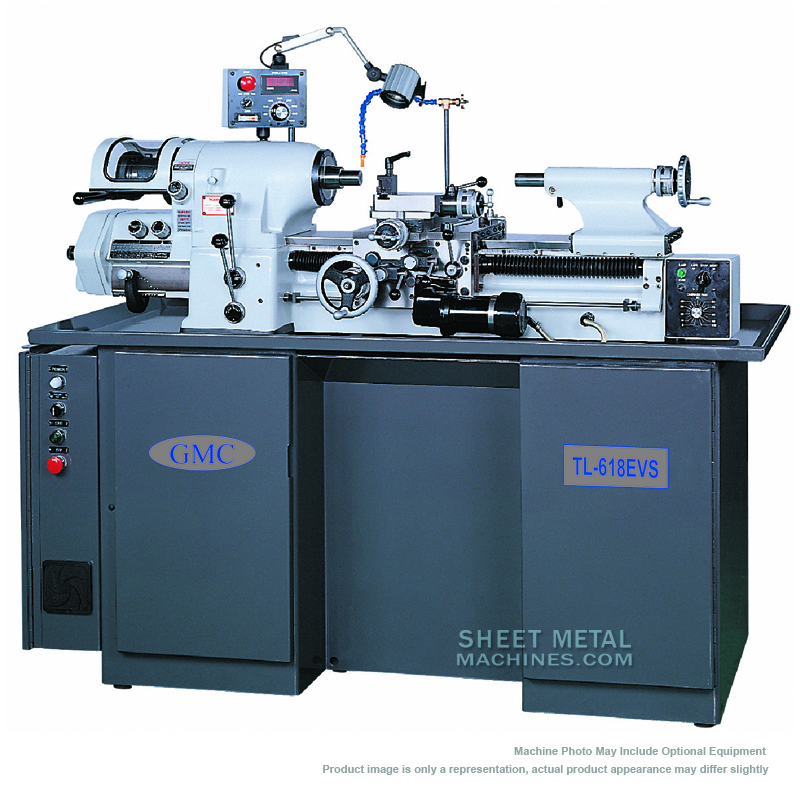

Description
- Made in Taiwan
- ISO 9001 certified
- Spindle run-out within 0.00005” ( 50 millionths inch )
- Turcite-B coating on guideways
- 3HP Yaskawa inverter drive spindle motor
- Infinity Yaskawa inverter drive spindle speeds from 0-4,000 rpm
- Easy to read digital readout on actual spindle rpm speeds
- Electric variable automatic feeding control on carriage and cross slide
- Quick change tool post slide for threading
- Dual range inch/metric quick change gear box for model # GMCTL-618EVS
- Digital control and inverter drive gearbox ( no change gear ) for #GMCTL-618E, easy cutting threads, variable inch / metric threads range
- Automatic thread length control w/ fine adjustable stops for accurate threading
- 36 kinds of inch threads, and 36 kinds of metric threads
- Spindle is balanced, hardened and precision ground
- High precision pre-loaded angular contact bearings for spindle
- Lubrication system for headstock, feed box, ways and leadscrews
- Power 220V, 3 phase ( 220V, 1 phase is optional )
- One year industrial warranty for parts
- This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported
- DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
STANDARD EQUIPMENT:
- 5C collet closer installed
- Quick change gear box
- 8” drive plate with drive dog
- Dual inch / metric dials
- CARMAR DRO, Installed
- Coolant system
- Halogen work light
- Tool box with tools
SPECIFICATIONS:
|
Max. swing over cross slide
|
6″
|
|
|
Distance between centers
|
18″
|
|
|
Max. swing over bed
|
11″
|
|
|
Swing over carriage
|
9″
|
|
|
Spindle Capacities
|
with 3-jaw chuck
|
6″
|
|
with expanding collets
|
3″
|
|
|
with round 5C collets
|
1-1/16″
|
|
|
with hexagon 5C collets
|
7/8″
|
|
|
with Square 5C collets
|
3/4″
|
|
|
with step chucks
|
1-1/16″ to 6″
|
|
|
Spindle nose diameter
|
2.189”
|
|
|
Spindle nose ID/OD
|
5C / 4 degree taper
|
|
|
Spindle thru hole
|
1-1/4”
|
|
|
Bar stock diameter with 5C closer
|
1-1/16”
|
|
|
Variable spindle speeds
|
0-4,000 rpm (5C)
0-3,000 rpm (with 6” 3-jaws chuck) |
|
|
Leadscrew diameter / pitch
|
1” / 8TPI
|
|
|
Carriage power feed speed range
|
5/16” to 7” /min
|
|
|
Cross slide power feed range
|
3/16” to 4” / min
|
|
|
Cross slide travel
|
6″
|
|
|
Quick change compound slide travel
|
0.1″
|
|
|
Compound slide travel
|
3″
|
|
|
Inch threads
|
11-118 TPI , 36 kinds
|
|
|
Metric threads
|
0.275-2.7mm, 36 kinds
|
|
|
Tailstock quill diameter
|
1-3/8”
|
|
|
Tailstock quill taper
|
MT# 2
|
|
|
Tailstock quill travel
|
3-3/4”
|
|
|
Spindle motor ( inverter drive )
|
3HP, 220V, 3 phase
|
|
|
DC feeding motor
|
110V, 70 W
|
|
|
Inverter drive for gear box
|
—
|
|
|
Coolant pump
|
1/8HP, 220V, 3 phase
|
|
|
Machine weight , approx
|
2,530 lbs.
|
|
|
Machine dimensions, LxWxH
|
73 x 30 x 67 in.
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
OPTIONAL ITEMS:
|
PART #
|
ITEM
|
PRICE
|
|
TA-618EVS
|
Taper Attachment, Installed
|
$3,150.00
|
|
3900-0014
|
33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth
|
$595.00
|
