Description
SPECIFICATIONS
|
Capacity
|
Galvanized sheet
|
24 Ga. to 18Ga.
|
|
Flattened Hem
|
||
|
Open Hem
|
||
|
Teardrop Hem
|
||
|
Rope Hem
|
||
|
Pittsburgh lock, 5/16” width
|
||
|
Double seam
|
||
|
Drive Cleat
|
||
|
Max hemming width
|
3/8 in.
|
|
|
Station numbers
|
9 stations with 9 pairs of rolls on each side
|
|
|
Feeding speed
|
21 fpm
|
|
|
Main motor
|
4 HP, 220V, 3-phase
|
|
|
Amperage draw
|
15amps
|
|
|
Weight Approx
|
685 lbs.
|
|
|
Machine Dimensions, LWH
|
60 x 25 x 40 in.
|
|
|
Machine shipping dimensions, LWH
|
62 x 27 x43 in.
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
FEATURES

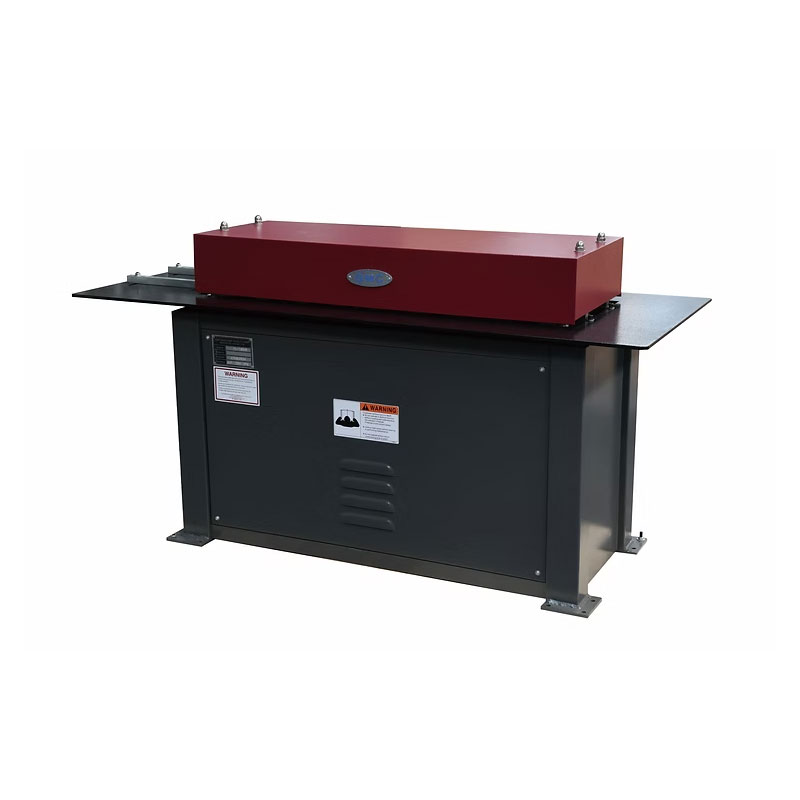

- Take your sheet metal work to the next level with the GMC Hemming Forming Machine, a reliable and versatile solution for professional fabricators. Designed for precision and durability, this machine is built to handle your hemming needs with ease, efficiency, and consistency.
- ISO 9001 certified
- 4HP Heavy Duty AC main motor, 220V, 3 phase
- Heavy welded all steel construction for maximum rigidity
- One side forms Flattened Hem
- One side forms Open Hem
- One year warranty for parts
STANDARD INCLUDED EQUIPMENT
- One set of 9 pairs rolls form Flattened Hem
- One set of 9 pairs rolls form Open Hem
OPTIONAL ITEMS – CALL FOR PRICE:
*One set of rolls form Teardrop and one set of rolls form Rope Hem
*Set of rolls for Pittsburgh lock and Double Seam, 2 in 1
*DCR-18HEM: Drive Cleat Roll
