Description

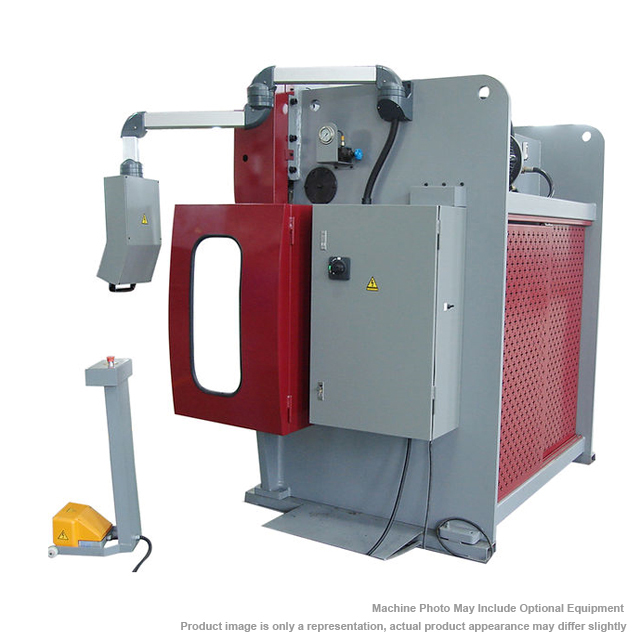

- Our GMC HPB-4504 is a 45 ton press brake with two axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it’s rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
- ISO 9001 certified
- Meet OSHA and CE safety standard

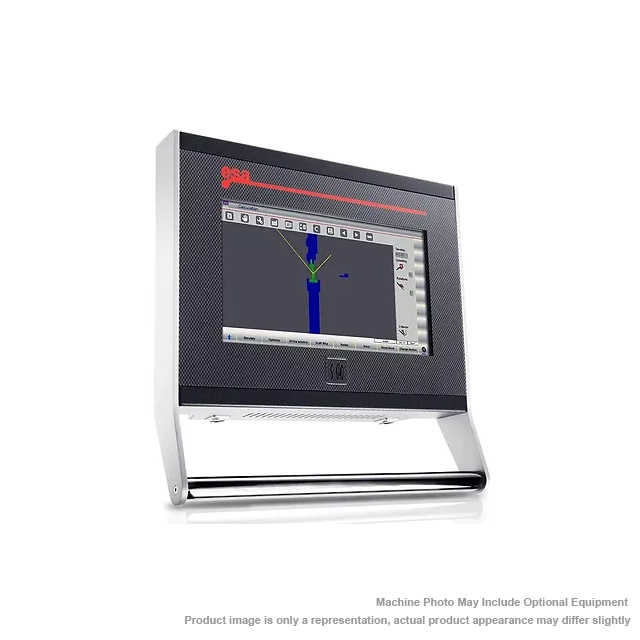

- ESA (Italy) Model 625, 2 Axis CNC Controller
- Die library, offline programming, stores thousands of programs
- Programmable Angle/ Angle Correct
- Germany Rexroth hydraulic system
- Yaskawa Servo motor and Drives
- Schneider electrical components
- Hydraulic crowning
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts
- DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported
STANDARD EQUIPMENT:
- ESA (Italy) Model 625, 2 Axis CNC Controller
- (2) 24” front support arms, Quick Release for easy positioning

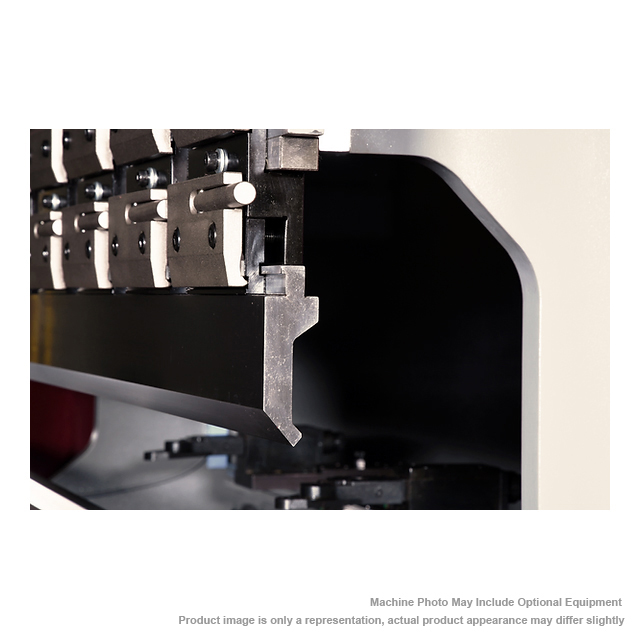

- Quick release segmented (American Style Tooling) punch holder

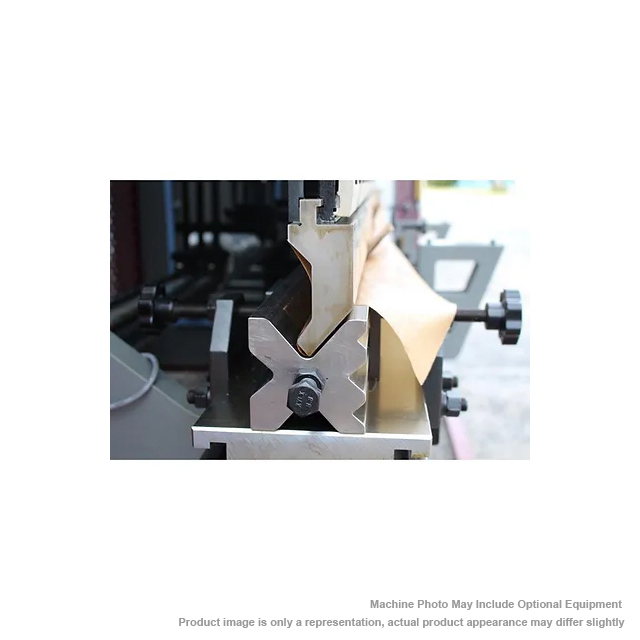

- Full Length Gooseneck Punch HRC 50 (Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts – Ask your dealer for custom tooling quotes)
- Full Length Vee Die with 6 assorted sizes HRC 50
- Lntech Light Curtain System
- Side and Back Safety Fence
- Movable Foot Pedal with Estop meet OSHA safety standard
SPECIFICATIONS:
Maximum pressure: 45 Tons
Bending length capacity: 59-1/4″ (4′ 1″)
Distance between uprights (housing): 33-1/2″
Ram Stroke travel: 6″
Cylinder travel adjustment, max: 2″
Table width: 6″
Distance between table and ram: 13″
Max Stacked Tooling Height: 8-1/2″
Throat Depth: 8-1/2″
Back Gauge Distance: 24″
Back Gauge Repeatability: .0039″
Y Axis Repeatability: .0039″
Approach speed, inch / second: 3.54″
Working speed , inch / second: 0.78″
Return speed , inch / second: 2.75″
Main motor: 5-1/2 HP, 3 Phase, 25 AMP, Prewired: 220VAC (+/- 10%)
Servo motor for back gauge: 1 HP, 3 Phase, 220VAC (+/- 10%)
Servo motor for bending angle setting: 1/2 HP, 3 Phase, 220VAC (+/- 10%)
Hydraulic oil tank capacity: 25 Gal.
Recommended Oil: Hydraulic Oil Shell #68HD
Machine weight: 6,150 lbs.
Machine size, L x W x H: 71 x 56 x 81 in.
Shipping dimensions: 79 x 63 x 89 in.
OPTIONAL ITEMS:
One day on-site training ……….. Call for pricing
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
