Description
SPECIFICATIONS
|
Coil Size
|
48 in. Wide
|
|
Coil ID
|
20 in.,
hydraulic clamping range from 18-1/2 to 20-3/4 in. |
|
Max Coil OD
|
39 in.
|
|
Speed
|
0-100 ft/min.
|
|
Hydraulic system pressure
|
0-15Mpa
|
|
Main motor
|
4HP, 220V only, 3-phase
|
|
Hydraulic motor
|
4HP, 220V, 3-phase
|
|
Hydraulic tank capacity
|
10 gal
|
|
Machine Net Weight
|
5,220 lbs.
|
|
Machine shipping weight
|
5,810 lbs.
|
|
Machine Dimensions
|
122 x 73 x 78 in.
|
|
Packing dimensions
|
126 x 71 x 85 in.
|
FEATURES

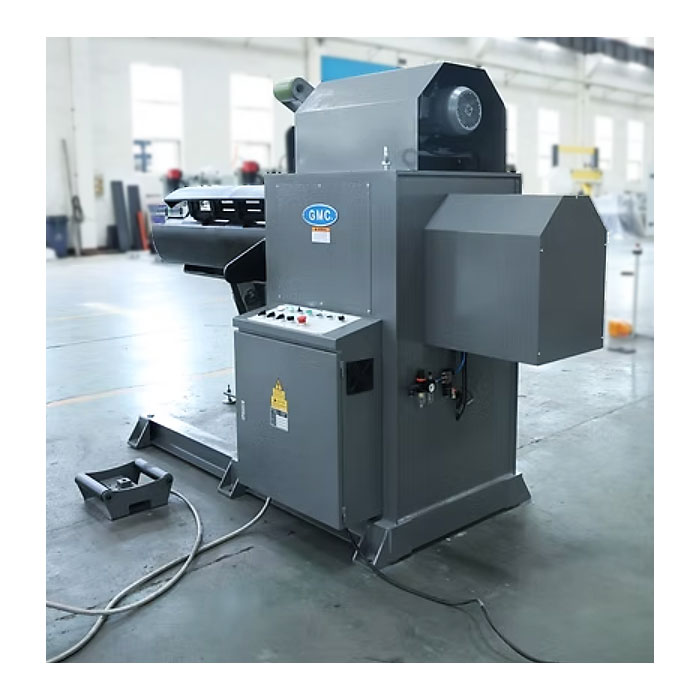

- 3-Ton Hydraulic Decoiler Machine for metal coil handling. Delivers fast, precise uncoiling—perfect for roll forming, stamping, and cutting lines.
- ISO 9001 certified
- American design and Taiwan quality machine
- Hydraulic clamping for coil
- With sensors to avoid the sheet metal touches the floor.
- Hydraulic front support arm
- Hydraulic top support arm
- One year warranty for parts
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
