Description

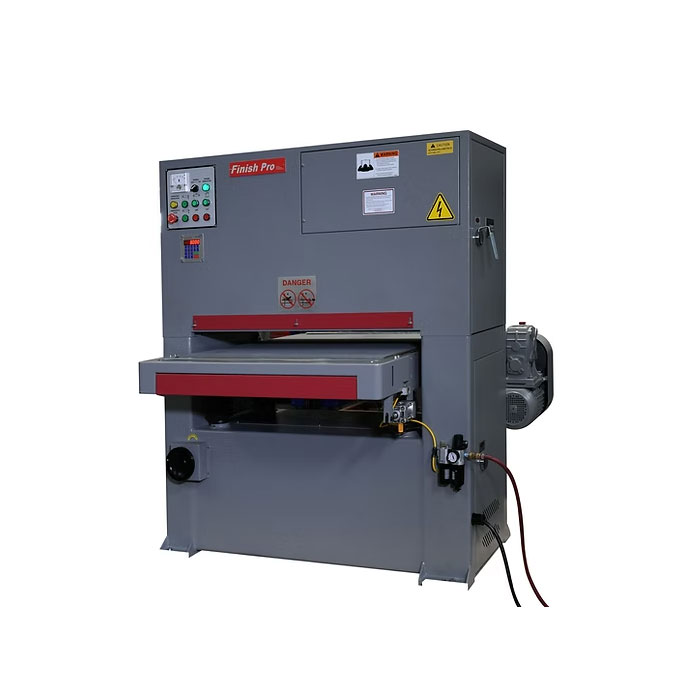

- Finish Pro Model FP-2560T Dry Line Graining/Deburring/Finishing machine. 5-1/8 inch opening.
- Made in Taiwan

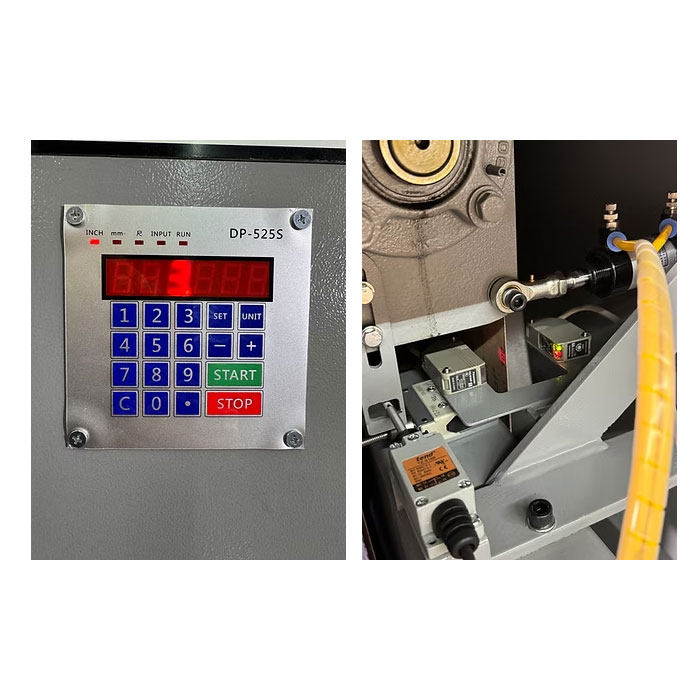

- Computerized programmable material thickness control
- Motorized Table Lift, with digital readout

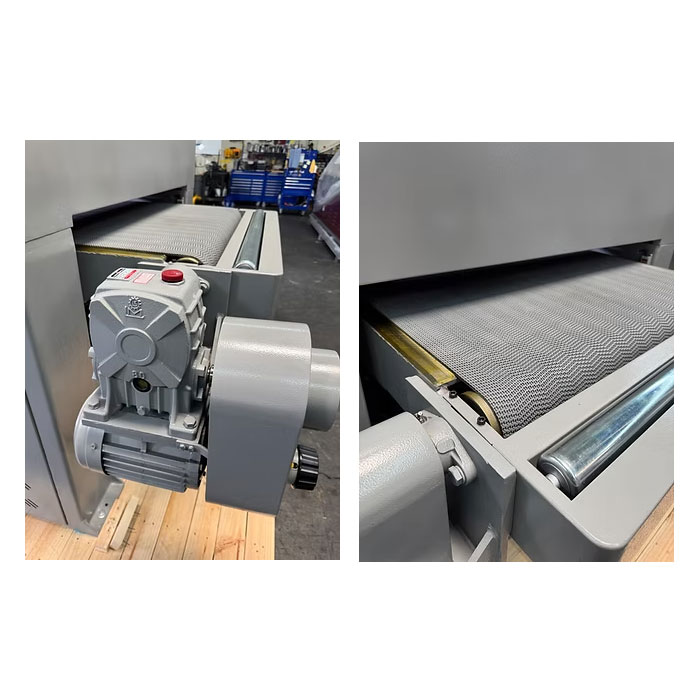

- Variable Speed Conveyor
- Conveyor Forward & Reverse
- Belt Safety Overtravel Switches

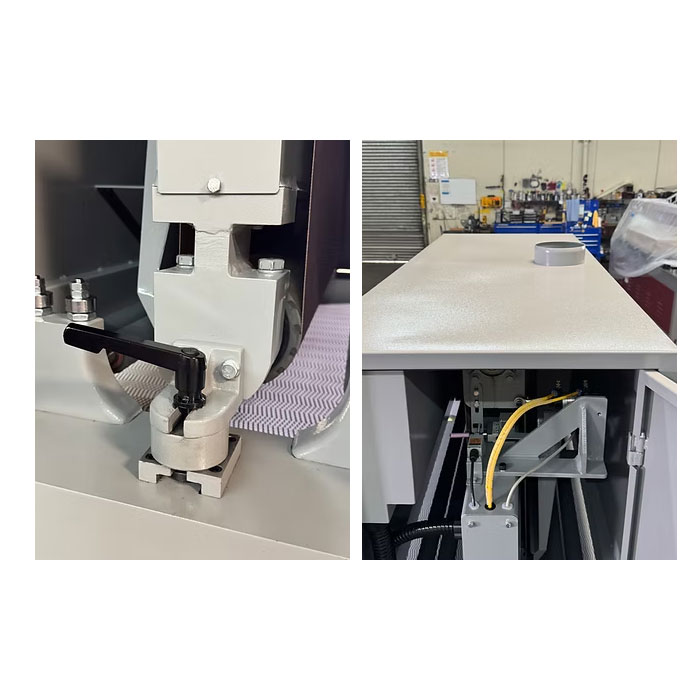

- Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts
- 4-Jackscrew Table Support
- Double Infeed & Outfeed Pinch Rolls with protective guards
- Conveyor Belt Tracking System
- Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

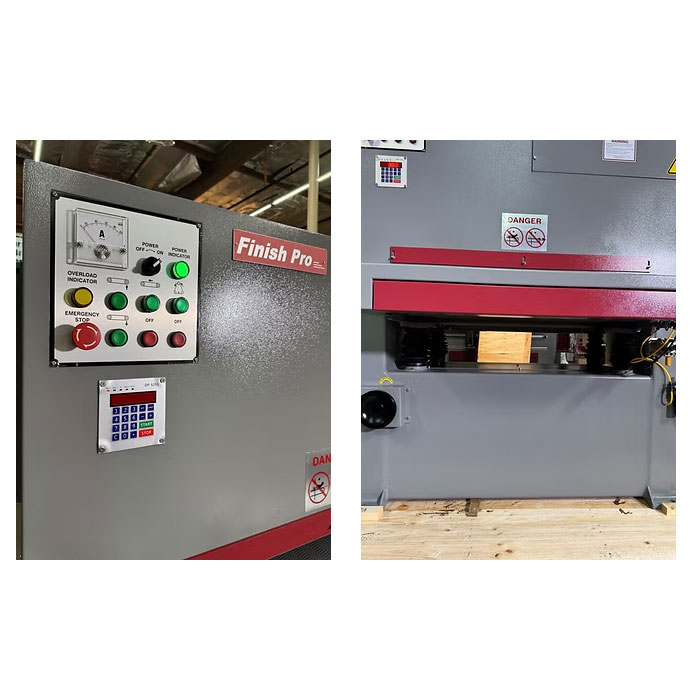

- Table Height Digital Readout
- Load Meter indicates percentage of full motor loads
- Belt change door electrically interlocked for safety purpose
- Air tensioning of belt for accurate tensioning & compensation of belt stretch

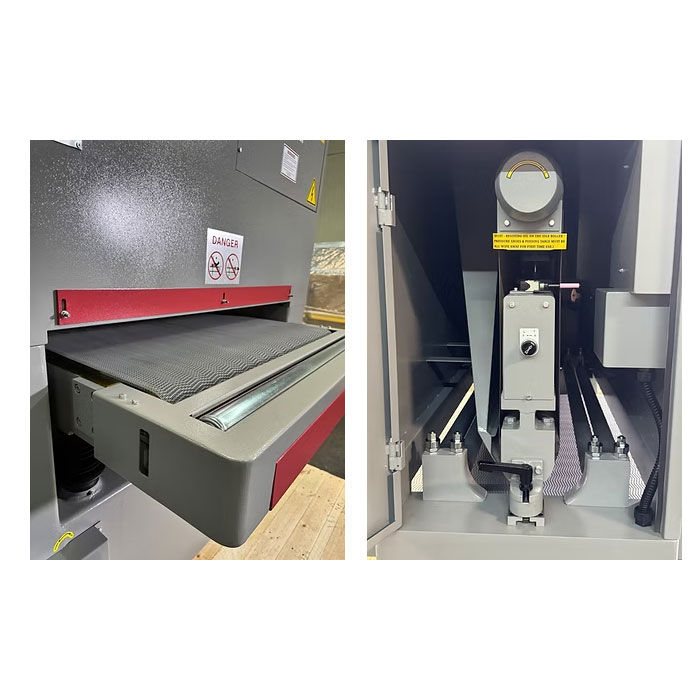

- Quick release sanding head support for fast belt change
- Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area
- Emergency stops from almost any point
- Noise level bellows 80 dba
- Operation manual, control tags, danger signs, and warning labels in English on machine
- 208/230, 3-Phase, 440V/480V ,3phase is optional
- One year Industrial Warranty for parts
- We strongly recommend to use good dust collector for our Finish Pro, otherwise, the warranty will be void.
- NOTE:
- Prices are for 208-230 VOLTS
- Total amps 45 @ 230/3/60
- COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
- CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
- **This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
SPECIFICATIONS:
|
Max. Part Width
|
24 in.
|
|
Abrasive Belt Size
|
25 x 60 in.
|
|
Contact Roller Size
|
5 in. Dia.
|
|
Passline Height
|
31-37 in.
|
|
Thickness Capacity
|
20Ga to max. 5-1/8 in.
|
|
Min. workpiece length
|
Min 12 in., need a fixture for smaller parts
|
|
Max. workpiece weight
|
275 lbs.
|
|
Conveyor Drive Speeds
|
16-66 FPM
|
|
Infeed Conveyor Length
|
20 in.
|
|
Dust Collector Capacity
|
1,100 CFM
|
|
Outlet of dust hood
|
6 in.
|
|
Main Motor
|
10 HP, 208/230v, 3-ph (optional 408/440v) specify
|
|
Conveyor Motor
|
1 HP, 230v, 3-Ph
|
|
Table Lifting Motor
|
1/4 HP, 230v, 3-Ph
|
|
Amperage Draw
|
45A on 220V, 25A on 440V
|
|
Net Weight, approx.
|
2,050 lbs
|
|
Shipping Weight
|
2,150 lbs.
|
|
Machine Dimensions LxWxH
|
51 x 46 x 70 in.
|
|
Machine Shipping Dimensions LWH
|
53 x 48 x 73 in.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
OPTIONAL ITEMS:
WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by raking into a provided container. Normal tap water is used, there are not filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer.
- WDC-2100 – Wet Dust Collector, 5 HP, 2100CFM (it is demo wet collector, all stainless steel): $10,950.00
- HDDP-2560 – Heavy Duty Ducting Package: $1,290.00
