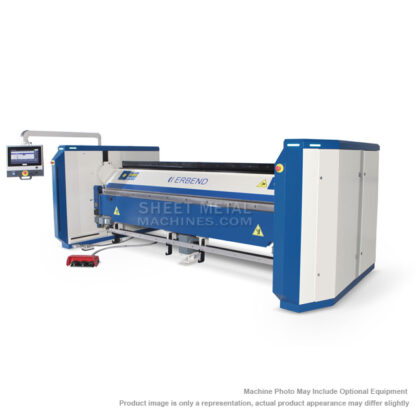

Description

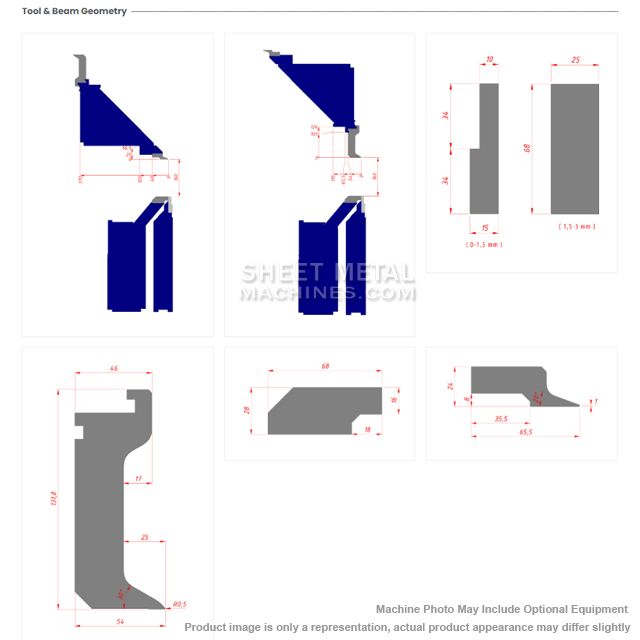

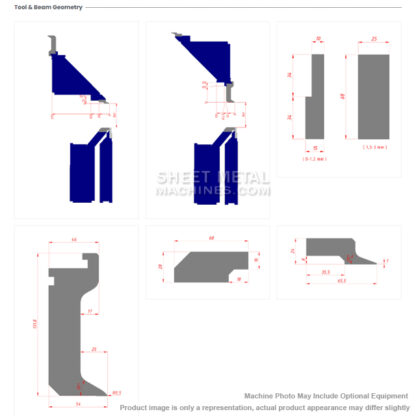

- 7.87 inch opening height capacity on 180° rotating clamping beam with 2 tool stations as 3.93 inch high segmented goat foot tool and 20° single piece sharpnose tool.
- Eccentric upper beam power transmission system for rapid clamping/unclamping.
- Manual folding beam adjustment.
- 39.37 inch servo backgauge system with feather grooves.
- 0.39 and 0.98 inch wide single piece folding tools as 2 sets.
- ERFOLD BASIC CNC LBL Cnc control software on 15.6″ touchscreen controller with swivel arm.
- Solid lower beam tool without channels.
- Front light barriers.
SPECIFICATIONS:
|
MODEL
|
MFD 3220
|
|
|
Sheet Length
|
126 in. (10.5 ft)
|
|
|
Capacity
|
Steel
|
0.078 in.
|
|
Stainless
|
0.047 in.
|
|
|
Aluminum
|
0.118 in.
|
|
|
Dimensions
|
175 x 87 x 75 in.
|
|
|
Weight
|
10,141 lbs.
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
OPTIONAL ITEMS – CALL FOR PRICE:
- 59 inch servo backgauge system with rectangular sheet support table.
- 98.42 / 126 / 165.35 inch servo backgauge system upgrade with L / T / U shape sheet support table options.
- ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
- Servo folding beam height adjustment.
- Omega geometry upgrade on lower and folding beam.
- Manual conical backgauge finger.
- Motorized conical backgauge system.
- Pneumatic goat foot tool quick clamping system.
- Manual crowning system.
