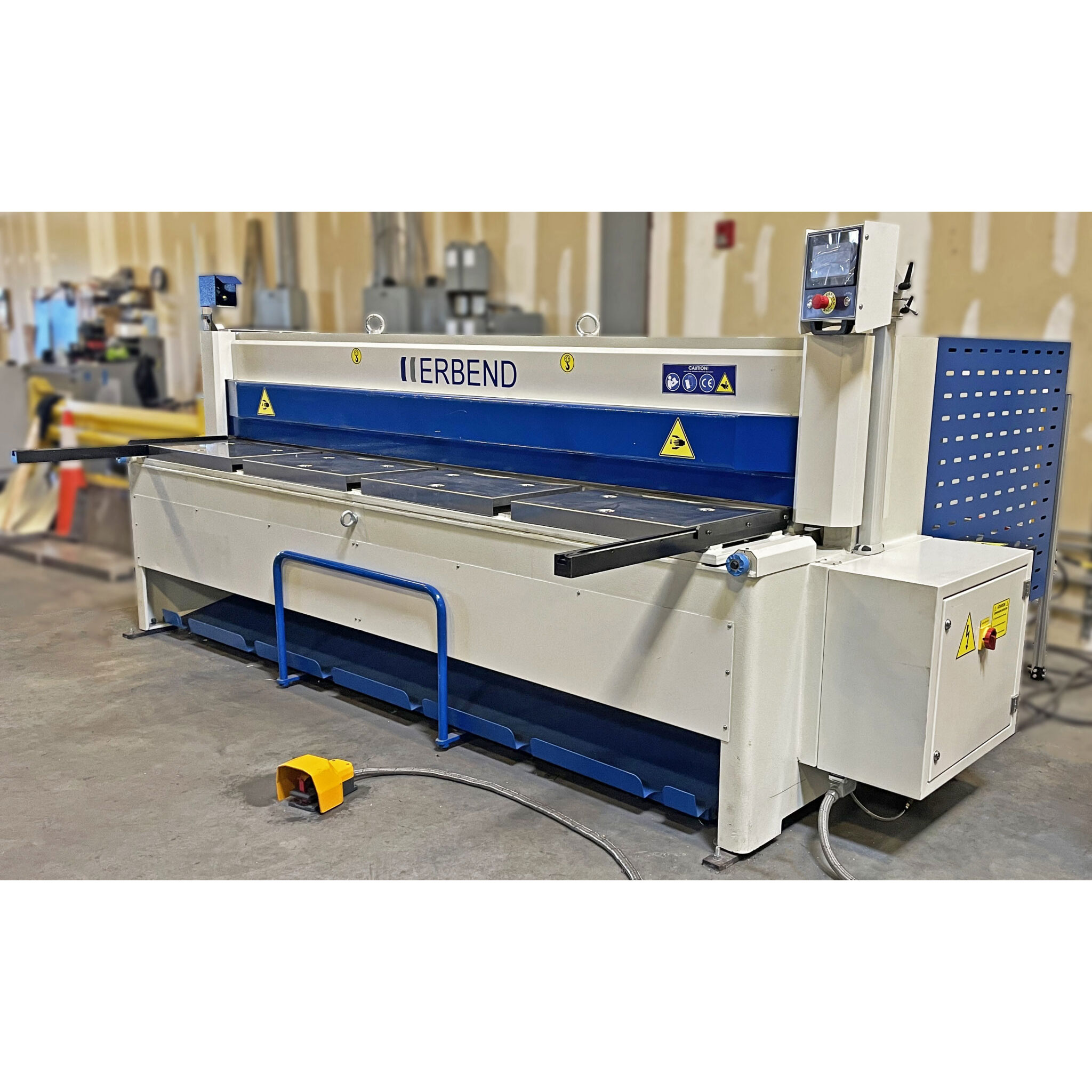

Pre-Owned ERBEND EMS 3240 10 ft x 9 ga. NC Motorized Shear

Description

FEATURES

• FOB Baltimore, MD Warehouse
• Excellent Condition
• Can be Seen Under Power
• New Replacement Cost: $65,950.00

SPECIFICATIONS

STANDARD FEATURES:

• • • 750mm Servo motorized backgauge system
      • 700W servo drive and motor with +/- 0,1 mm accuracy
      • 32/32 thread ballscrew system with +/- 0,05 mm accuracy

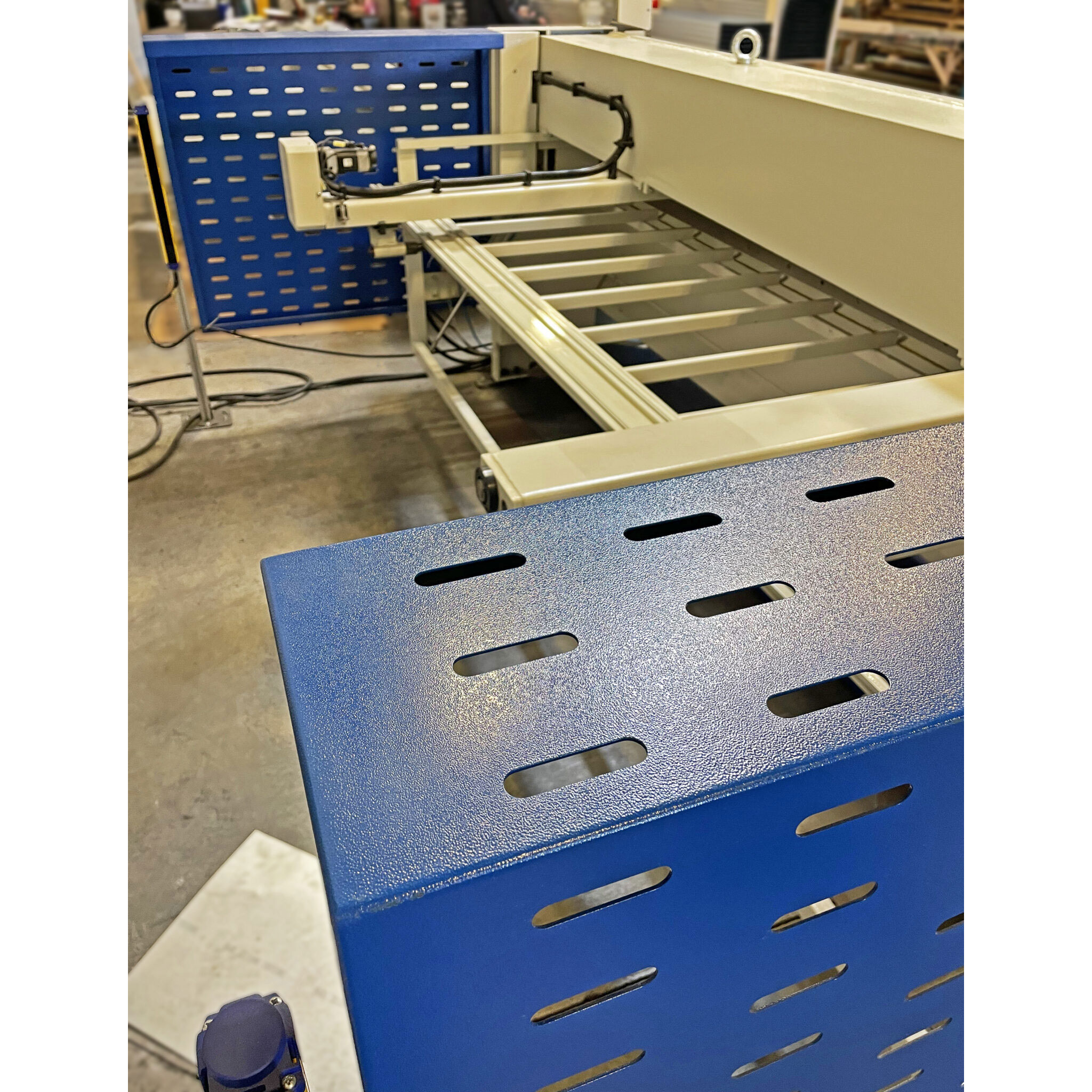

      • Aluminium sigma profile sheet support
      • One fixed, one movable, full body protective, vertical light barriers
      • Side fences to avoid unwanted interventions
    • ELGO P40T/002 Touch-screen NC control system:
      • TFT display with touchscreen
      • Program memory up to 1,000 steps and 10 operation modes
      • Manual function
      • Single set operation
      • Digital outputs up to 2A
      • Analog outputs
      • Material depending gap, angle and pressure calculation
      • Automatic cut
      • Sheet support
      • Sheet return
      • 24VDC input
      • IP43 front and IP00 rear protection class
    • Friction free guillotine blade geometry and dual sided blades
      • Thanks to the curved machined blade geometry, blades never touch eachother which sustains a much more longer blade life without sacrificing cutting presicion.
      • Both sides of the blades can be used by switching easily
      • Manual blade gap adjustment
    • Spring loaded hold-down bar and polyurethane material clamping surface
      • Thanks to the spring load, the sheet is clamped and fixed with an ideal pressure for cutting
      • With the polyurethane touching surface, your material is never scratched
    • Fixed Side Squaring Gauge and Stainless Feeding Table with Rulers on Each 500 mm (19.69″) Length
    • Retractable front sheet support bar
      • From the cutting line to the edge, it is able to support max 930 mm long sheets
      • Smooth and light movement only by pulling from the middle
      • LED Illumination of cutting area and cutting line
