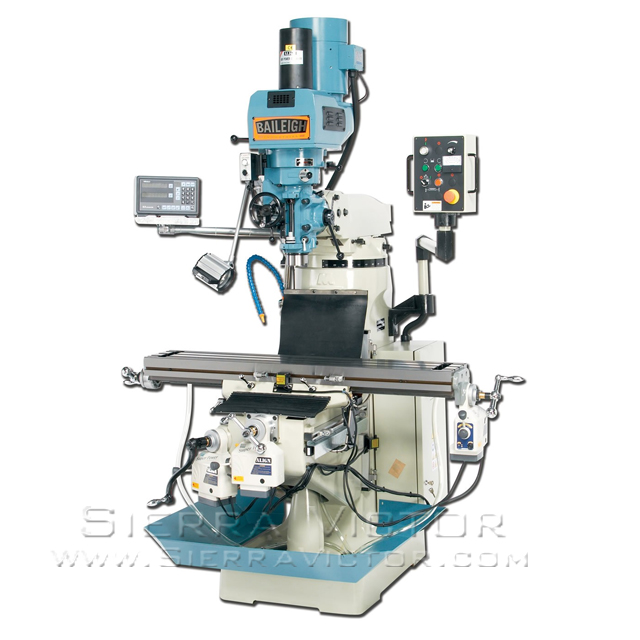

BAILEIGH Vertical Milling Machine VM-949-3

$22,919.00

SKU: BA9-1008236 Category:
Baileigh Industrial

Description

BAILEIGH Vertical Milling Machine VM-949-3

  • When looking for a conventional style knee milling machine, Baileigh Industrial leads the pack in both quality and standard features. Baileigh Industrial’s VM-949 milling machine is no exception and is great for any small to medium size machine shop or fabrication shop. Like all Baileigh machines, it’s packed with tons of standard features that are options on most other brands.
  • The VM-949 is fully variable speed through the use of a Yaskawa inverter drives. Speeds are adjustable from 60 to 4200 rpm. Adjustable spindle speeds help prolong tooling life as well as allows some applications that cannot be done on a standard drill press, such as thermal friction drilling. The VM-949 is available in two different voltages, 220 volt single and three phase, these variances allow the VM-949 to be used in almost any shop.
  • Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame work out of. The stronger you make the platform the better the cutting is. This is not the place to use an inferior process. To make the VM-949 milling machine even stronger, a NST 40 spindle is standard. This type spindle is stronger and give the operator a choice of larger tooling should the need arise.
  • Operation of the VM-949 could not be easier as this milling machine has powered X, Y and Z axis. The X and Y axis utilizes a Mitutoyo DRO- digital read out for positioning down to 1/10 of a thousandth of an inch. Other standard features of the VM-949 milling machine include an air draw bar, coolant system with catch tray.

ITEM: 49″ X 9″ variable speed three phase mill

MANUFACTURER: BAILEIGH

MODEL: BA9-1008236

Item/Model: BAILEIGH BA9-1008236%0A%0AFreight Price is:%0A%0AAvailability is:%0A”>

Additional information

Weight 2200 lbs

Brand

Baileigh

From our versatile ironworkers to our easily-programmable plasma tables, Baileigh equipment lets you shape metal with precision and efficiency. Baileigh Industrial builds cutting-edge designs using only the best parts and materials to handle maximum capacities with ease. For over 21 years, Baileigh has created machines that increase productivity, day in, day out, delivering repeatable quality results.
