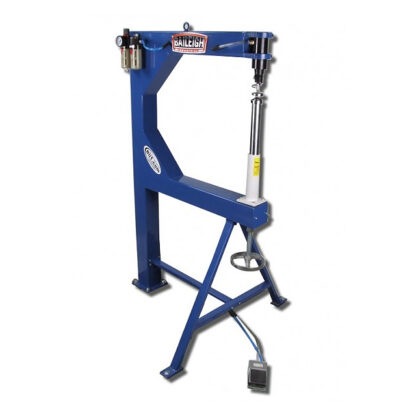

BAILEIGH PH-24A 16 Ga. Planishing Hammer

$1,359.00

This air-powered planishing hammer can transform wrinkled or dented metal into smooth finished products.
A great value, the PH-24A can also do light metal shaping on soft materials.
24” throat depth. 16 gauge mild steel capacity for finishing.
Lands 4,600 beats per minute. Requires 90-120 psi to operate.

SKU: BA9-1005948 Categories: , Tags: ,
Baileigh Industrial

Description

  • This air-powered planishing hammer can transform wrinkled or dented metal into smooth finished products. A great value, the PH-24A can also do light metal shaping on soft materials.
  • 24” throat depth.
  • 16 gauge mild steel capacity for finishing.
  • Lands 4,600 beats per minute.
  • Requires 90-120 psi to operate.
  • You can adjust the material opening with the handwheel at the bottom.
  • Foot pedal control leaves your hands free.

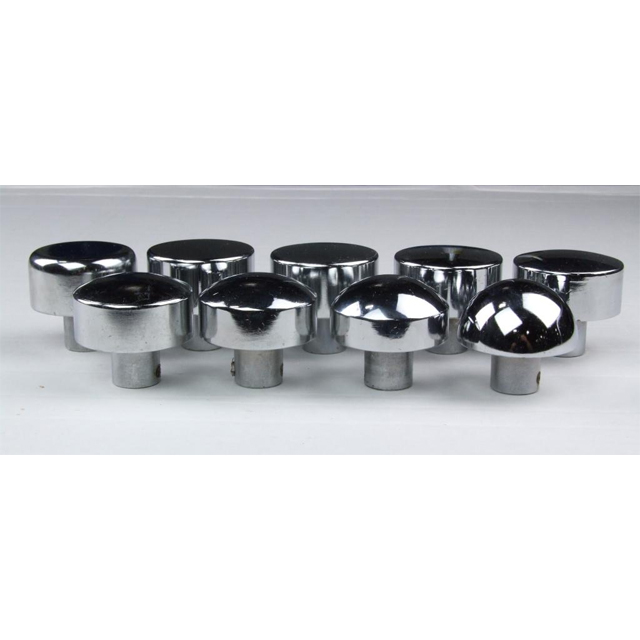

  • Comes standard with 9 radius dies: flat, 3/4”, 1-1/2”, 2”, 3”, 4”, 6”, 8”, and 12”.
  • 4” x 4” fully-welded frame keeps the machine stable so that force is transferred directly to the material.
  • Stainless steel main shaft helps the machine last longer.
  • Fill the frame with sand to reduce noise and vibration. We’ve made it easy to pour sand into the frame through 2 holes covered with removable plates.

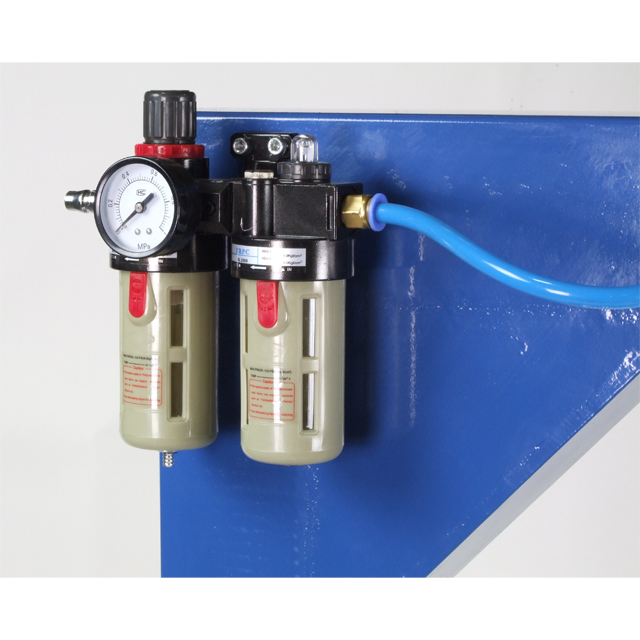

  • Automatic oiler keeps your machine running smoothly.
  • We offer an optional dog-leg brace for tight radii applications.
  • Covered by a 1-year parts warranty plus lifetime technical support by phone.

SPECIFICATIONS:
Capacity Mild Steel: 16 ga
Capacity Aluminum: 14 ga
Throat Depth: 24″
Tooling Height Adjustment: 1-1/2″
Bead Rolls: .75″, 1.5″
Power Requirement: 15 – 120 Psi.
Shipping Dimensions: 69″ x 44″ x 20″
Shipping Weight: 175 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Additional information

Weight 175 lbs
Dimensions 69 × 44 × 20 in

Brand

Baileigh

From our versatile ironworkers to our easily-programmable plasma tables, Baileigh equipment lets you shape metal with precision and efficiency. Baileigh Industrial builds cutting-edge designs using only the best parts and materials to handle maximum capacities with ease. For over 21 years, Baileigh has created machines that increase productivity, day in, day out, delivering repeatable quality results.
