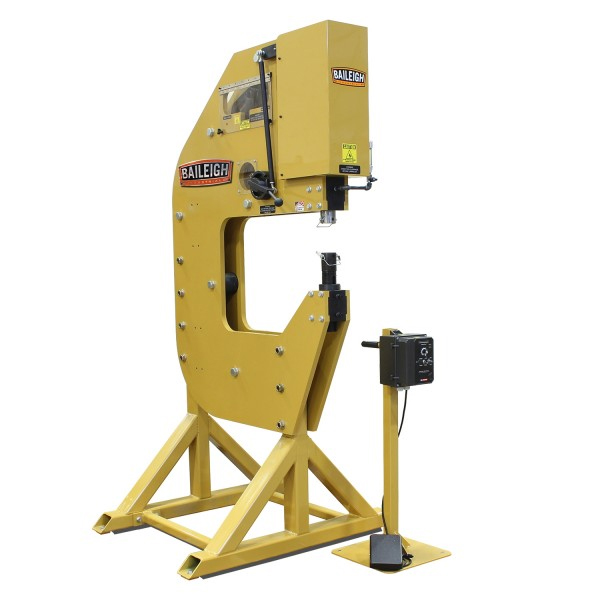

BAILEIGH PH-28HD-VS 14 Ga. Power Hammer

$20,759.00

The PH-28HD-VS power hammer can hit harder and move metal faster than most hammers its size. This USA-made machine lets you shape multiple sheets at once, then planish them out.
28” throat with deep cutout designed for fenders.
Large 14 gauge mild steel capacity.

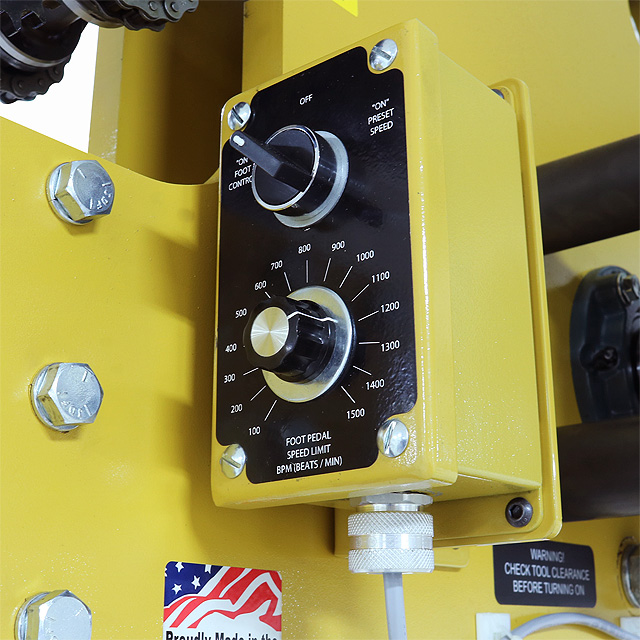

Variable speed from 0 to 1,000 beats per minute.
3 hp motor runs on 220-volt single-phase power.

SKU: BA9-PH28HD Categories: , Tags: ,
Baileigh Industrial

Description

  • The PH-28HD-VS power hammer can hit harder and move metal faster than most hammers its size. This USA-made machine lets you shape multiple sheets at once, then planish them out.
  • 28” throat with deep cutout designed for fenders.
  • Large 14 gauge mild steel capacity.
  • Variable speed from 0 to 1,000 beats per minute.
  • 3 hp motor runs on 220-volt single-phase power.
  • Developed over 20 years of research to find what’s most important to metal shapers.
  • Hits up to 75% harder than its predecessor, the MH-19.
  • Incorporates Dupont linkage (also used on our massive MH-37HD) to shape heavier gauges of steel.

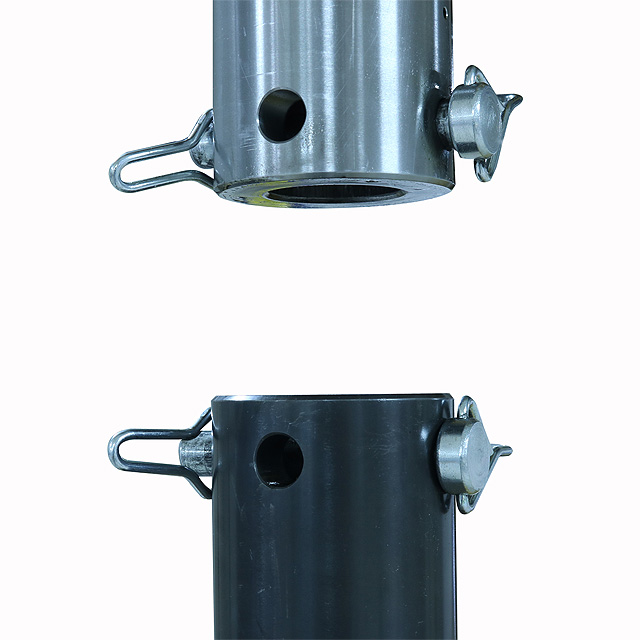

  • Quick-release design lets you get the tooling out of the way to add or remove your panel.

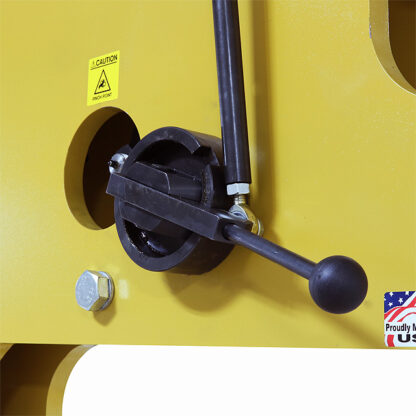

  • Switch between 3 fixed stroke settings on the fly: ¼”, ½”, ¾”.
  • Adjust the lower ram up or down via a large acme thread, so you won’t need to shim if different tool thicknesses are required.
  • Simple, proven mechanism uses easily replaceable, off-the-shelf die springs.

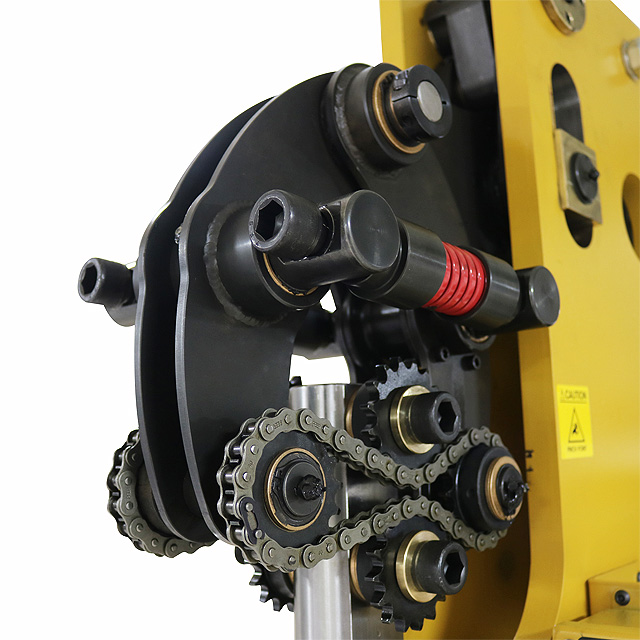

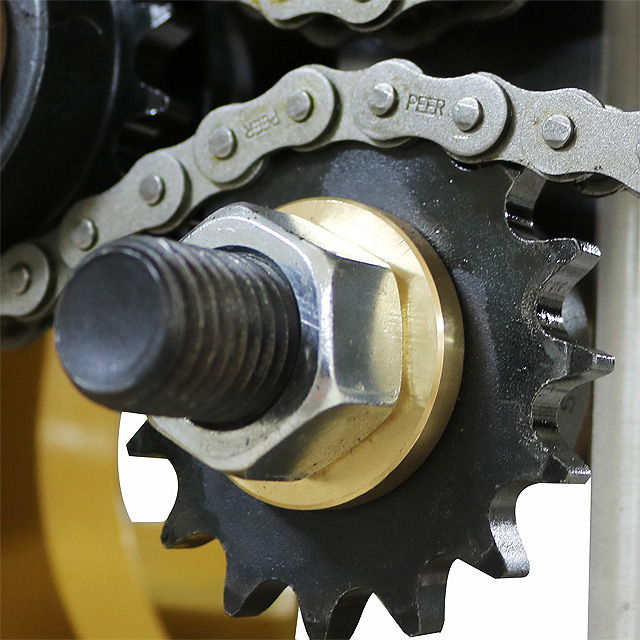

  • Floating chain and sprocket setup eliminates the leather strap commonly found on legacy hammers.
  • You can add an optional planishing hammer attachment to the side of this power hammer.
  • Rigid 1” plate steel frame ensures high-quality, controllable shaping force and won’t buckle under the heavy hits.
  • Portable pedestal raises the working height and allows better visibility of the hit mark.
  • Covered by a 1-year parts warranty.
  • Our team of experienced metal shapers is here to provide lifetime technical support by phone.
  • Recommended for: Automotive shops that need to shape metal quickly and often work on fenders.

SPECIFICATIONS:
Country of Manufacture: United States
Motor Hp: 3
Speed: 0 – 1000 beats / min (Variable)
Mild Steel Capacity: 14 ga.
Tooling Height Adjustment: 2″
Throat Depth: 28″
Working Height: 62.5″
Aluminum Capacity: 10 ga
Length Of Stroke Adj: 3 Fixed Lengths: 1/4″, 1/2″, 3/4″
Power: 220V / 1-phase
Shipping Dimensions: 60″ x 50″ x 98″
Shipping Weight: 2,000 lbs.
*Optional Tooling: Some applications may require optional tooling. Please contact Sierra Victor Industries 386-304-3720 with specific application details.
Special Notes: *Does Not Include Tooling, Uses Same Tooling as MH-19. Please consult Sierra Victor Industries 386-304-3720 for proper tooling.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Additional information

Weight 2000 lbs
Dimensions 60 × 50 × 98 in
