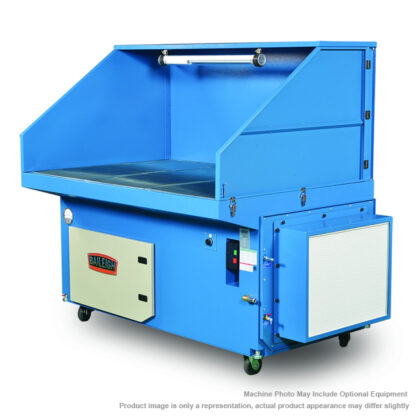

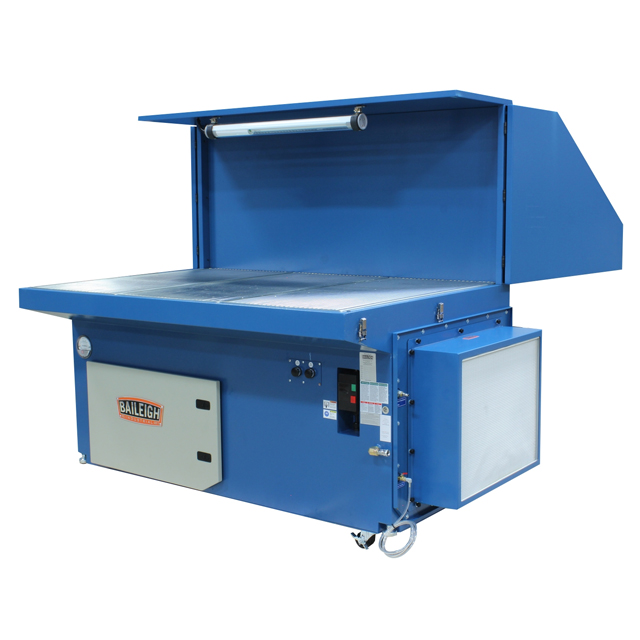

BAILEIGH DDTM-8052-HD 2,340cfm 6.5×4 ft Heavy Duty Downdraft Table

$16,179.00

Downdraft tables are becoming more popular with all of the air quality regulations that are now in place. The Heavy Duty Downdraft Table DDTM-8052-HD is the perfect table for large manufacturing facility has a need for a clean production. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air. The DDTM-8052-HD has a list of features that make it one of the best tables on the market.
78″ x 52″ Working area

SKU: BA9-1017590 Category: Tag:
Baileigh Industrial

Description

  • Downdraft tables are becoming more popular with all of the air quality regulations that are now in place. The Heavy Duty Downdraft Table DDTM-8052-HD is the perfect table for large manufacturing facility has a need for a clean production. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air. The DDTM-8052-HD has a list of features that make it one of the best tables on the market.
  • 78″ x 52″ Working area
  • Standard equipment included: HEPA filter, fire resistant cartridge filter, spark arresting metallic pre-filter, magnehelic gauge, hinged side walls w/ back wall, work light, auxiliary 110V and air tool outlets, 12” overhang, casters and leveling feet. These are all options other companies charge for, but come standard with Baileigh
  • CSA us listed

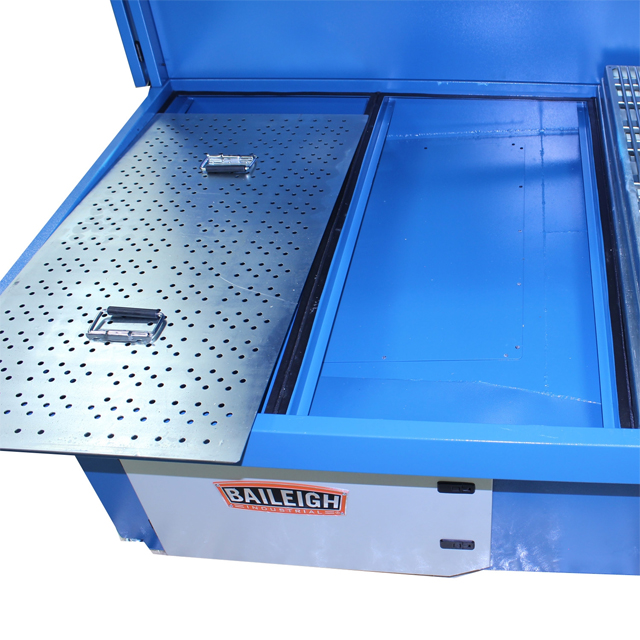

  • 100% Tool free cleaning and filter maintenance/changes

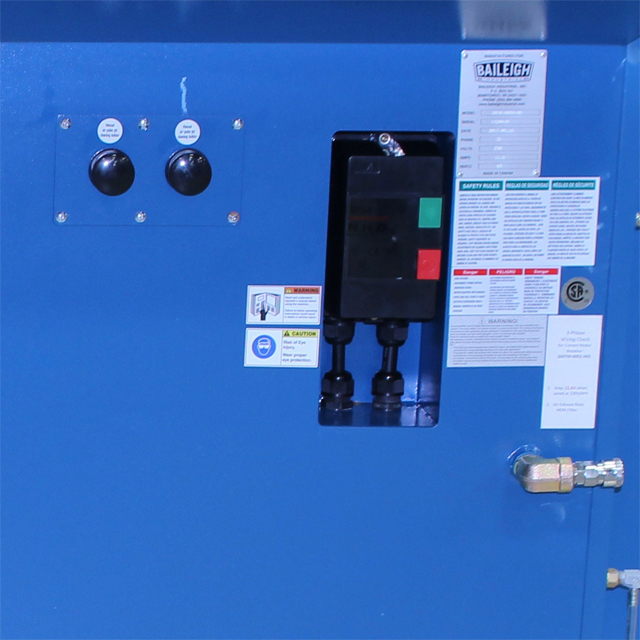

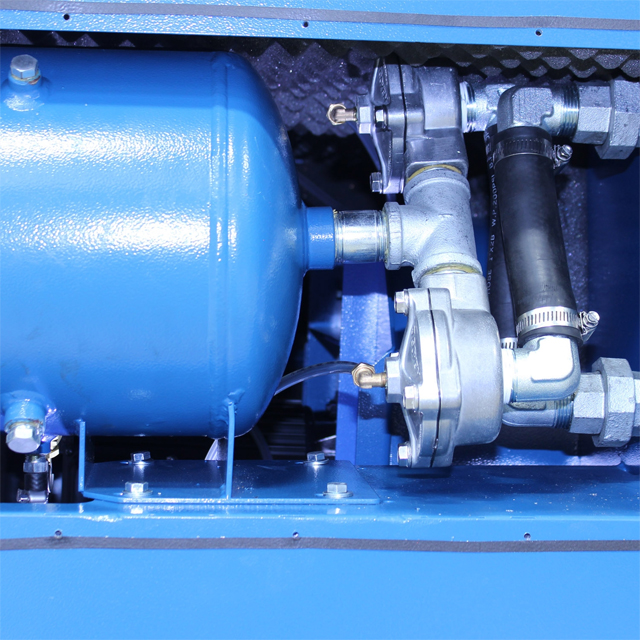

  • Air pulse cleaning – When flow is restricted, simply shut the machine off, and press the air pulse button (requires 60-90psi air connection). An internal air tank automatically backflushes the cartridge filter, knocking off accumulated dust and debris (he debris falls into a removable pan for easy cleanout). The table can now be turned on and work resumed
  • Safety – Under OSHA decibel limit (hearing protection not required). HEPA filter is now required by OSHA for equipment that vents back into occupied space (HEPA is standard on these models)
  • Fully Assembled – Simply uncrate, wire, and begin use
  • Table Load Capacity:
    • Maximum 1764lbs (800kgs) Evenly distributed over 80% – 100% of table surface. Concentrated Contact Surface Contact Weight
    • 10% 221 lbs (100gs)
    • 20% 441 lbs (200kgs)
    • 30% 661 lbs (300kgs)
    • 40% 882 lbs (400kgs)
    • 50% 1,102 lbs (500kgs)
    • 60% 1,323 lbs (600kgs)
    • 70% 1,543 lbs (700kgs)
    • 80% 1,764 lbs (800kgs)

SPECIFICATIONS:
Working Table Size: 78″ x 52″
CFM: 2340 at base

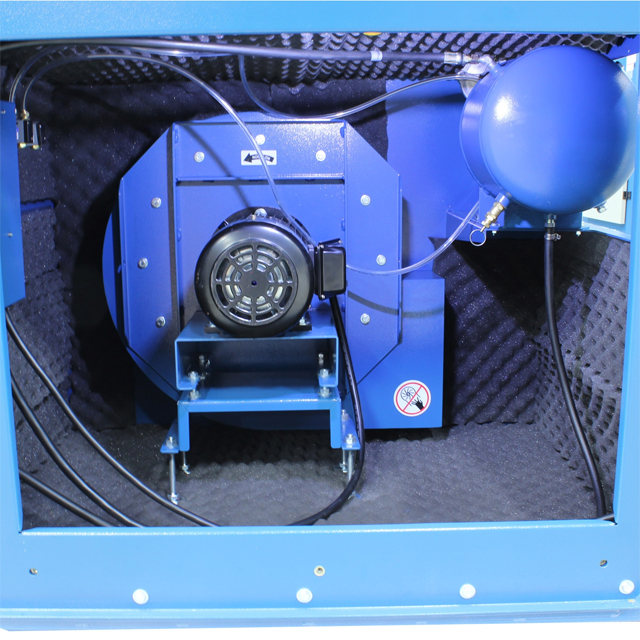

Motor: 5 HP

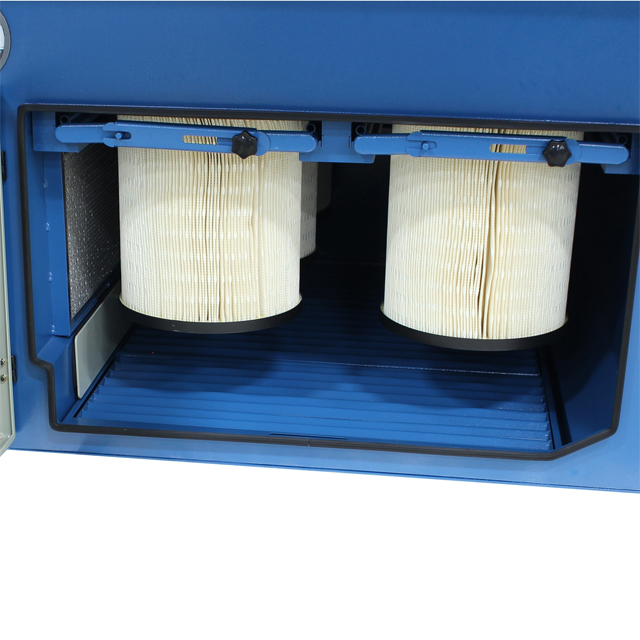

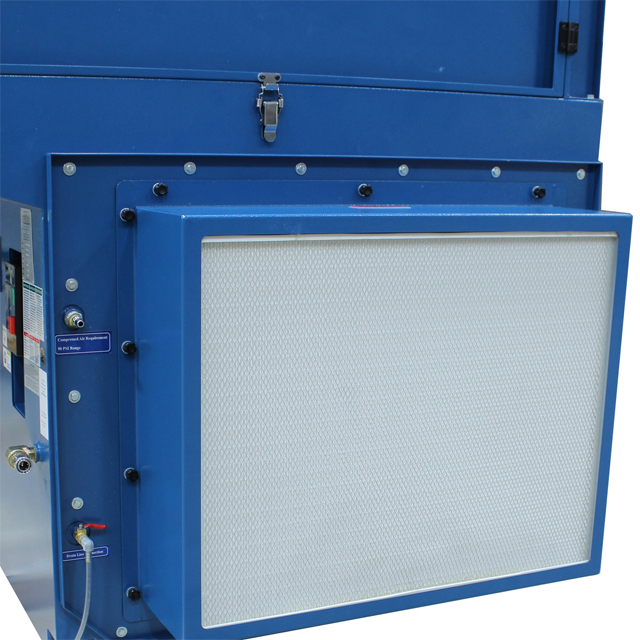

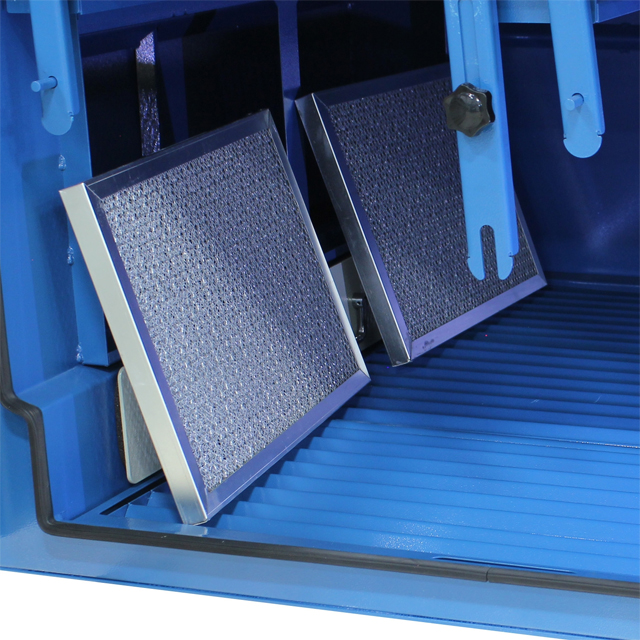

Filter Type: Three Stage (Aluminum x 2, Teflon Cartridge x 6, HEPA)
Number of Filters: 9

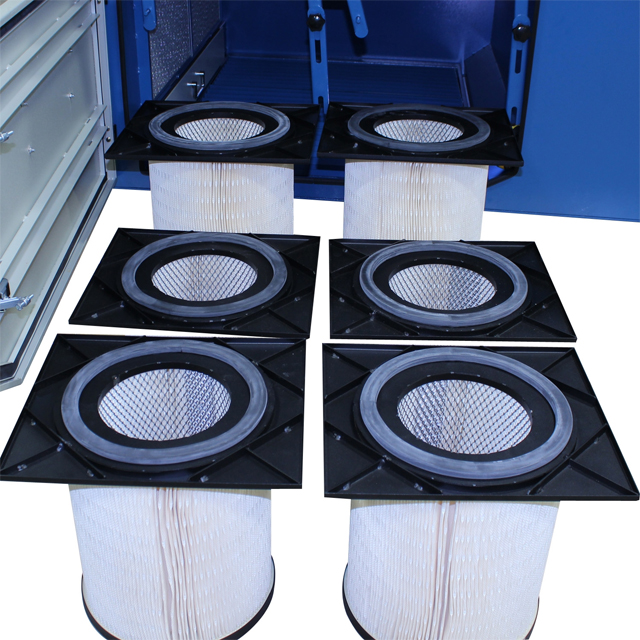

Filter Size: Aluminum x 2 – 11.3″ x 23.8″ x 0.86″, Cartridge x 6 – Ø11.25″ x 13″L, HEPA – 18″ x 20″ x 5.9″
Power: 230V 3ph
Shipping Dimensions (L/W/H): 92″ x 58″ x 80″
Shipping Weight: 1,650 lbs

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Additional information

Weight 1650 lbs
Dimensions 92 × 58 × 80 in
